Floor Console

REMOVAL
1. Remove the floor console. For additional information, Refer to Console.

2. Remove the duct.

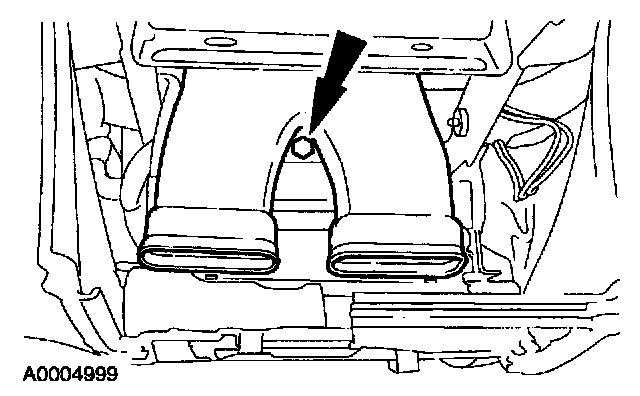

3. Remove the screw and remove the front portion of the duct.

INSTALLATION
1. To install, reverse the removal procedure.
