Brake Lamp: Service and Repair

REMOVAL

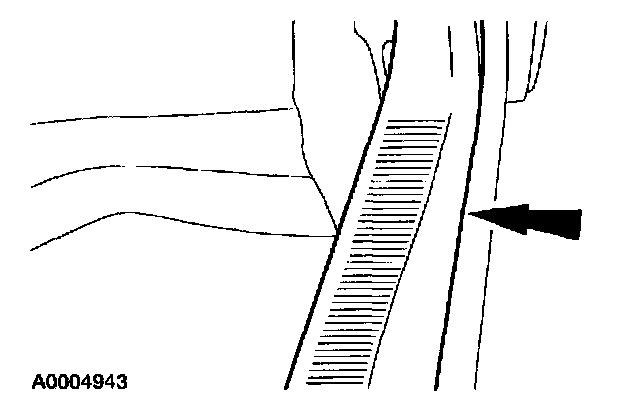

1. Remove the luggage compartment scuff plate.
^ Pull to unsnap.

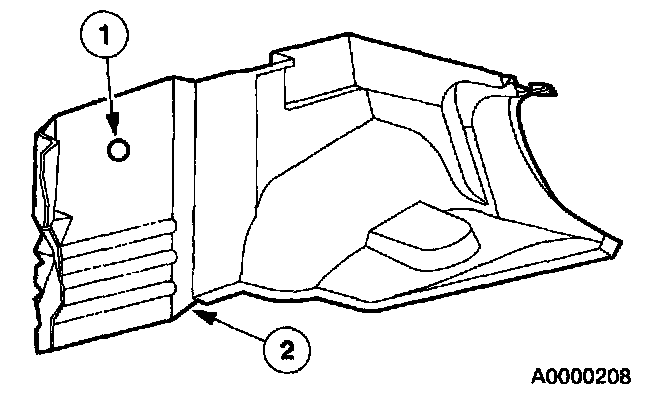

2. Position the luggage compartment side trim panel aside.
1 Remove the pin-type retainers.
2 Position the luggage compartment side trim panel aside.







3. Remove the stoplamp assembly.
1 Disconnect the electrical connector.
2 Remove the three nuts.
3 Push the rubber grommet through the sheet metal and remove the stoplamp assembly.
^ If necessary, install new bulbs.

INSTALLATION
1. To install, reverse the removal procedure.
