Coolant Line/Hose: Service and Repair

Removal
1. Drain the engine cooling system.
2. Remove the air cleaner outlet tube.

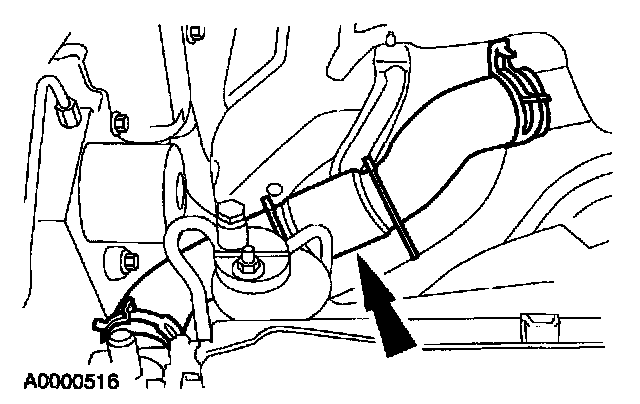

3. Remove the upper radiator hose.

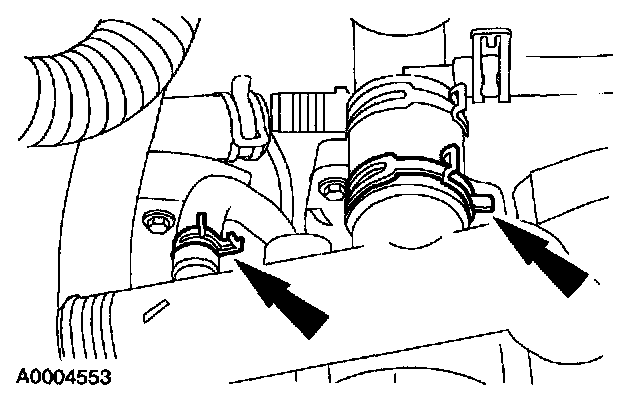

4. Disconnect the hoses.





5. Note: Lower radiator hose not shown for illustration purposes.

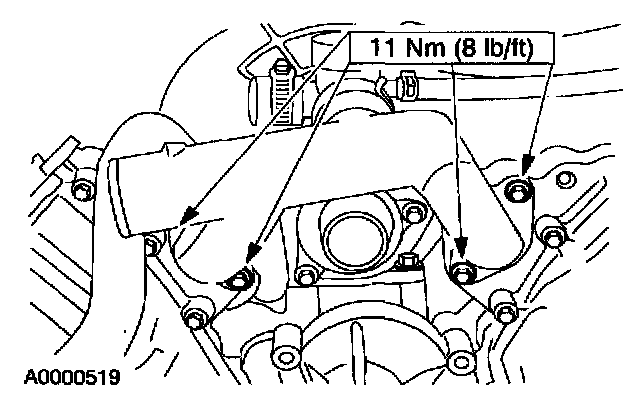

Remove the four bolts.

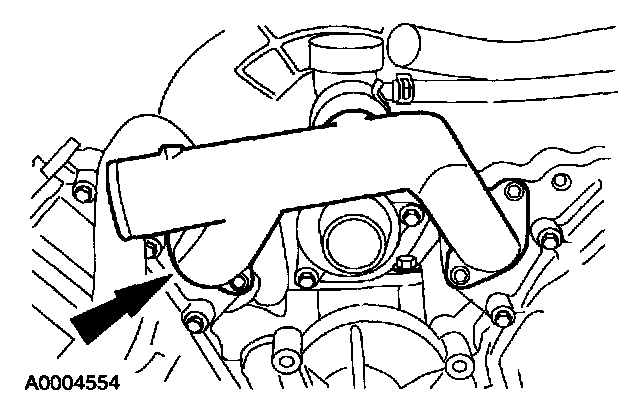

6. Remove the coolant outlet pipe.





7. Note: Lower radiator hose not shown for illustration purposes.

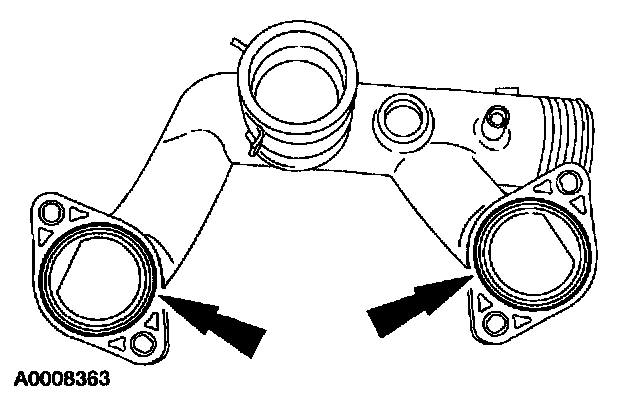

Remove the O-ring seals, inspect and clean the sealing surfaces.

Installation
1. To install, reverse the removal procedure.
