EGR Tube: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the cabin air filter. For additional information, refer to Heating and Air Conditioning.

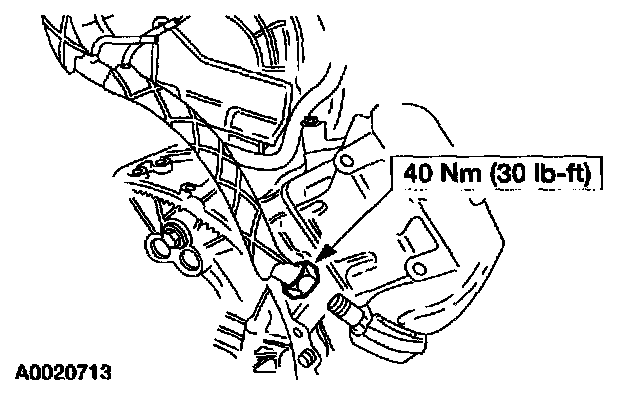

3. Disconnect the Exhaust Gas Recirculation (EGR) tube from the exhaust manifold.
^ Loosen the compression nut.

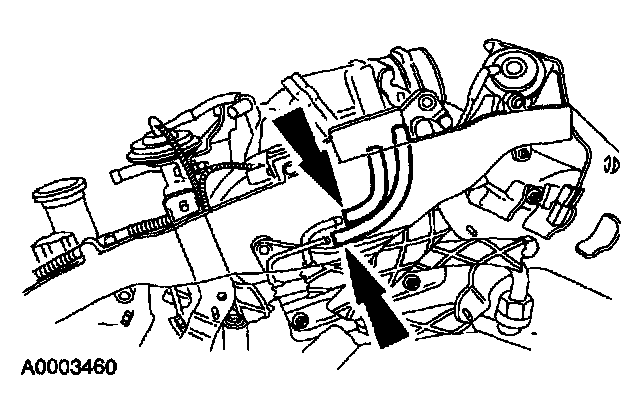

4. Disconnect the Differential Pressure Feedback EGR (DPFE) hoses.

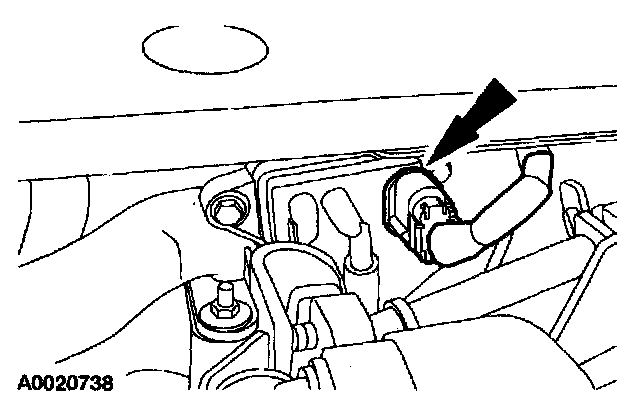

5. Disconnect the DPFE electrical connector.

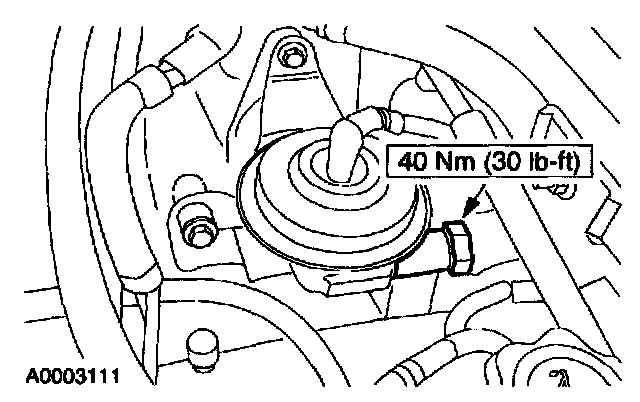

6. Disconnect the EGR tube from the EGR valve.
^ Loosen the compression nut.







7. Disconnect the accelerator and speed control cables.

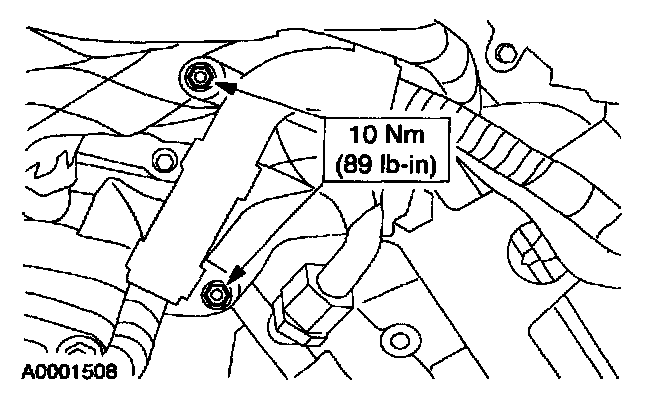

8. Position the wire harness bracket aside.
^ Remove the nuts.

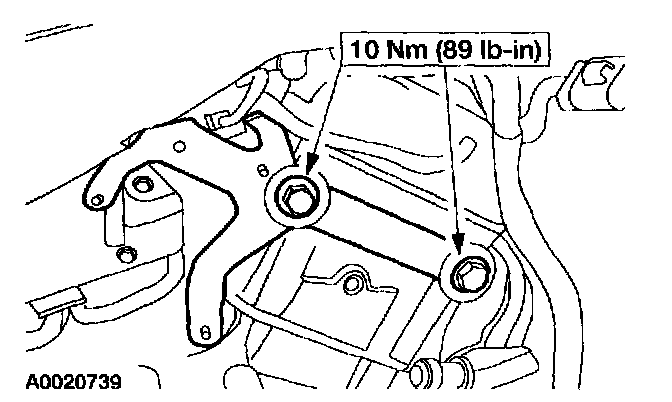

9. Position the bracket aside.
^ Remove the bolts.

10. Remove the EGR tube from the vehicle.

INSTALLATION
1. To install, reverse the removal procedure.
