Transmission and Drivetrain: Description and Operation

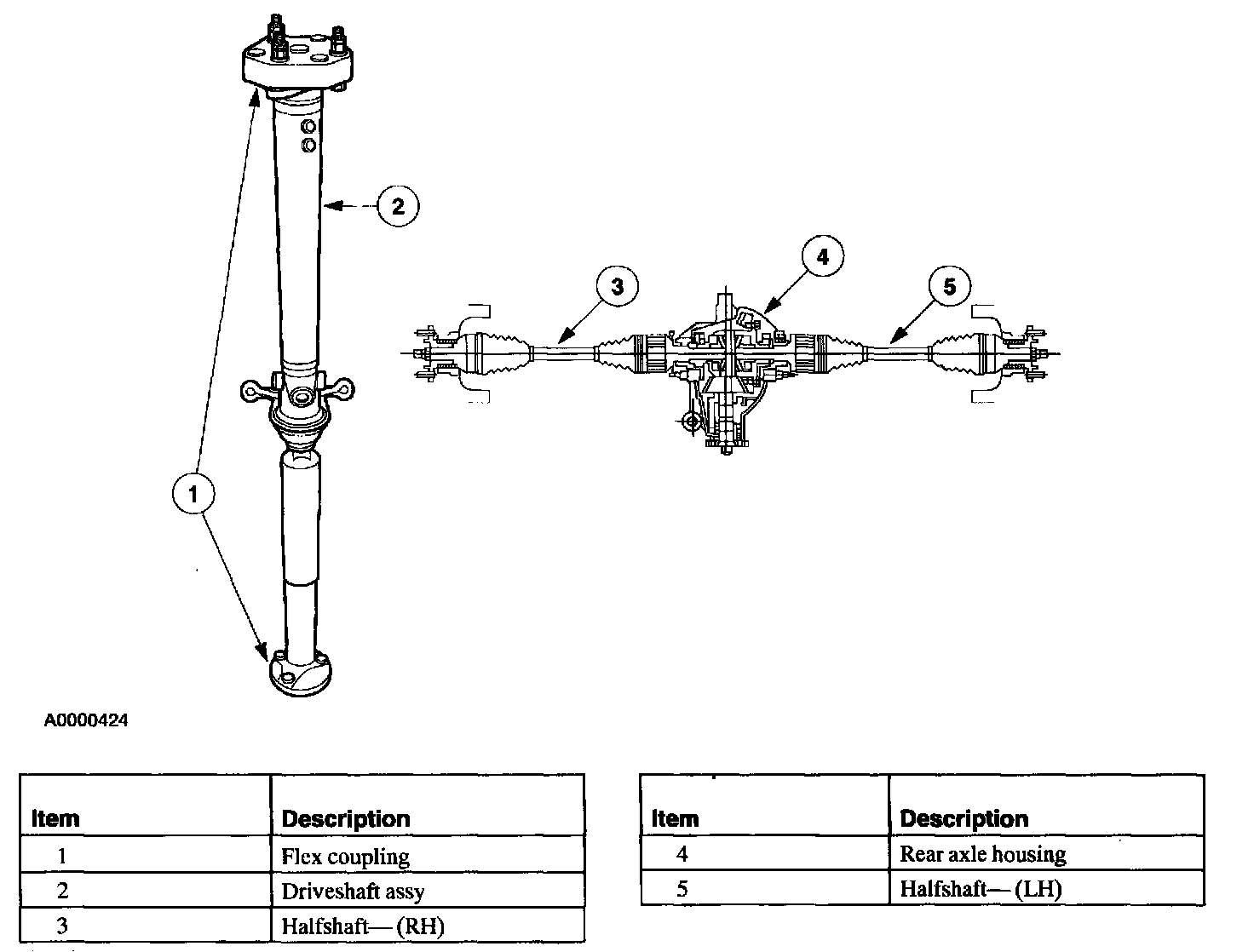

The driveline transfers engine torque to the drive wheels. Power is transmitted through the transmission to the driveshaft and then to the axle which is connected to the halfshafts.
The engine angle is built into the engine mounts. If the engine angle is out of specification, the engine mounts must be inspected for damage.
