Frame: Description and Operation

FRAME AND BODY MOUNTING

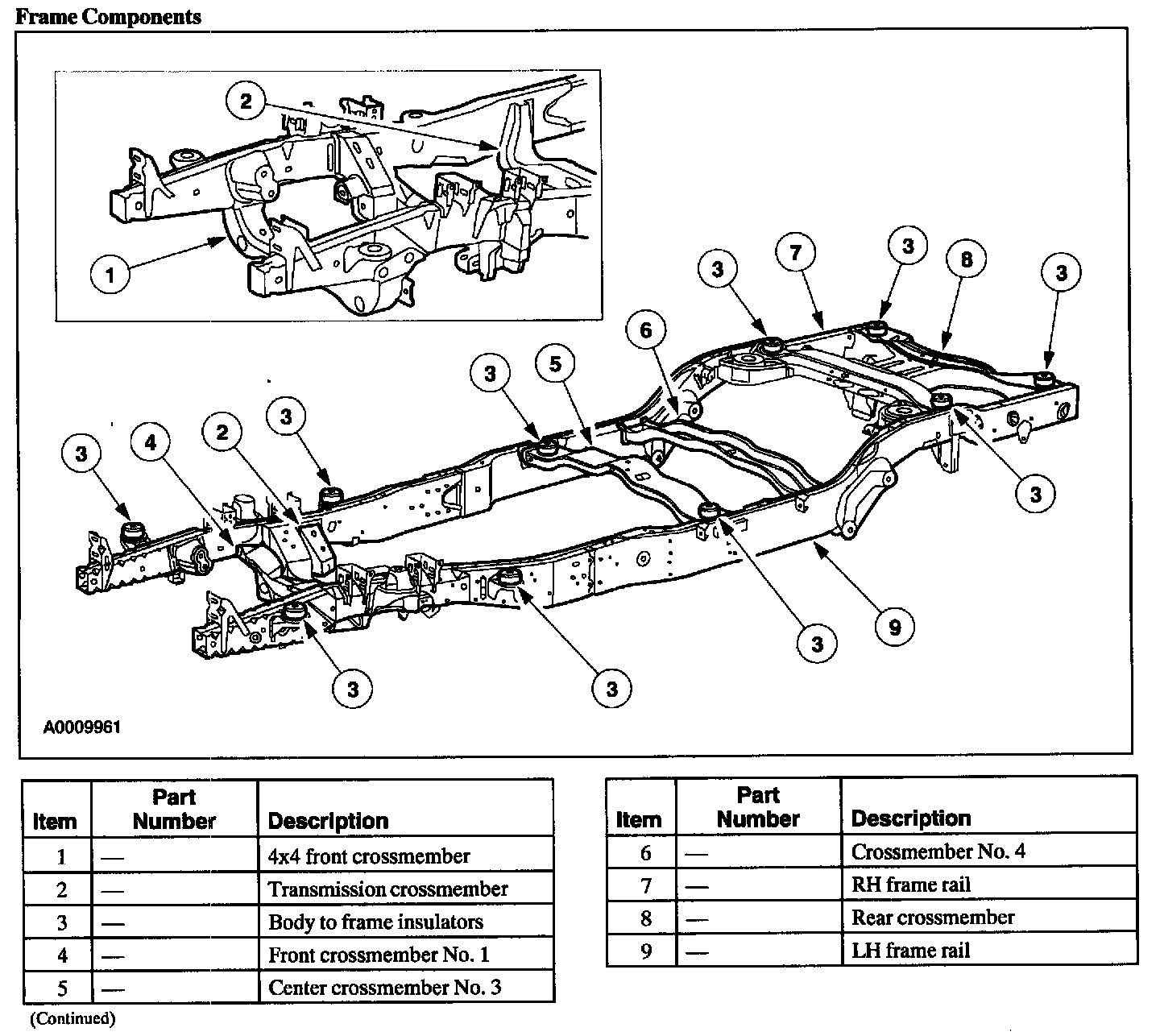

Frame Components:

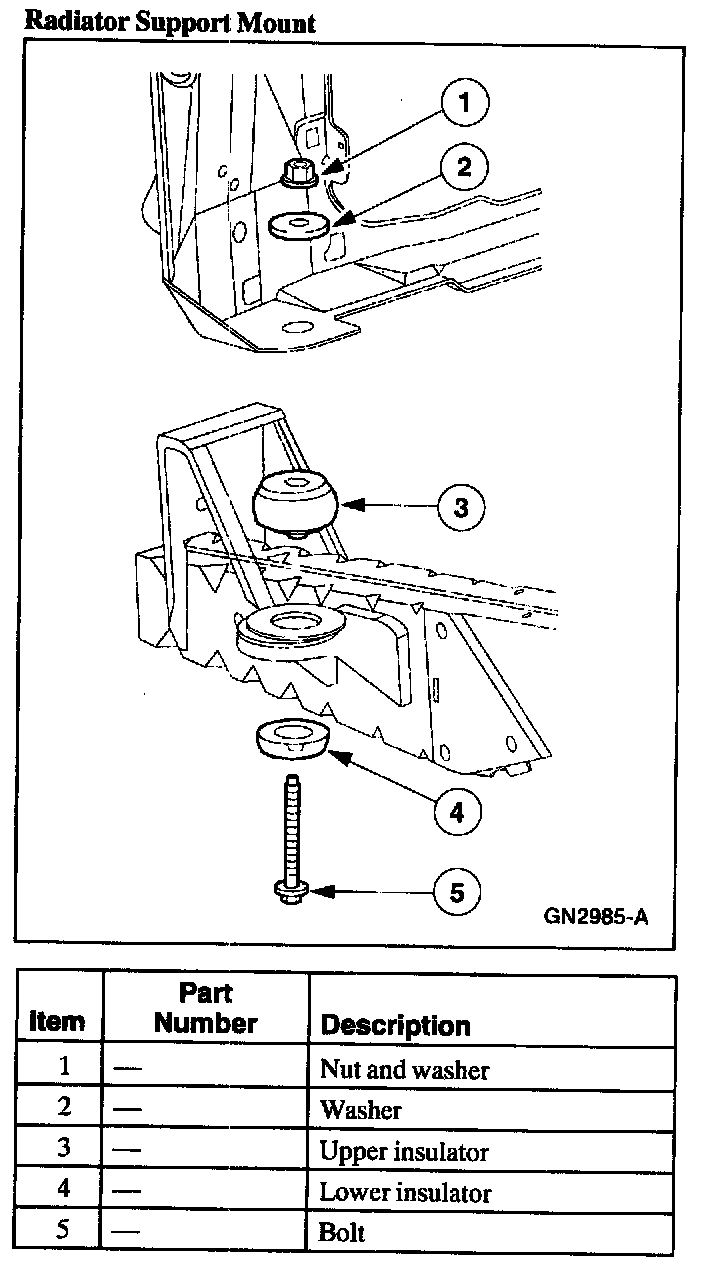

Radiator Support Mount:

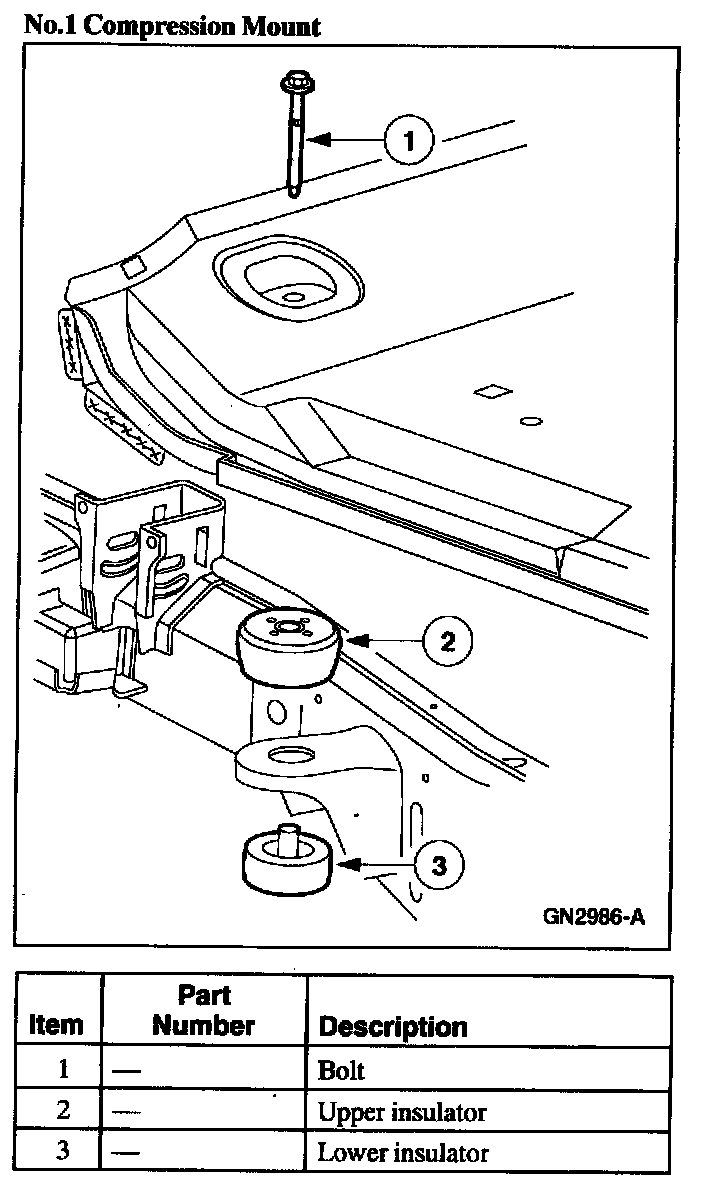

No.1 Compression Mount:

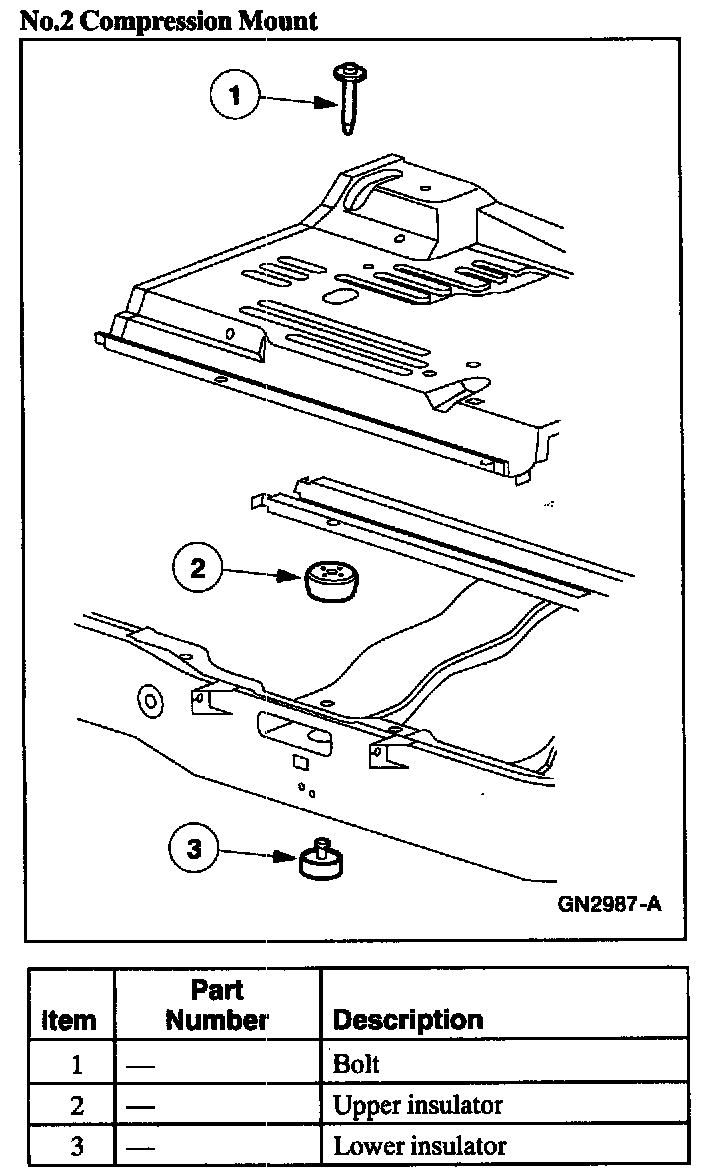

No.2 Compression Mount:

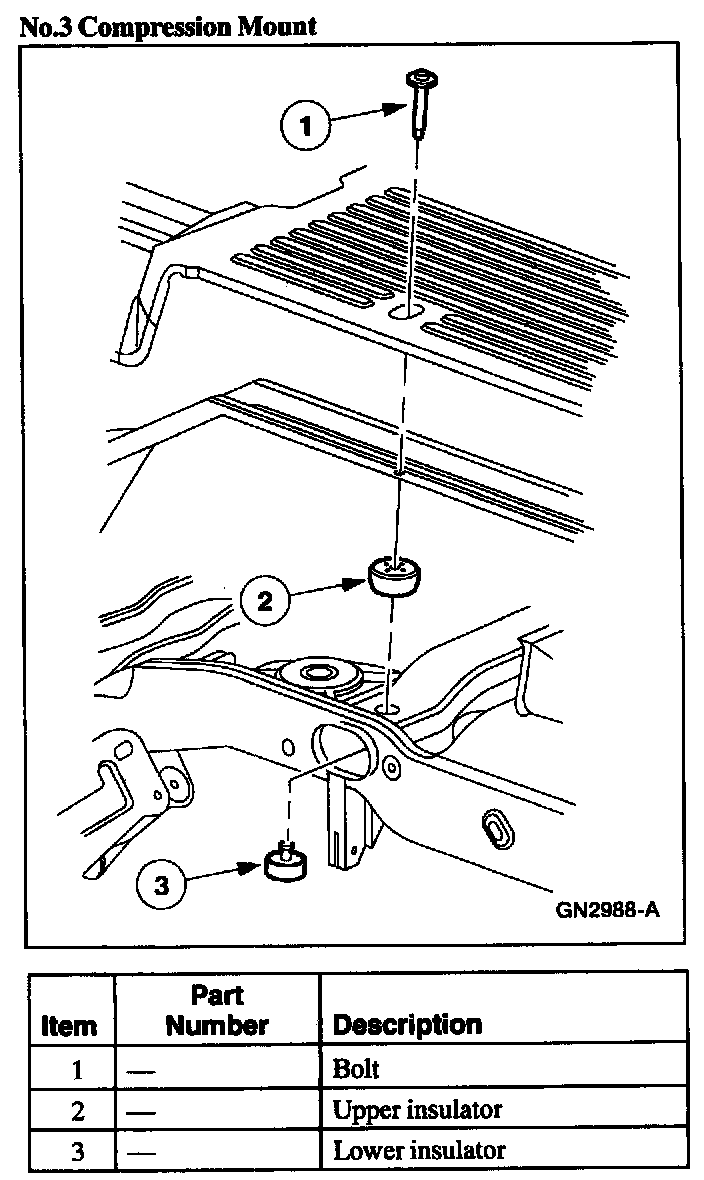

No.3 Compression Mount:

No.5 Compression Mount:

The frame (5005) is made of two steel channel side rails, as well as a front crossmember and a rear crossmember, which are welded to the two side rails. Additional support structures are bolted to the side rails. The side rails and crossmembers are not replaced separately.
