Ignition Coil: Service and Repair
REMOVAL 1.

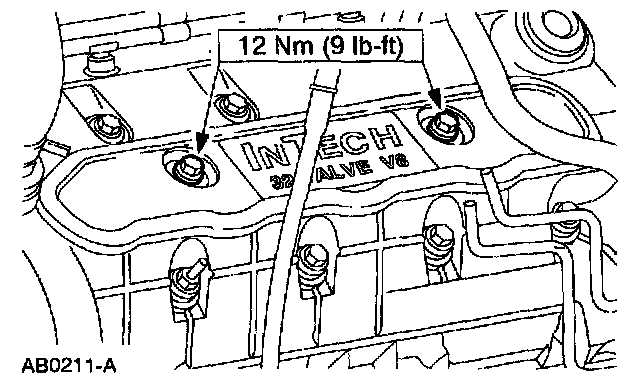

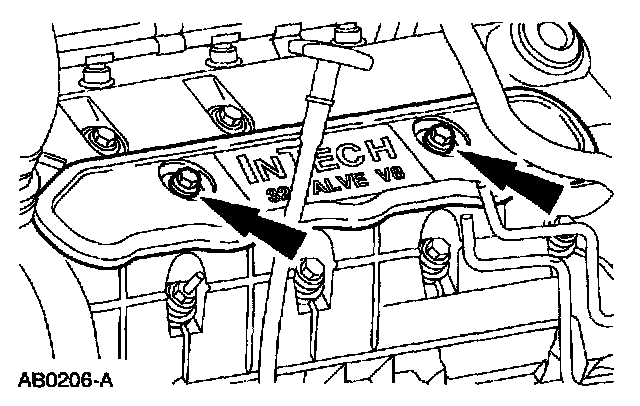

Remove the bolts and the
ignition coil cover.
2.
Disconnect the electrical connector from the
ignition coil.
3.
Remove the bolts.
4.

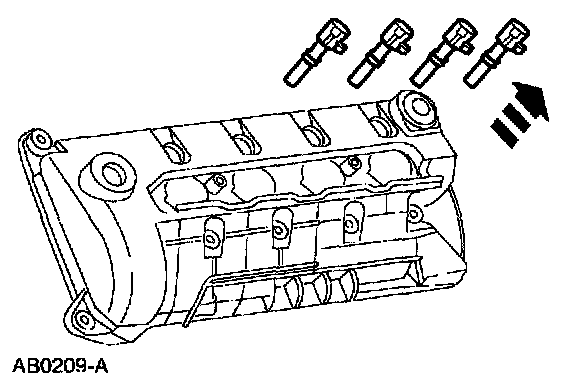

Remove the
ignition coils.
INSTALLATION 1.
To install, reverse the removal procedure.
