Moulding

REMOVAL
1. Remove the rear pivot arm. For additional information, refer to Wiper and Washer Systems.







2. Remove the rear wiper stop.
1 Remove the screws.
2 Remove the rear wiper stop.

3. Remove the liftgate window glass. For additional information, refer to Window Glass-Liftgate.
4. Peel back the top corners of the watershield and remove the plugs at the top corners.

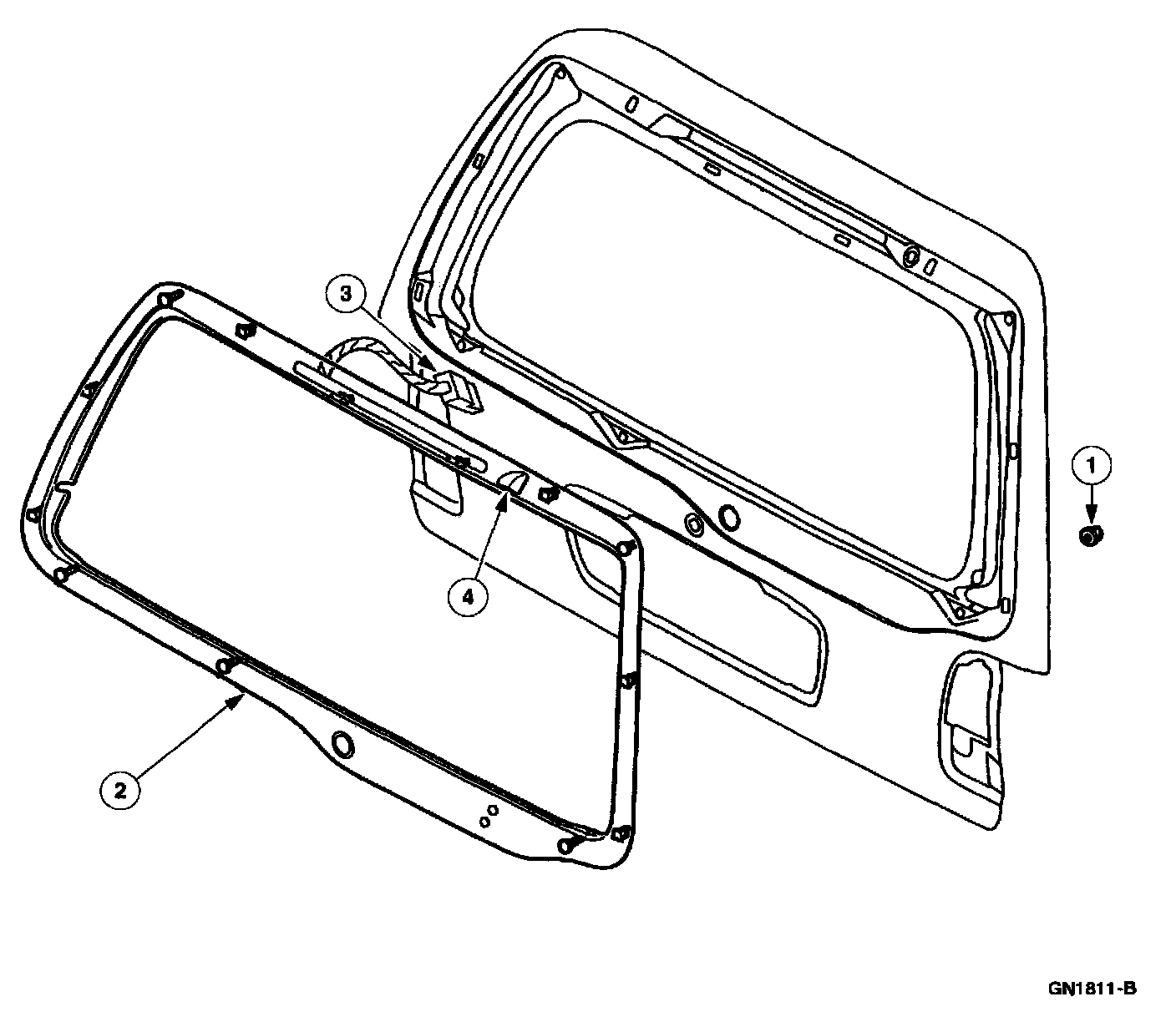

5. Remove the liftgate window glass moulding.
1 Remove the five nuts.
2 Remove the moulding.
3 Disconnect the center hi-mount stop lamp electrical connector.
4 Disconnect the washer nozzle.

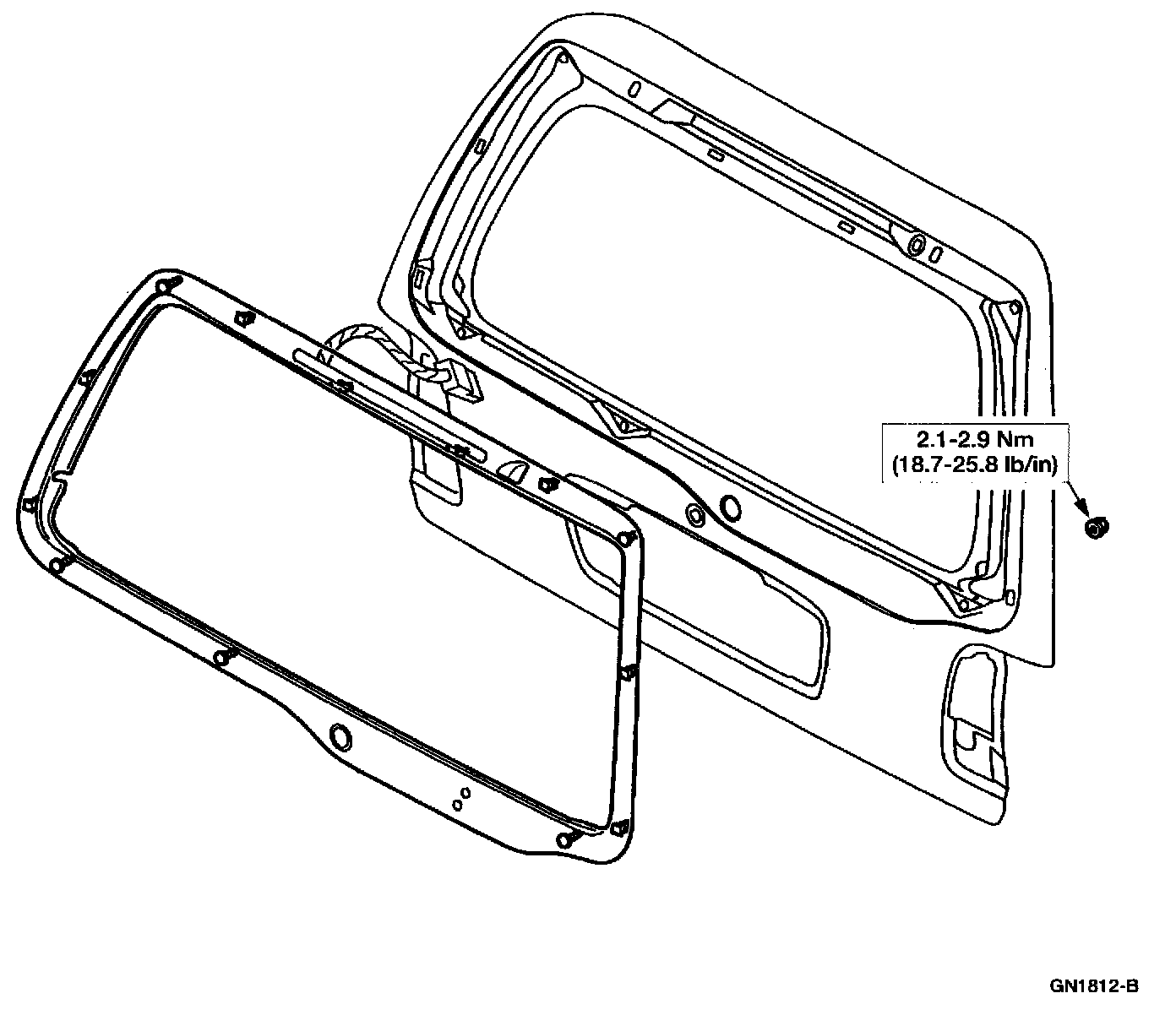

INSTALLATION












1. To install, reverse the removal procedure.

NOTE: Be careful not to pinch the washer nozzle hose during installation of the liftgate window moulding.
