Front

REMOVAL

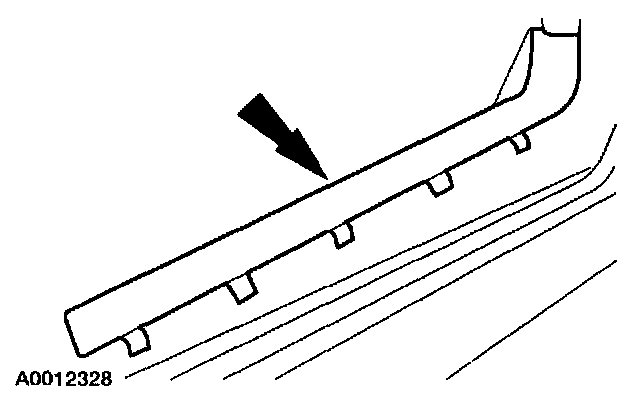

1. Remove the RH scuff plate.

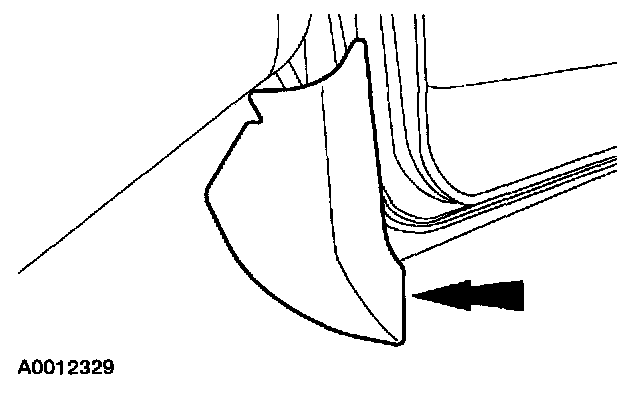

2. Remove the RH A-pillar lower trim panel.

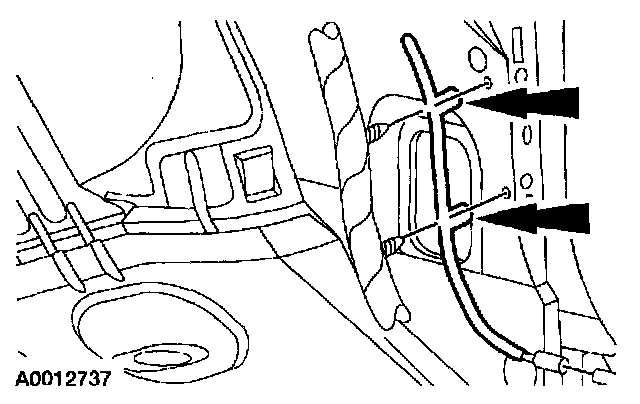

3. Disconnect the two pin-type retainers from the lower A-pillar.






4. Disconnect the rear antenna lead-in cable from the front antenna lead-in cable.







5. Remove the front antenna lead-in cable.

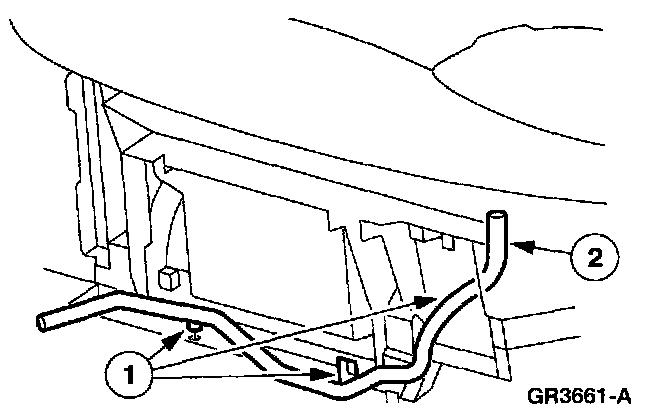

1 Disconnect the pin-type retainers from the lower Instrument Panel (I/P) channel.
2 Remove the front antenna lead-in cable from the I/P.

INSTALLATION
1. To install, reverse the removal procedure.
