Electrochromic

Rear View Mirror Replacer:

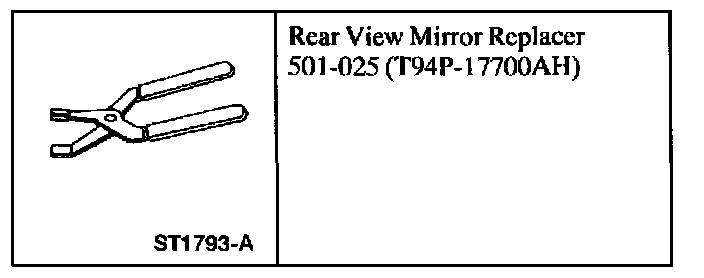

SPECIAL SERVICE TOOL(S)

REMOVAL
1. Remove the compass sensor.

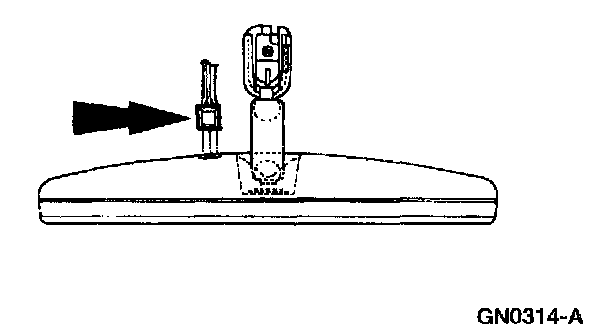

2. Disconnect the inside rear view mirror electrical connector.

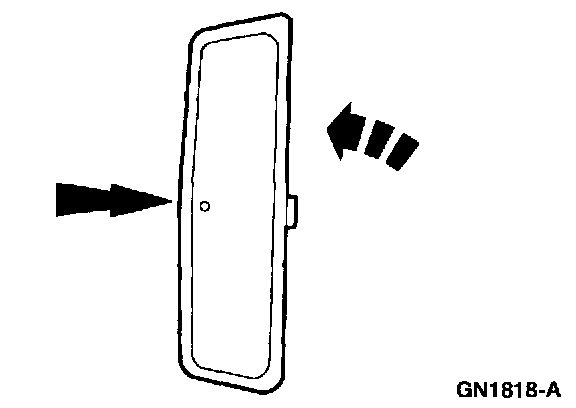

3. Turn the inside rear view mirror to the vertical position.
4. Remove the inside rear view mirror.
^ Twist the mirror horizontally until the tube assembly bottoms out and the spring releases from the mounting button.

INSTALLATION
1. Position the inside rear view mirror onto the mounting button.
2. Use Rear View Mirror Replacer to install the inside rear view mirror downward onto the rear view mirror bracket.

NOTE: Make sure the inside rear view mirror remains parallel to the windshield glass.







3. Connect the inside rear view mirror electrical connector.
4. Install the compass sensor.
5. Check the inside rear view mirror for normal operation.

NOTE: The mirror mount is designed to detach from the button during air bag deployment. Excessive force or adjustment can cause the mirror to detach from the windshield.
