Brake Fluid Level Sensor/Switch: Description and Operation

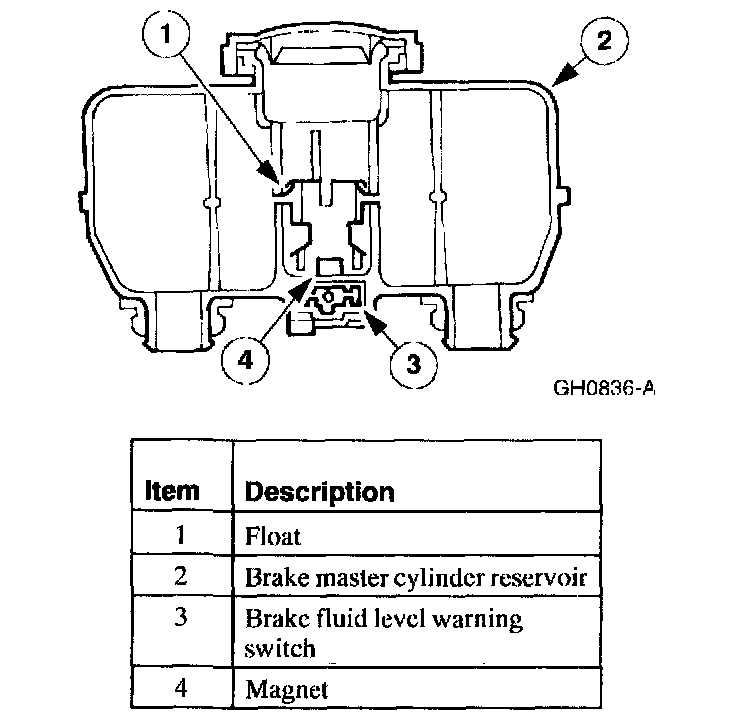

The brake fluid level warning switch is an integral part of the brake master cylinder reservoir. It consists of a float containing a magnet and a reed switch mounted in the bottom of the brake master cylinder reservoir.

When the brake fluid in the brake master cylinder reservoir gets to a predetermined level, the floating magnet actuates the reed switch, causing the red brake warning indicator to illuminate. Loss of brake fluid from either the primary (front) or secondary (rear) system will cause this system to activate. If the brake fluid level warning switch is inoperative, a new brake master cylinder reservoir must be installed.
