Navigation System Module

REMOVAL
1. Disconnect the battery. Refer to Battery.

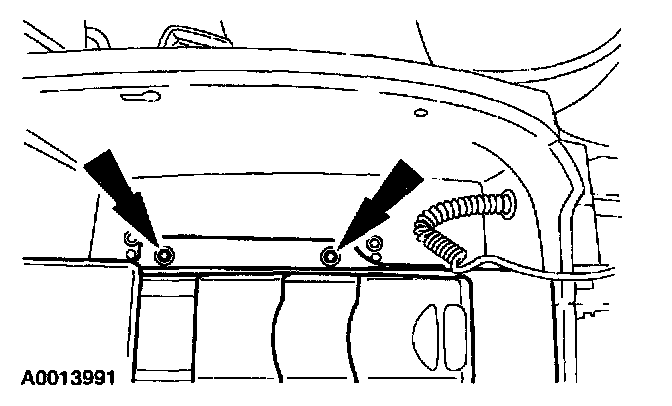

2. Remove the lower screws. Unsnap and remove the CD-DJ and Navigation System Module (NSM) cover.

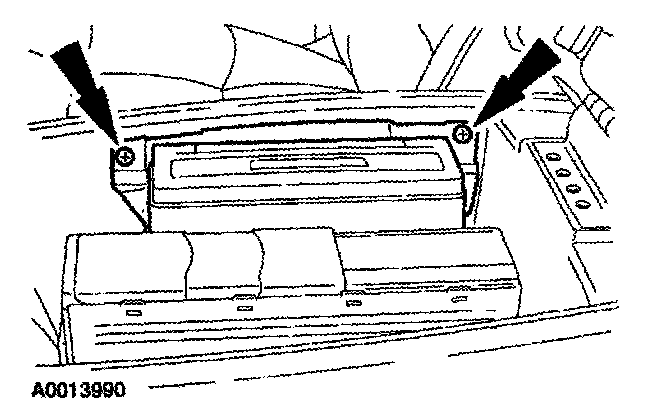

3. Remove the upper screws.

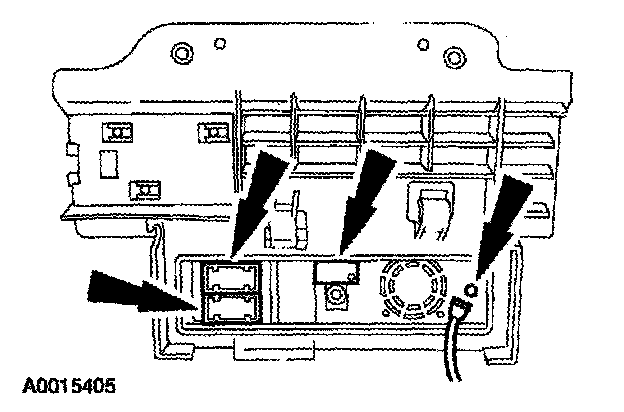

4. Slide the NSM up out of the console, disconnect the three harness connectors and GPS antenna cable and remove the NSM.

NOTE: The GPS antenna cable is attached to the NSM with a locking sleeve on the connector

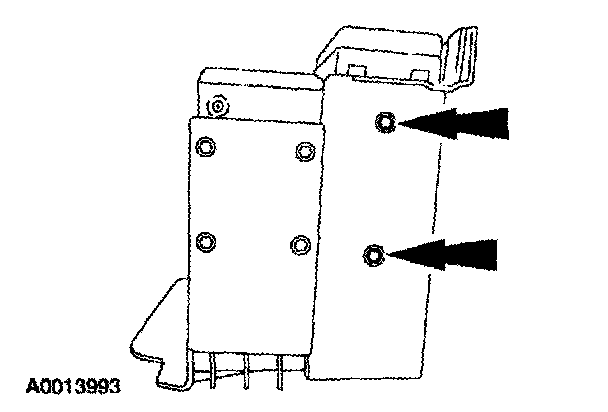

5. Remove the two screws on each end of the bracket and remove the NSM.

INSTALLATION
1. To install, reverse the removal procedure.
^ Make sure all connectors are correctly locked.
