Cabin Temperature Sensor / Switch: Service and Repair

Radio Removal Tool:






SPECIAL SERVICE TOOL(S)

REMOVAL







1. Use the special tool to remove the radio chassis.

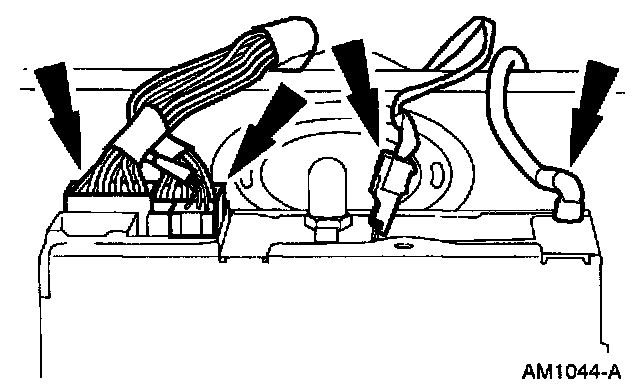

2. Disconnect the antenna lead and the wire harness connectors.

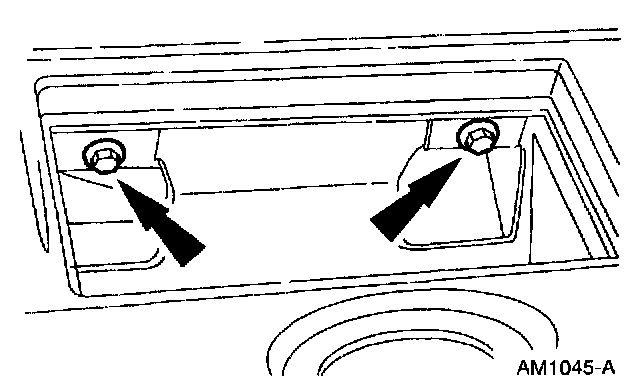

3. Remove the screws from the radio chassis opening.

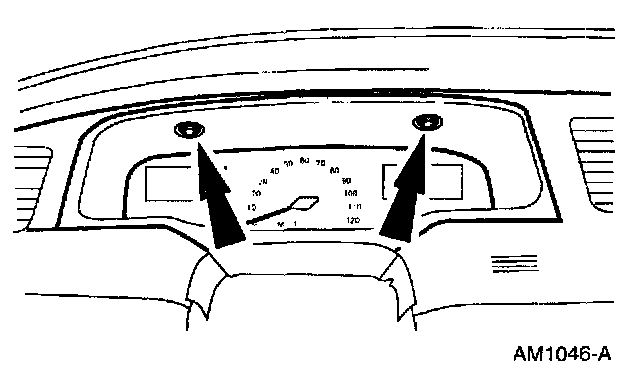

4. Remove the screws and the cluster opening finish panel.

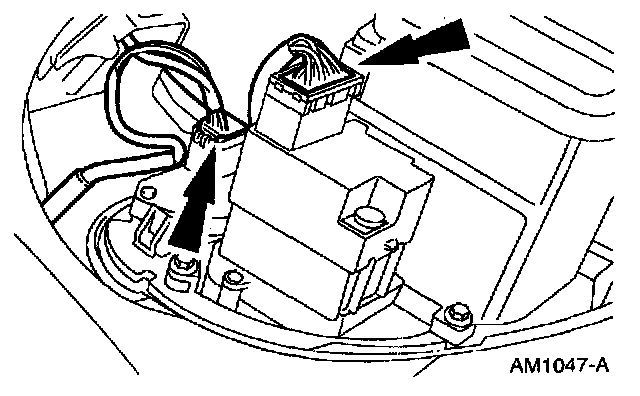

5. Disconnect the headlight and dimmer switch wire harness connectors.







6. Disconnect the clock wire harness connector. Disconnect the clock wire harness connector.

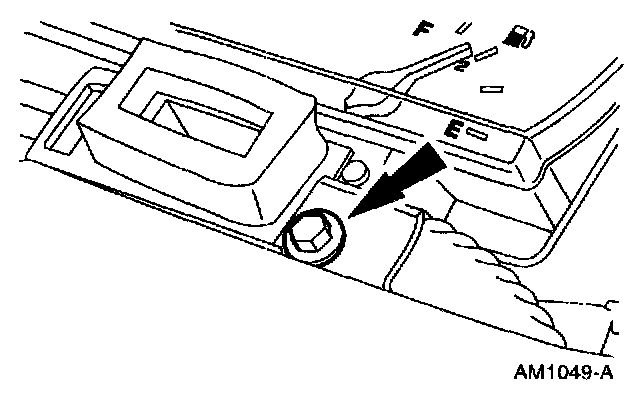

7. Remove the screw.

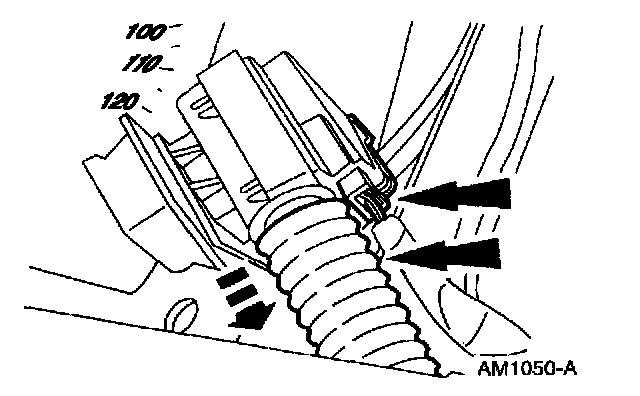

8. Disconnect the wire harness connector and remove the sensor from the hose.

INSTALLATION
1. To install, reverse the removal procedure.
