EGR Valve: Service and Repair
EGR VALVEREMOVAL 1.

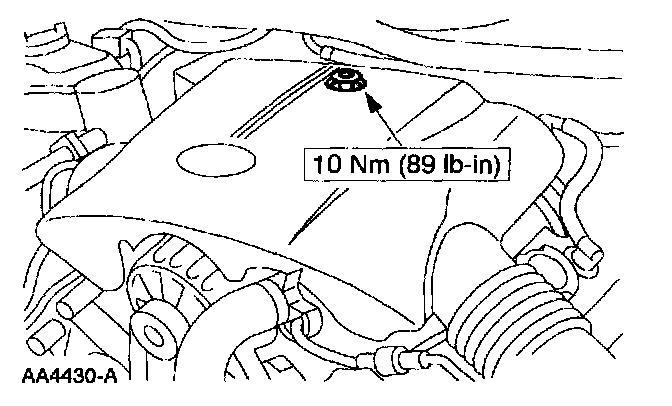

Remove the appearance cover.
2.

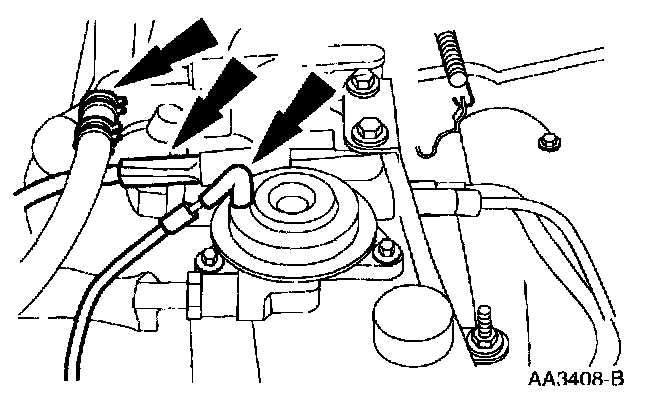

Remove the vacuum lines.
3.

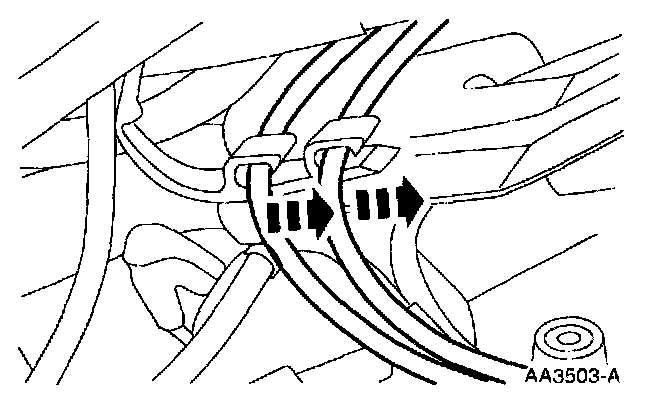

Remove the cables from the
EGR heat shield.
4.

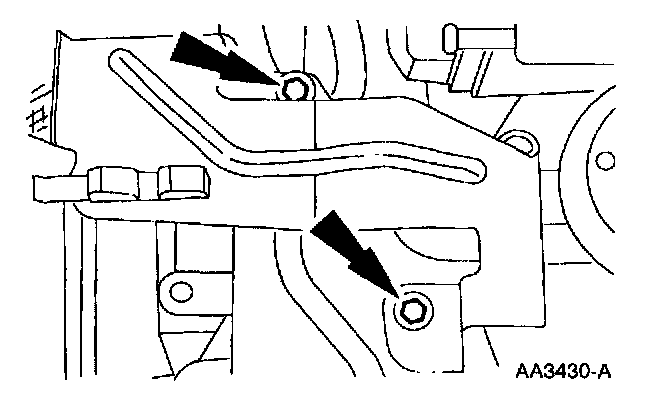

Remove the bolts and the
EGR heat shield.
5.

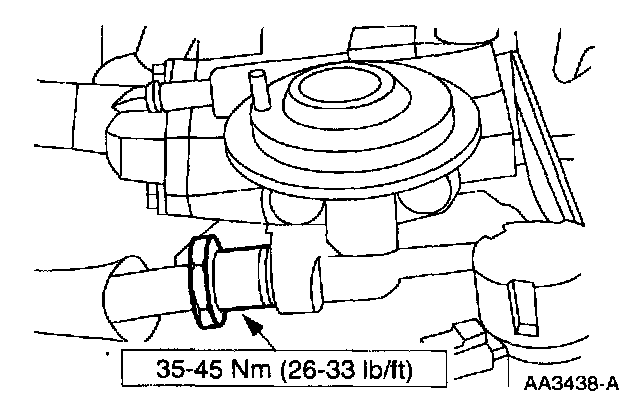

Remove EGR valve to exhaust manifold tube.
6.

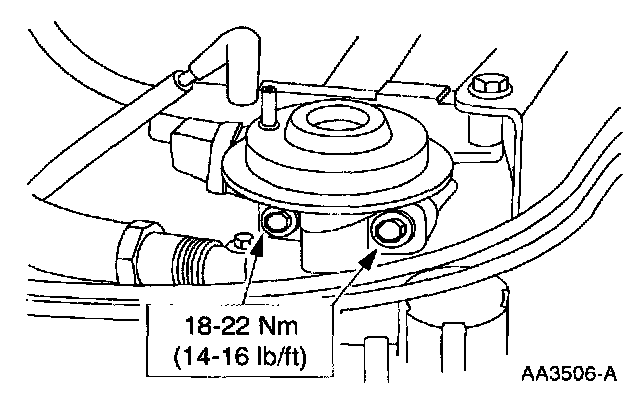

Remove the bolts and the ERG valve.
INSTALLATION 1.
To install, reverse the removal procedure.
