Home >> Lincoln >> 2001 >> Continental V8-4.6L DOHC VIN V >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> General Module >> Driver Door Module

Driver Door Module

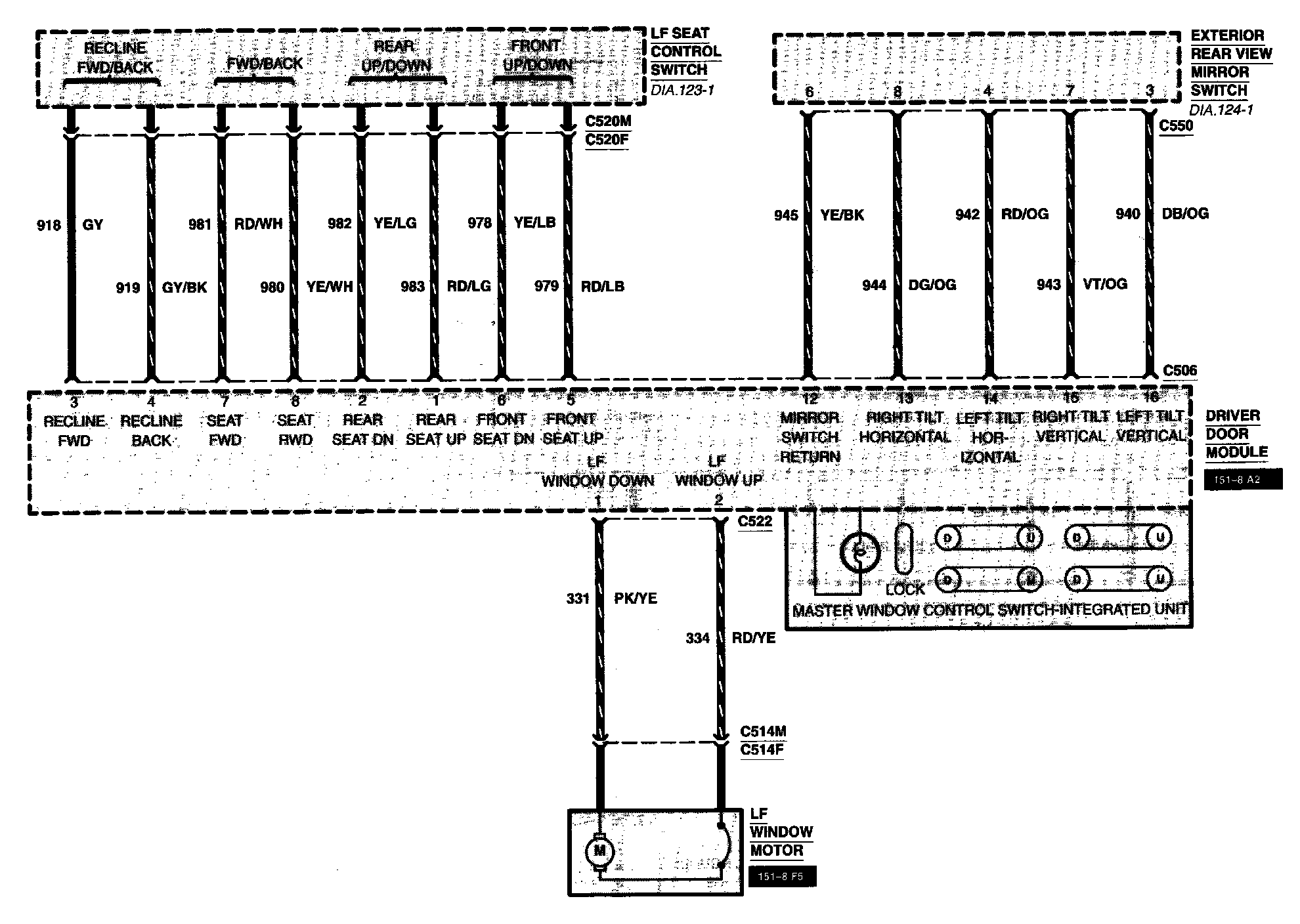

Diagram 57-1:

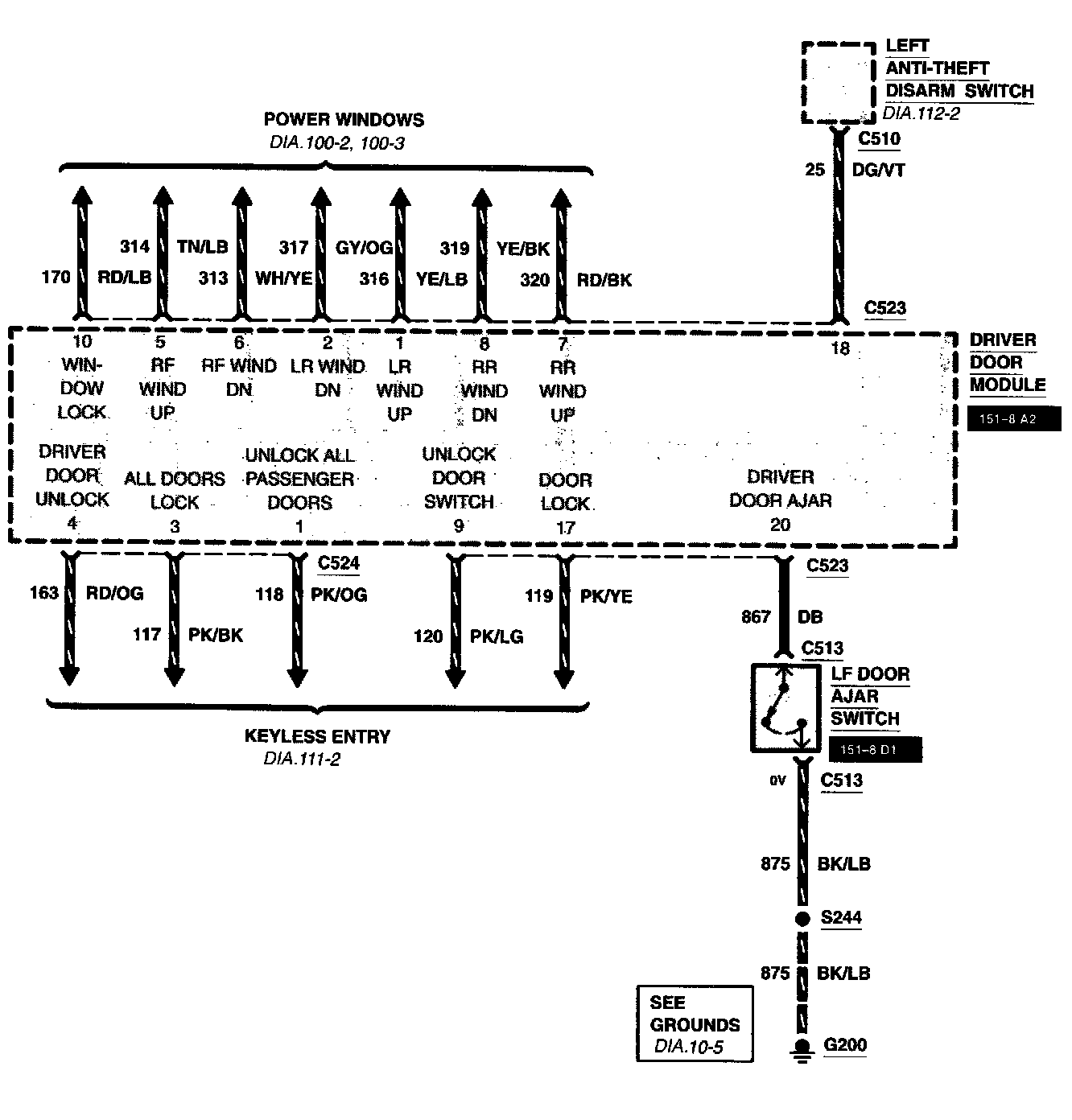

Diagram 57-2:

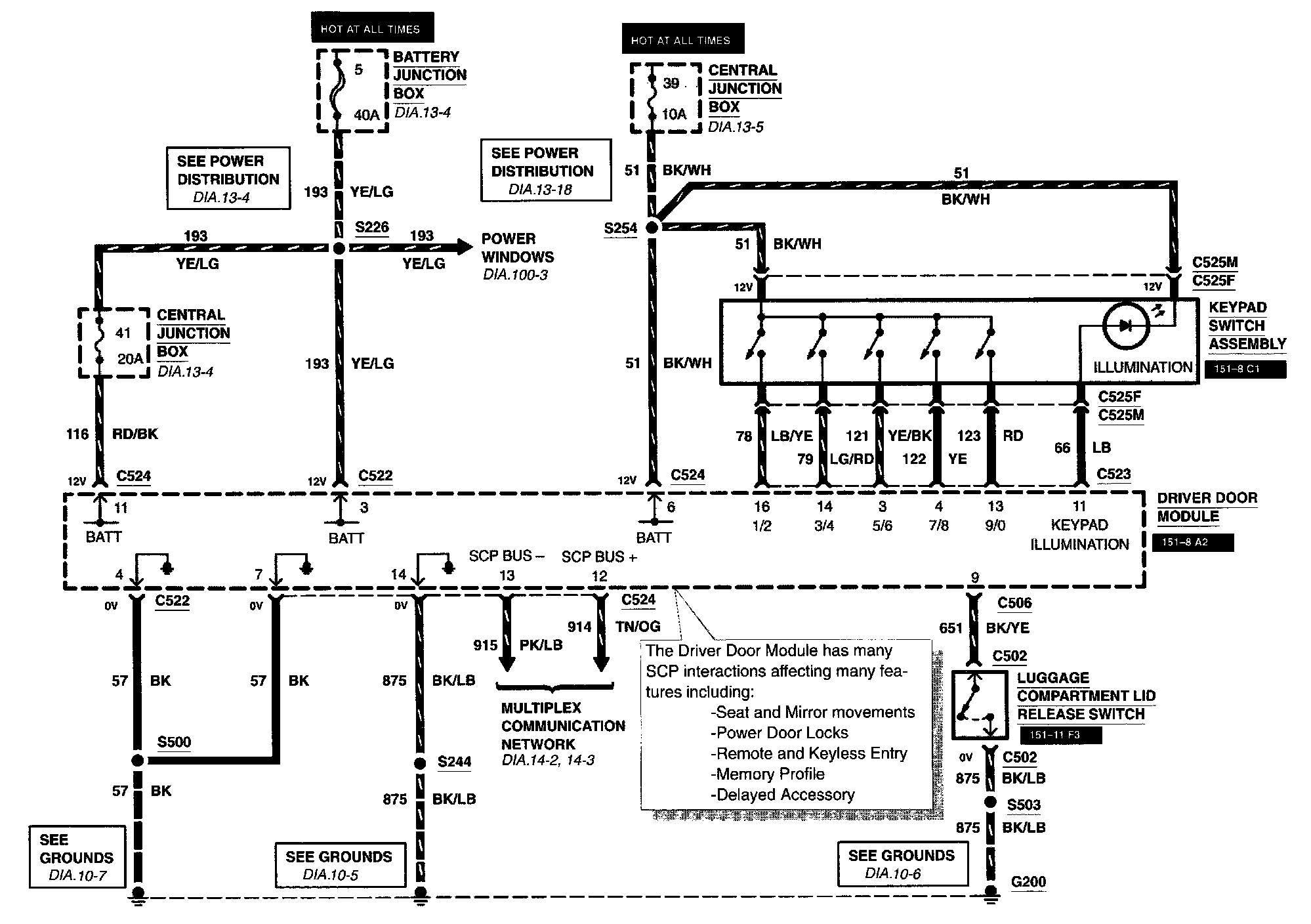

Diagram 57-3:
