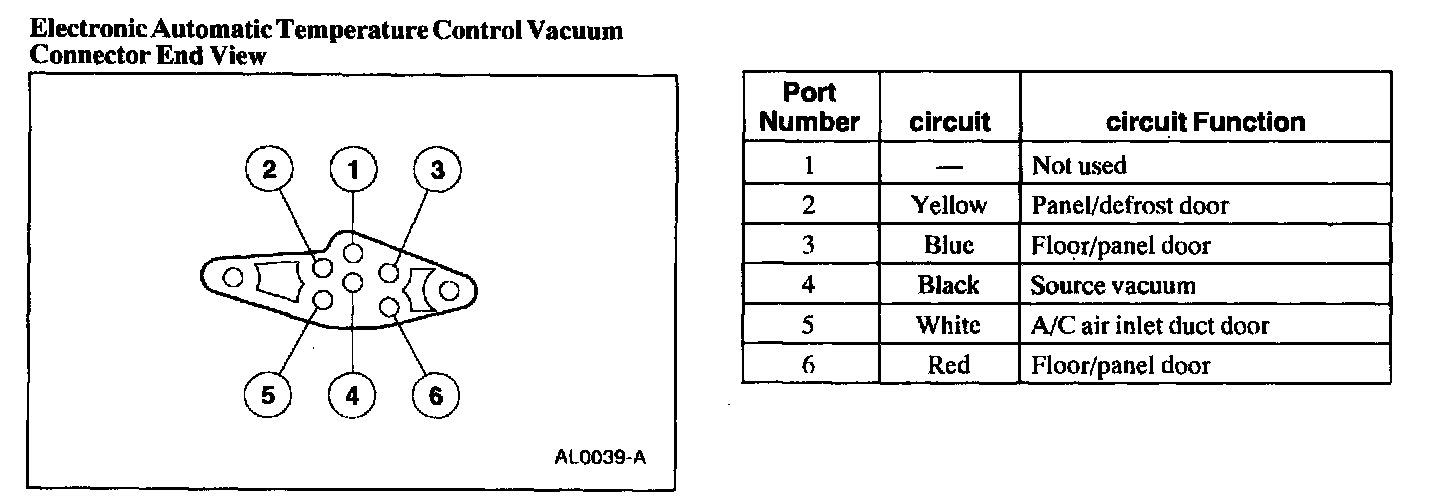

Electronic Automatic Temperature Control Vacuum Connector End View:

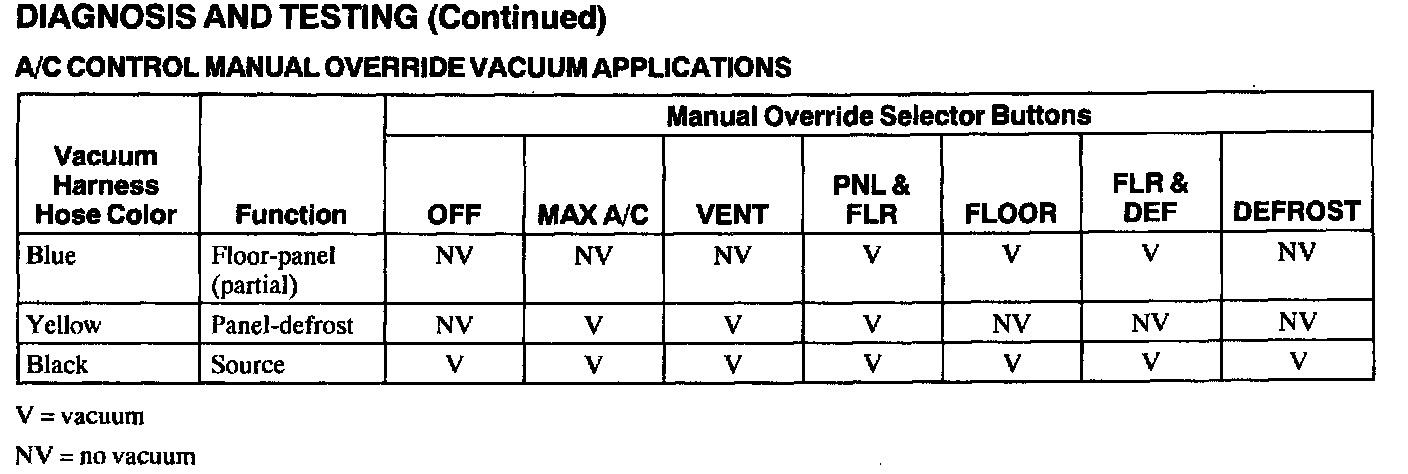

A/C Control Manual Override Vacuum Applications, Part 1:

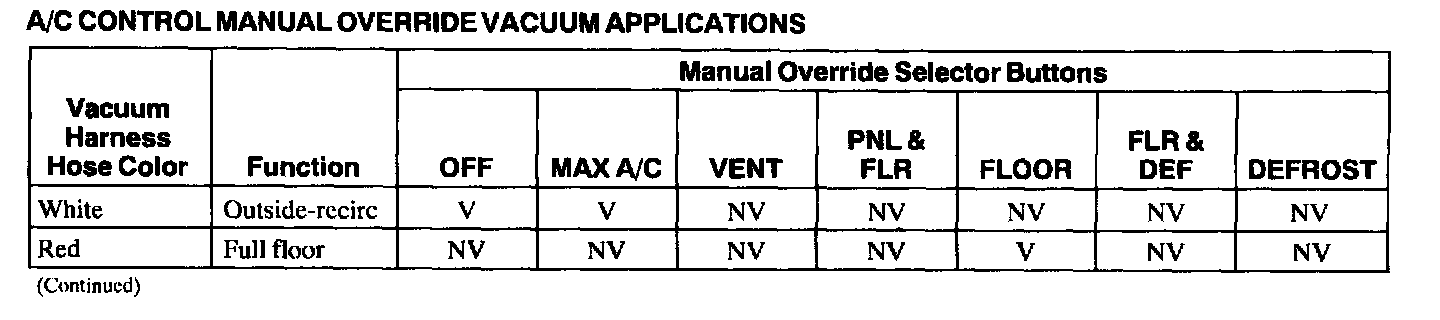

A/C Control Manual Override Vacuum Application, Part 2:
