Continental V8-4.6L DOHC VIN V
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Exploded Views
Exploded Views
Compressor Clutch Components:
Service Gauge Port Values:
Spring Lock Coupling:

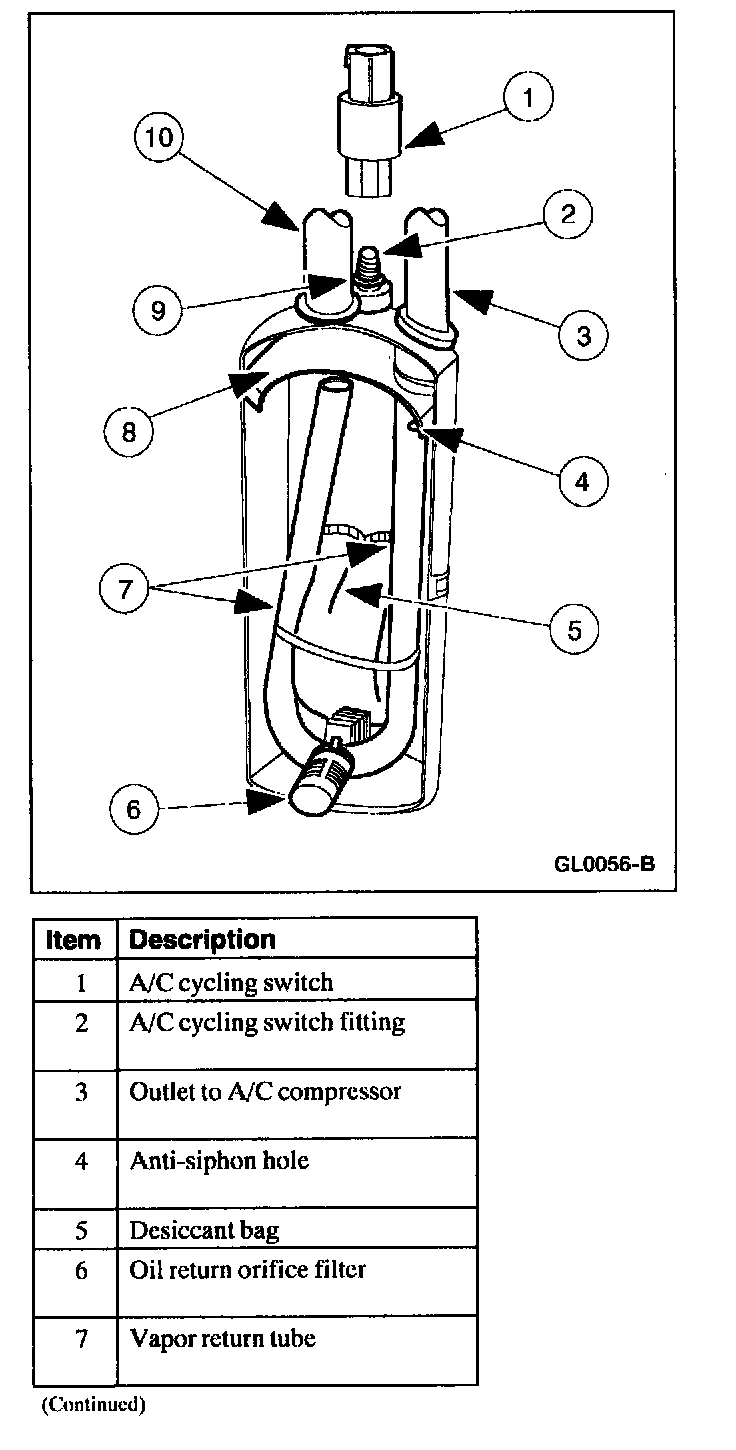

Suction Accumulator/Drier, Part 1:

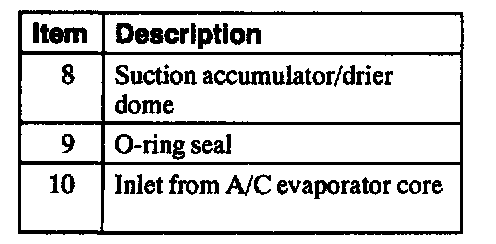

Suction Accumulator/Drier, Part 2:
