Front Subframe: Description and Operation

FRAME ASSEMBLY-SUB-FRAME

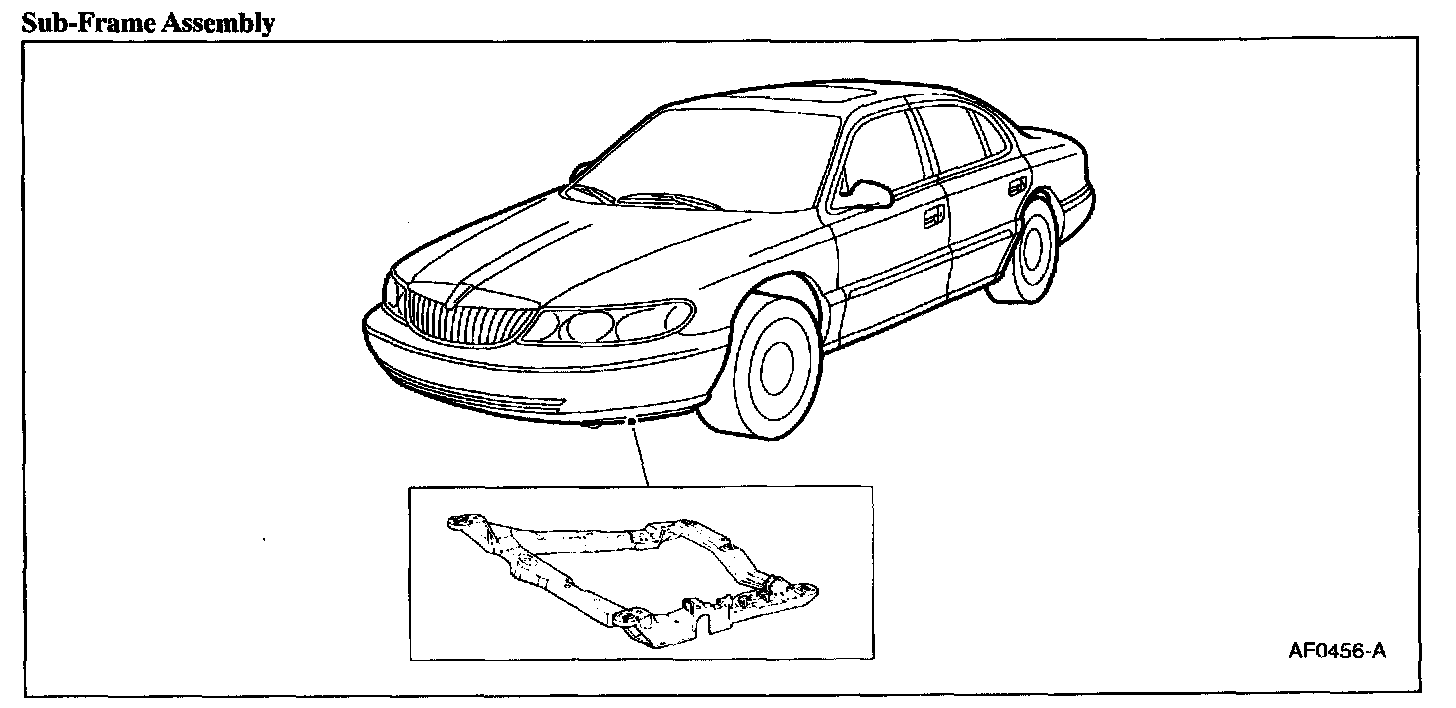

Sub-Frame Assembly:






The front sub-frame (5C145) is bolted to the body and:
- aids in structural support.
- provides the mounting surface for the steering gears (3504), the front suspension lower arm (3079), the front engine support bracket (6028), the transmission support insulator (6068) and the engine and transmission support insulator (6F063).
