Information Bus: Locations

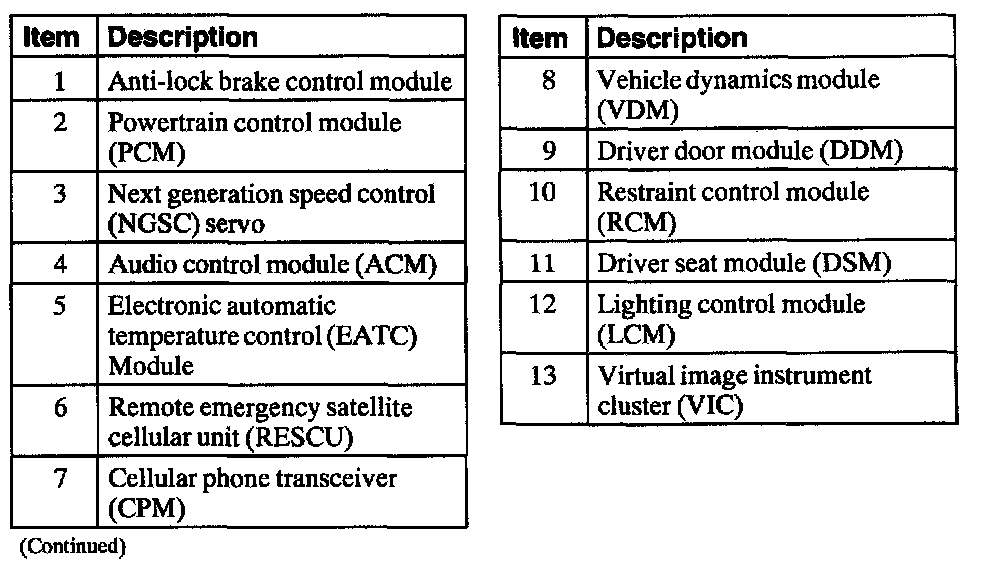

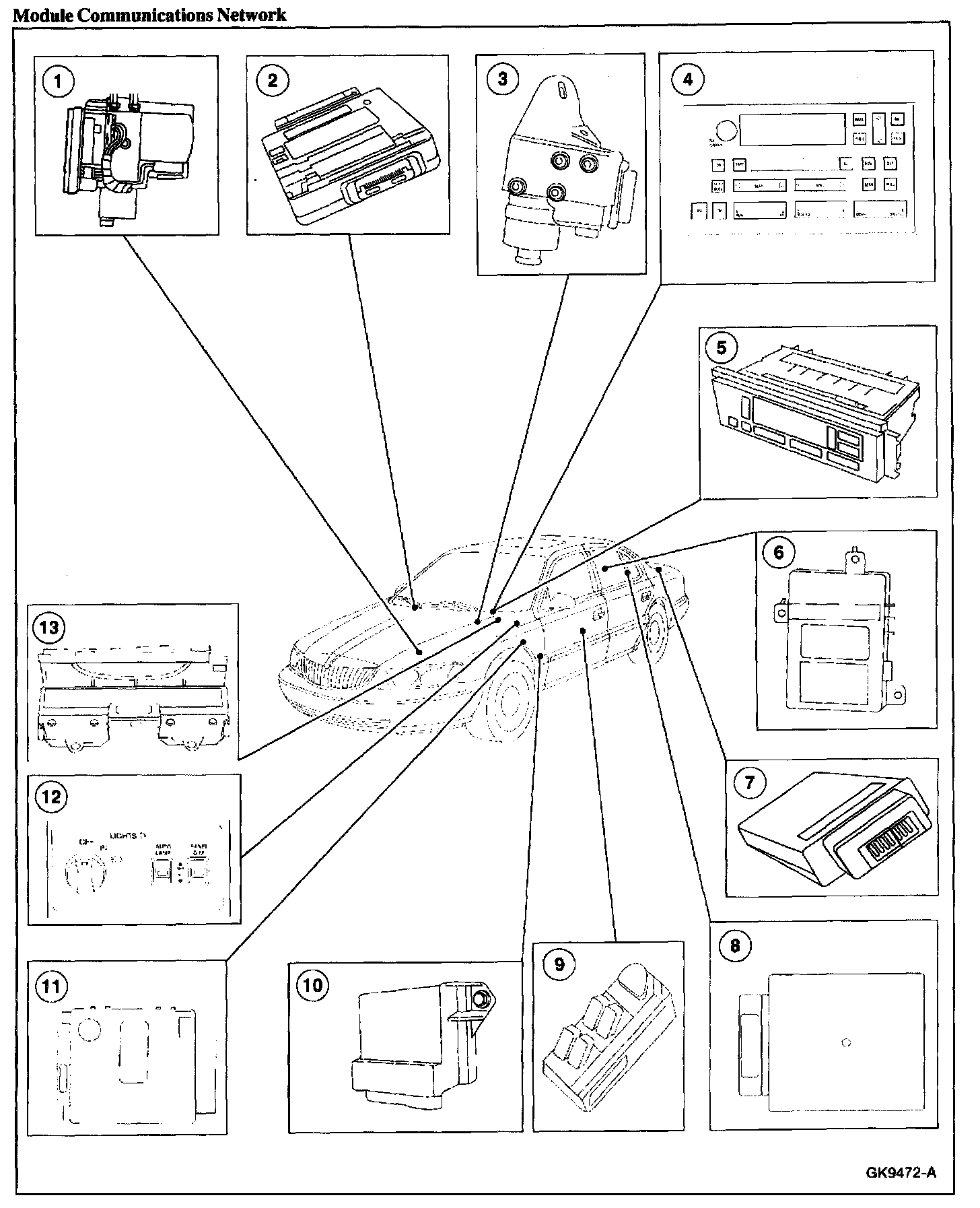

Module Communication Network, Part 1:



Module Communication Network, Part 2:
