Torque Specifications

TORQUE SPECIFICATIONS

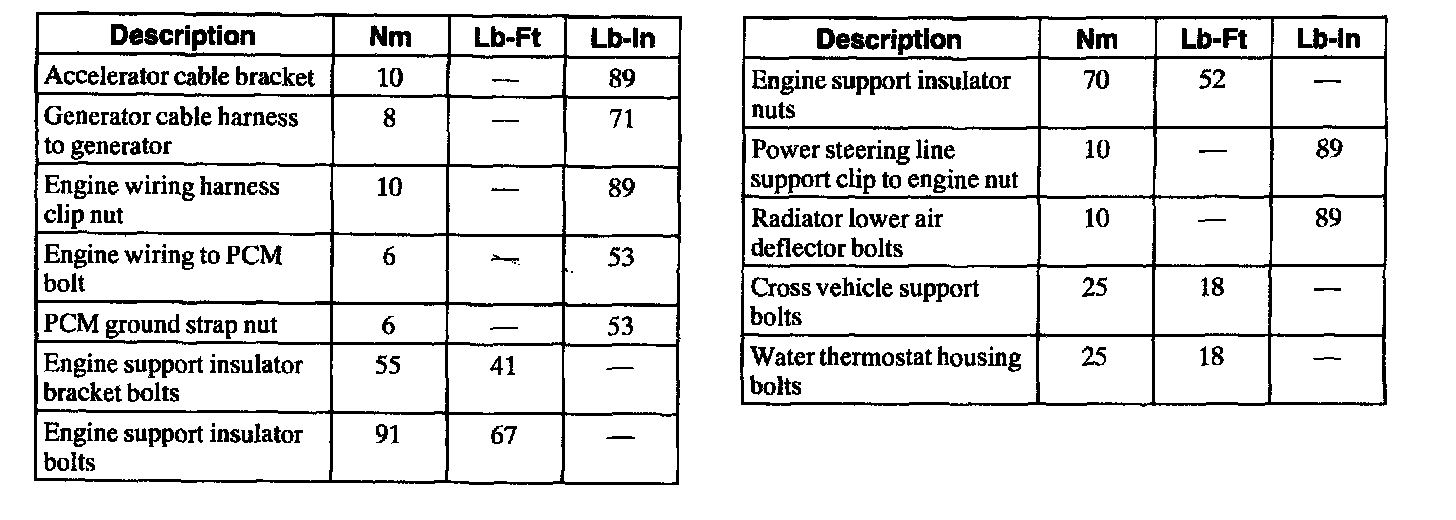

Part 1 of 3

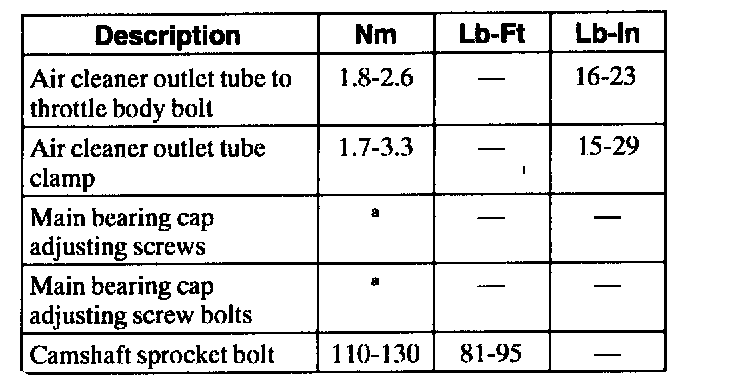

Part 2 of 3





Part 3 of 3


Footnote:

a - Refer to the applicable service and repair procedure for the available tightening specification and/or sequence.
