Intake Manifold





Intake Manifold
Tighten the bolts and studs in the sequence shown.

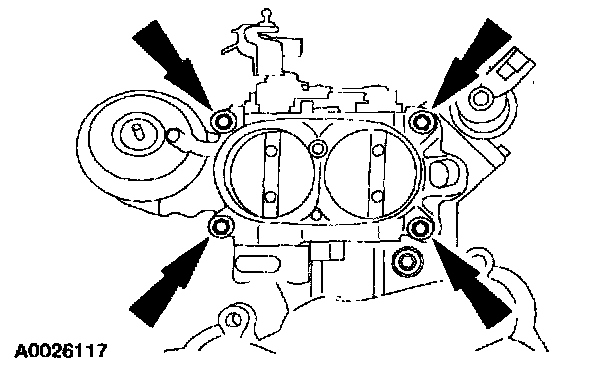

Throttle Body
Install the throttle body.
- Position the throttle body gasket.
- Position the throttle body.
- Install the bolts and tighten to 9 Nm (80 inch lbs.) and rotate an additional 90 degrees.
