System Specifications

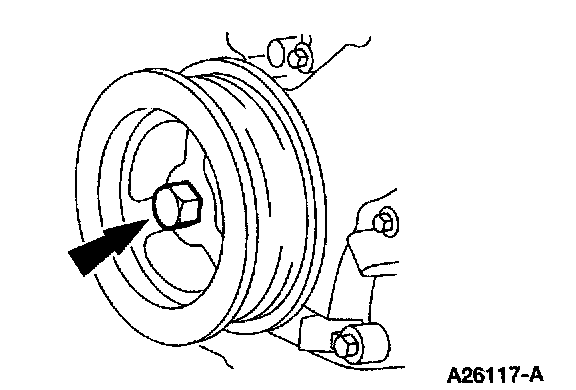

Pulley-to-Crankshaft Bolt
Tighten the bolt in four stages.
- Stage 1: Tighten the bolt to 90 Nm (66 ft. lbs.).
- Stage 2: Loosen the bolt one full turn.
- Stage 3: Tighten the bolt to 50 Nm (36 ft. lbs.).
- Stage 4: Tighten the bolt an additional 85 to 95 degrees.

Camshaft Sprocket Bolt
Tightening Specification 110-130 Nm (82-95 ft. lbs.)
