Global Positioning System Module: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

NOTE: The telematics control module must be reconfigured upon installation. Refer to Module Communications Network (Information Bus).

2. Position the LH quarter trim panel aside.







3. Remove the telematics control module nuts.







4. Remove the telematics control module.

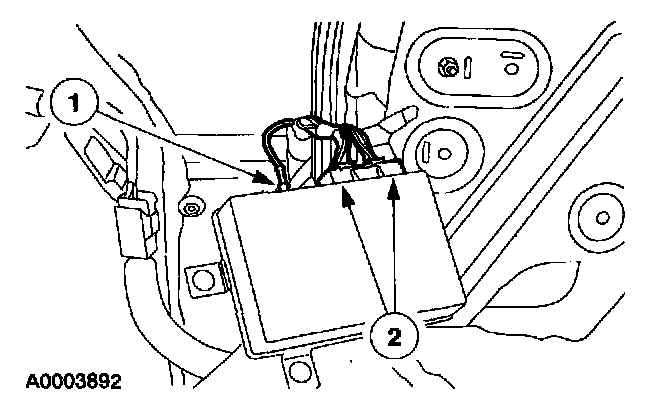

1 Disconnect the antenna.
2 Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
