Operation CHARM: Car repair manuals for everyone.
Home >> Lincoln >> 2002 >> LS V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

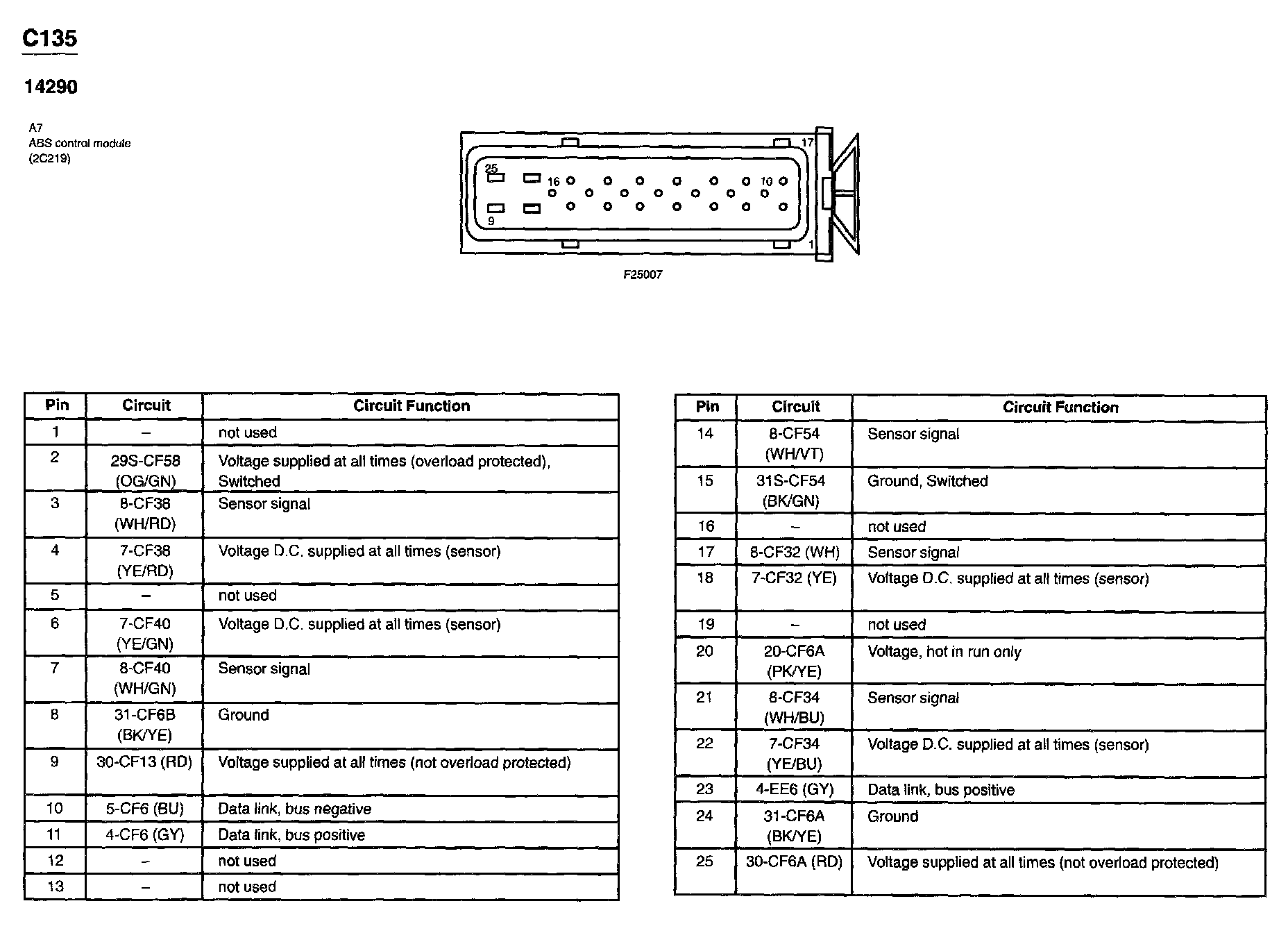

Part 1:

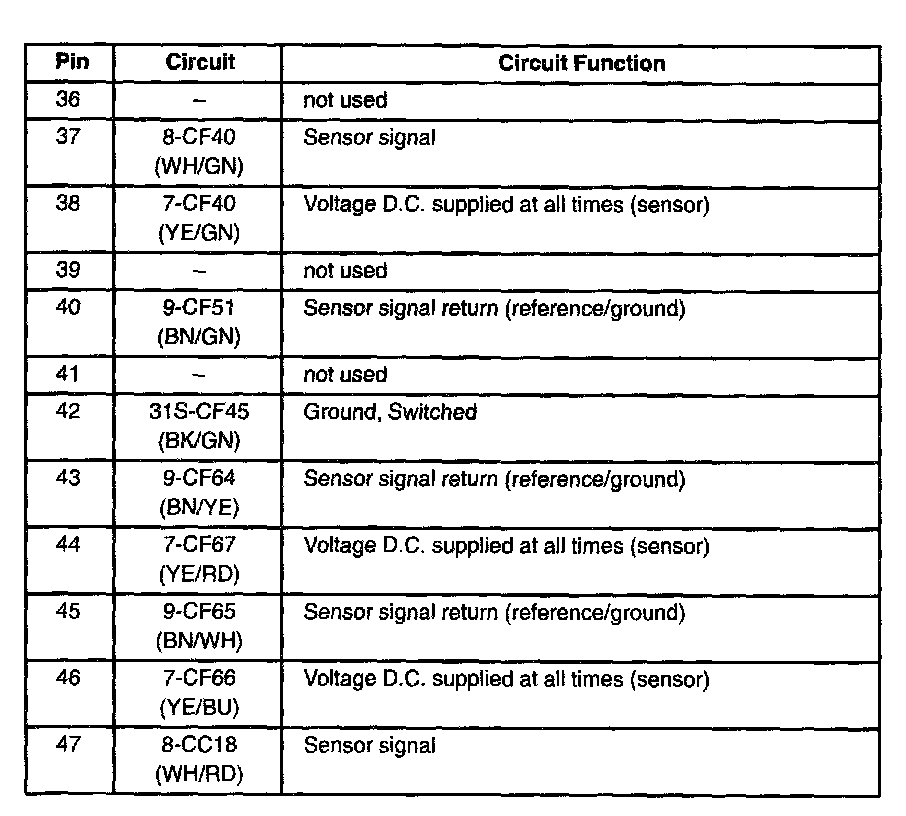

Part 2:
