Portable Support Electronics Module

REMOVAL

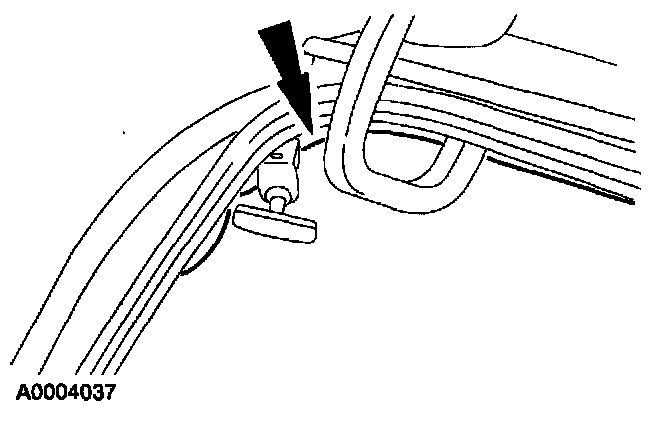

1. Open the luggage compartment and position the LH trim near the rear seat release handle aside.

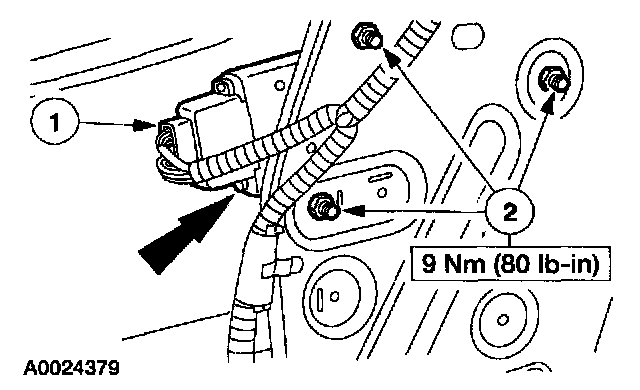

2. Remove the Portable Support Electronics (PSE) module.
1 Disconnect the electrical connector.
2 Remove the nuts.

INSTALLATION
1. To install, reverse the removal procedure.
