Operation CHARM: Car repair manuals for everyone.
Home >> Lincoln >> 2002 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Seat Adjust Switch, Driver Side Front

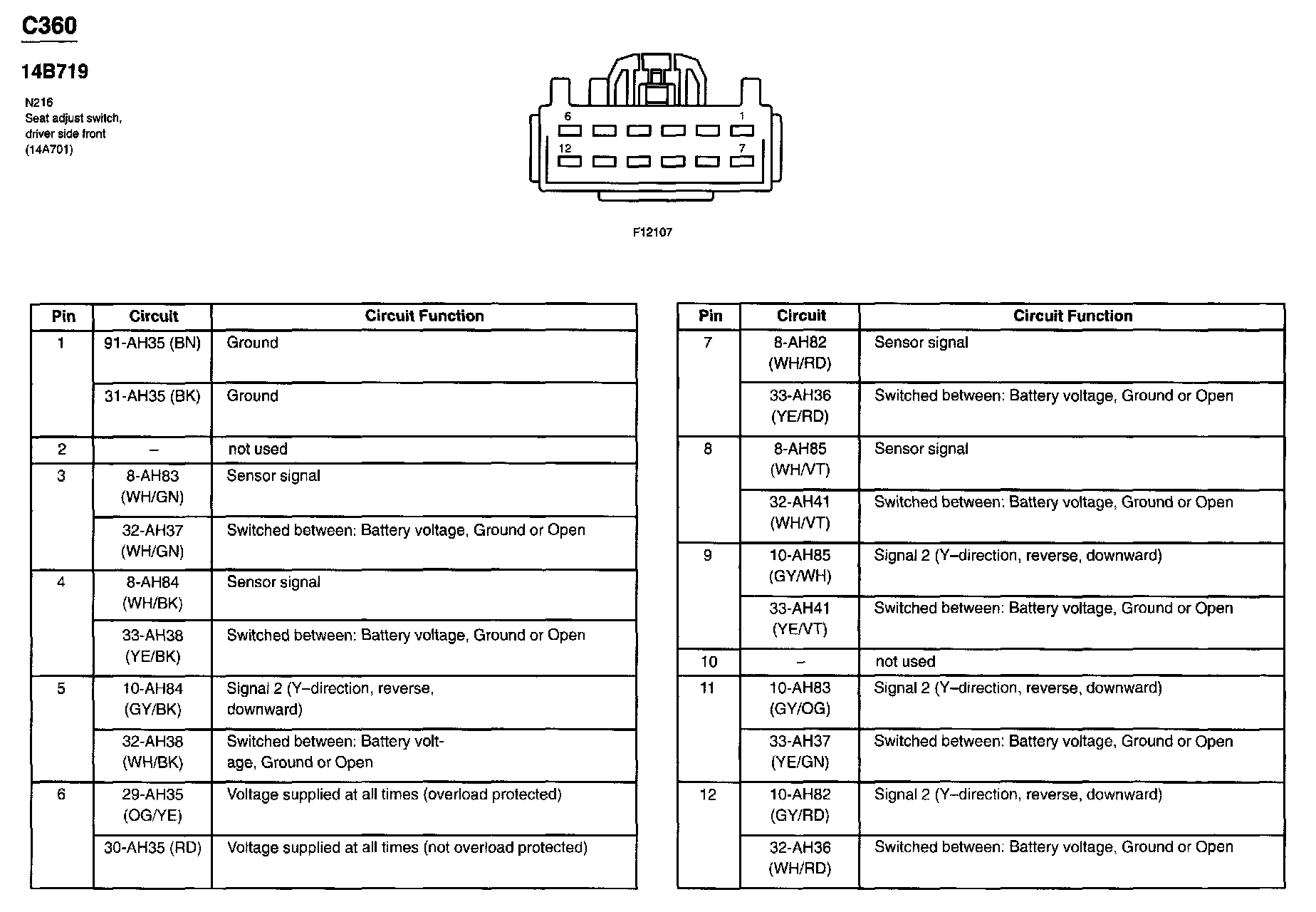

Seat Adjust Switch, Driver Side Front
