Home >> Lincoln >> 2002 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows

Windows

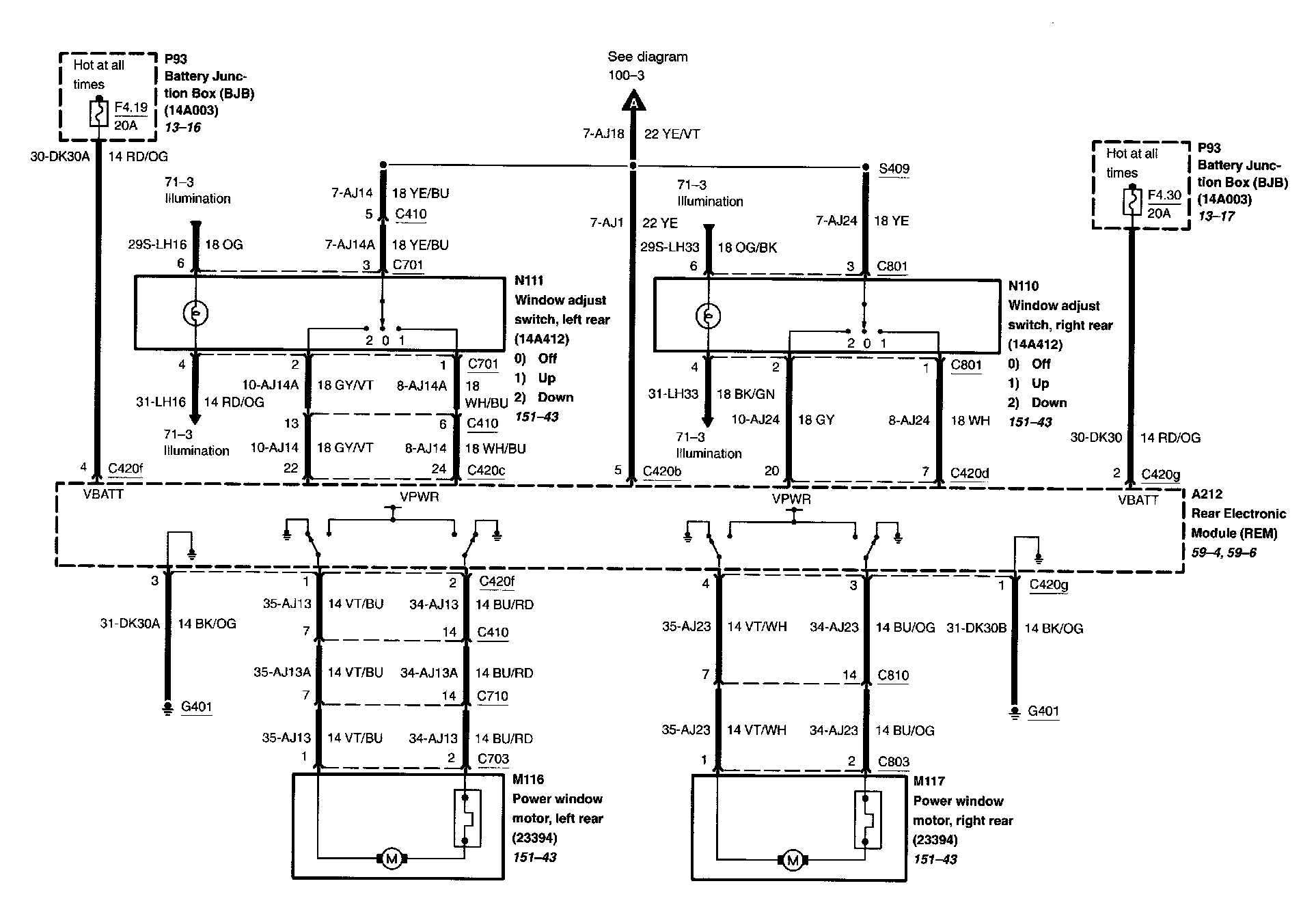

Diagram 100-1:

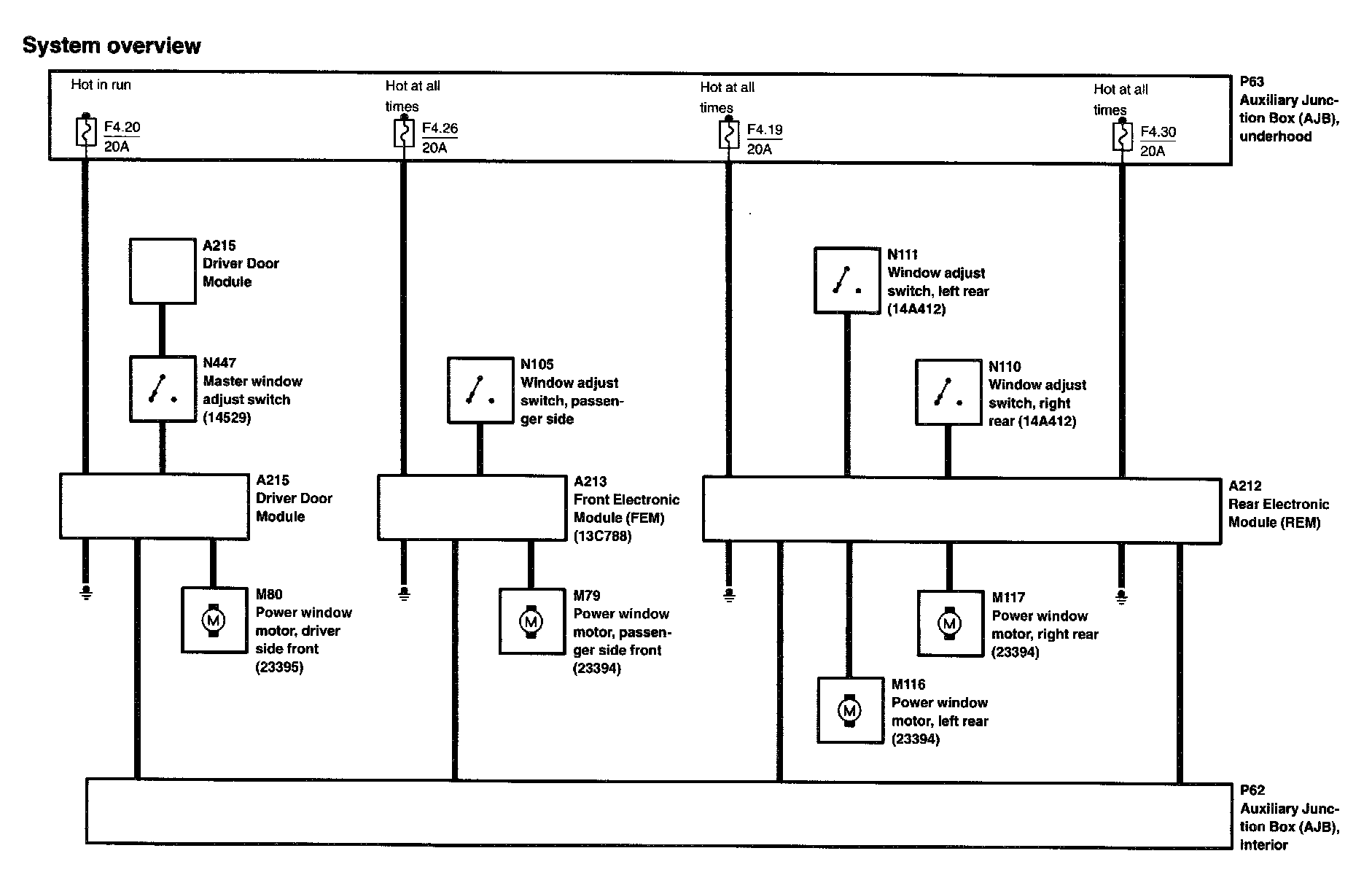

Diagram 100-2:

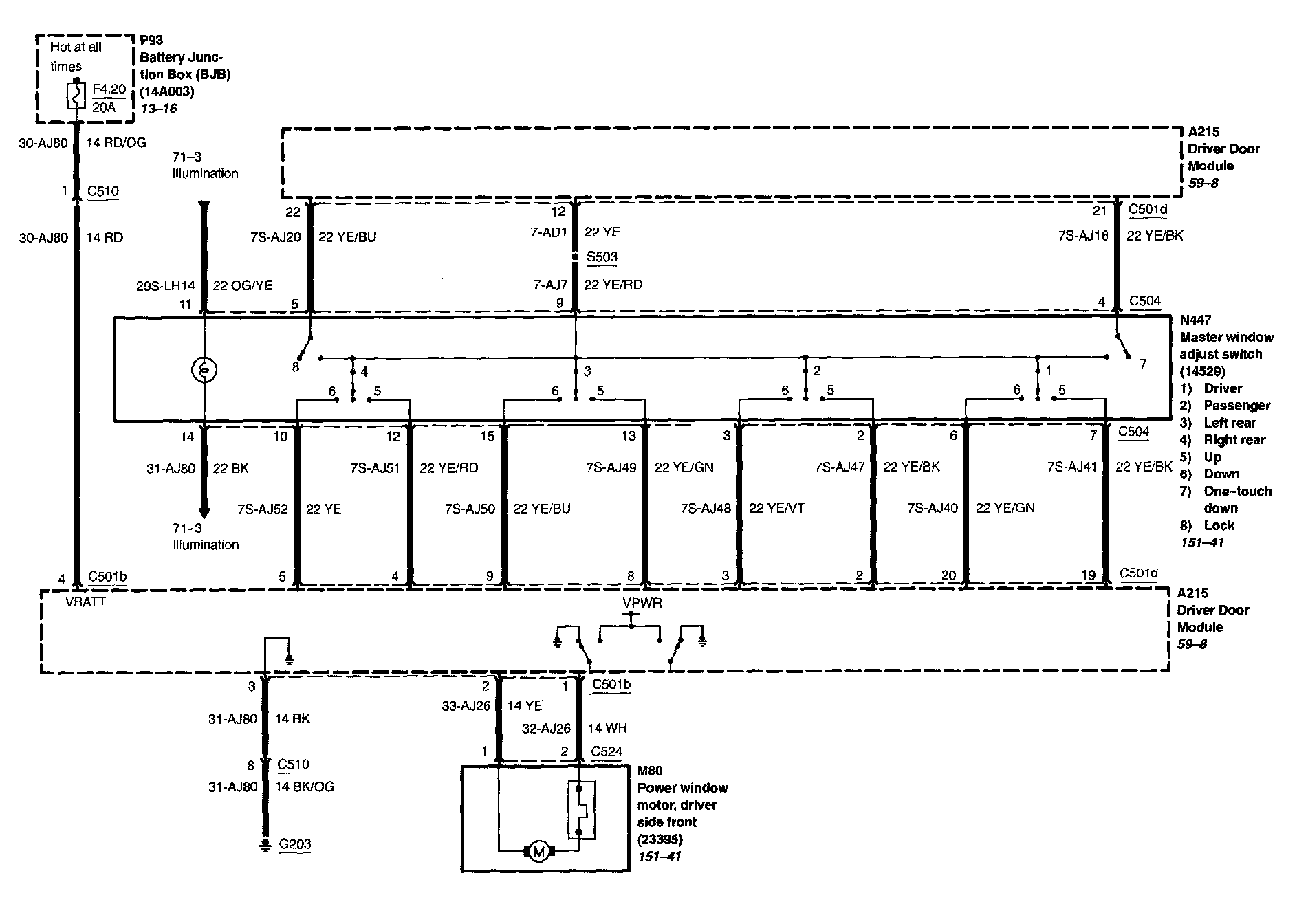

Diagram 100-3:

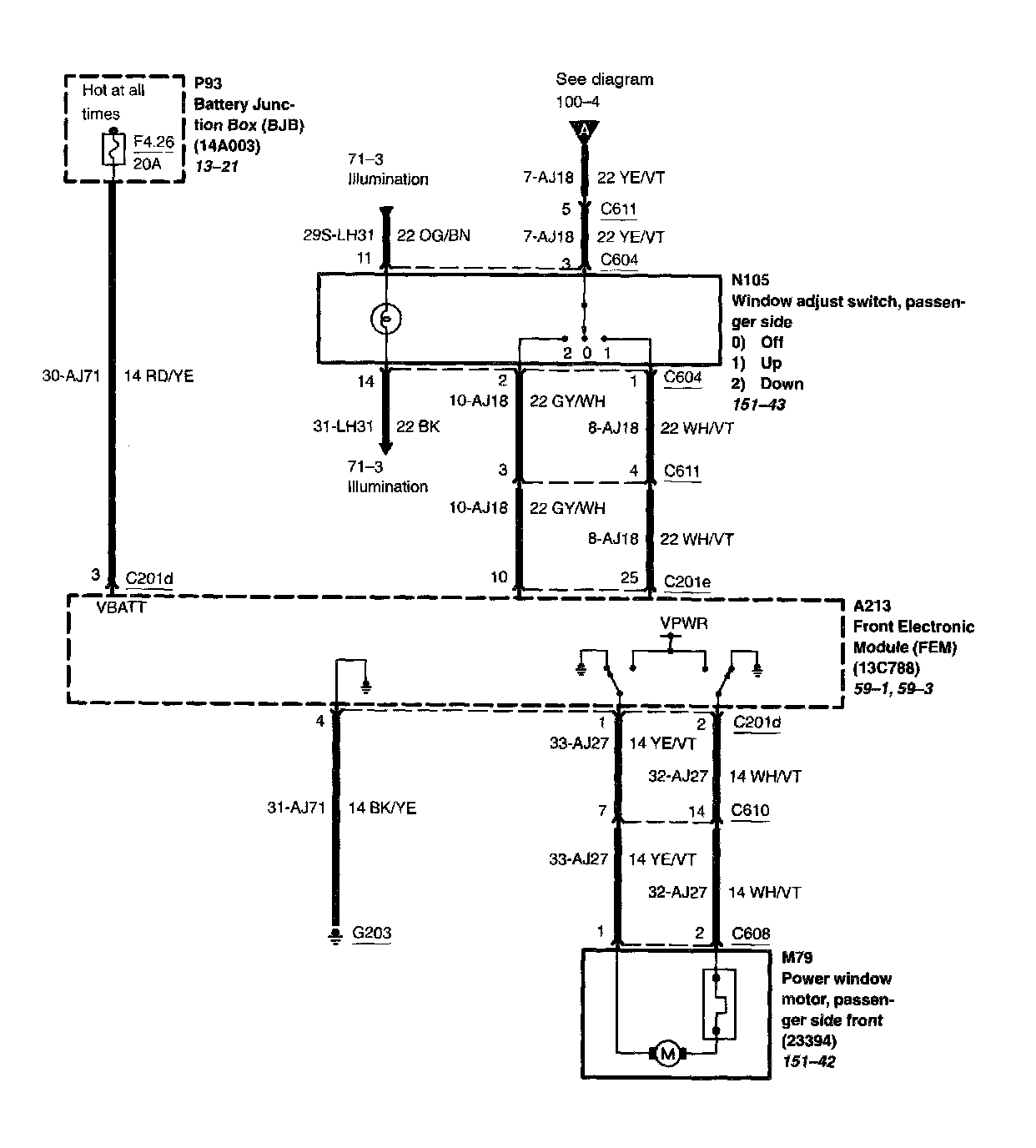

Diagram 100-4:
