Lincoln
>>
2002
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Location Views
>>

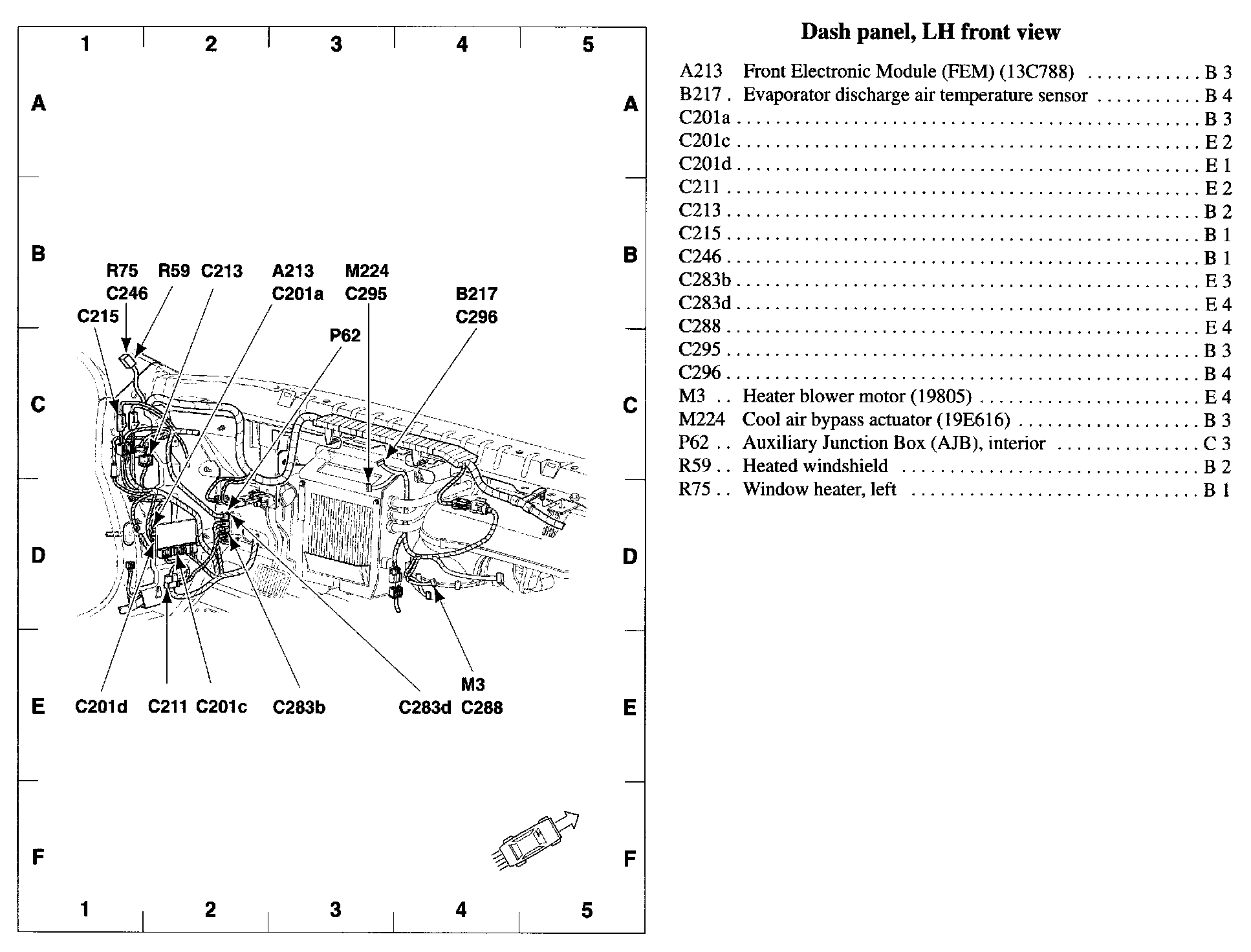

View 151-20 (Dash Panel, LH Front View)
View 151-20 (Dash Panel, LH Front View)
View 151-20:
