Lincoln
>>
2002
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Battery Junction Box
Battery Junction Box

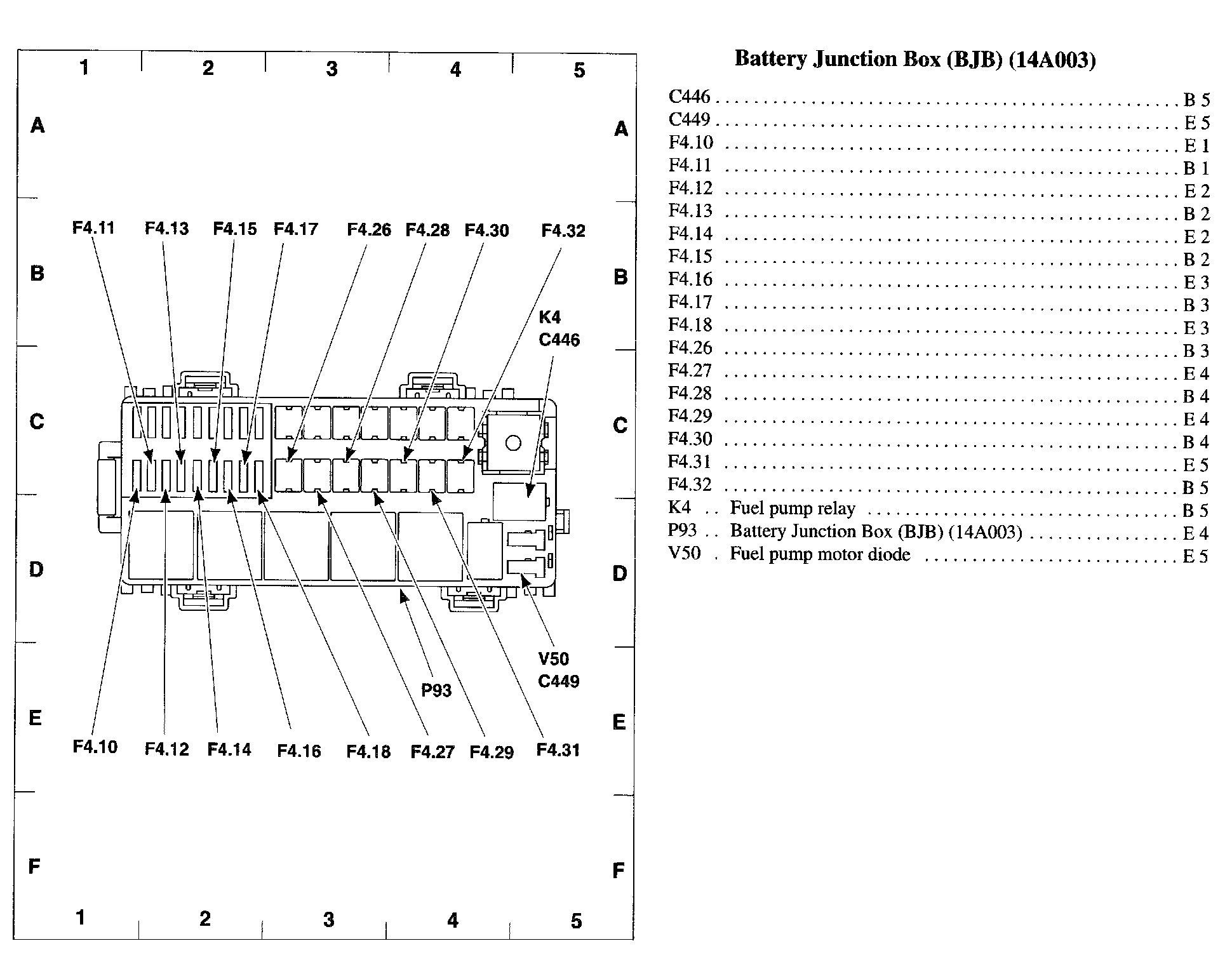

View 151-55:

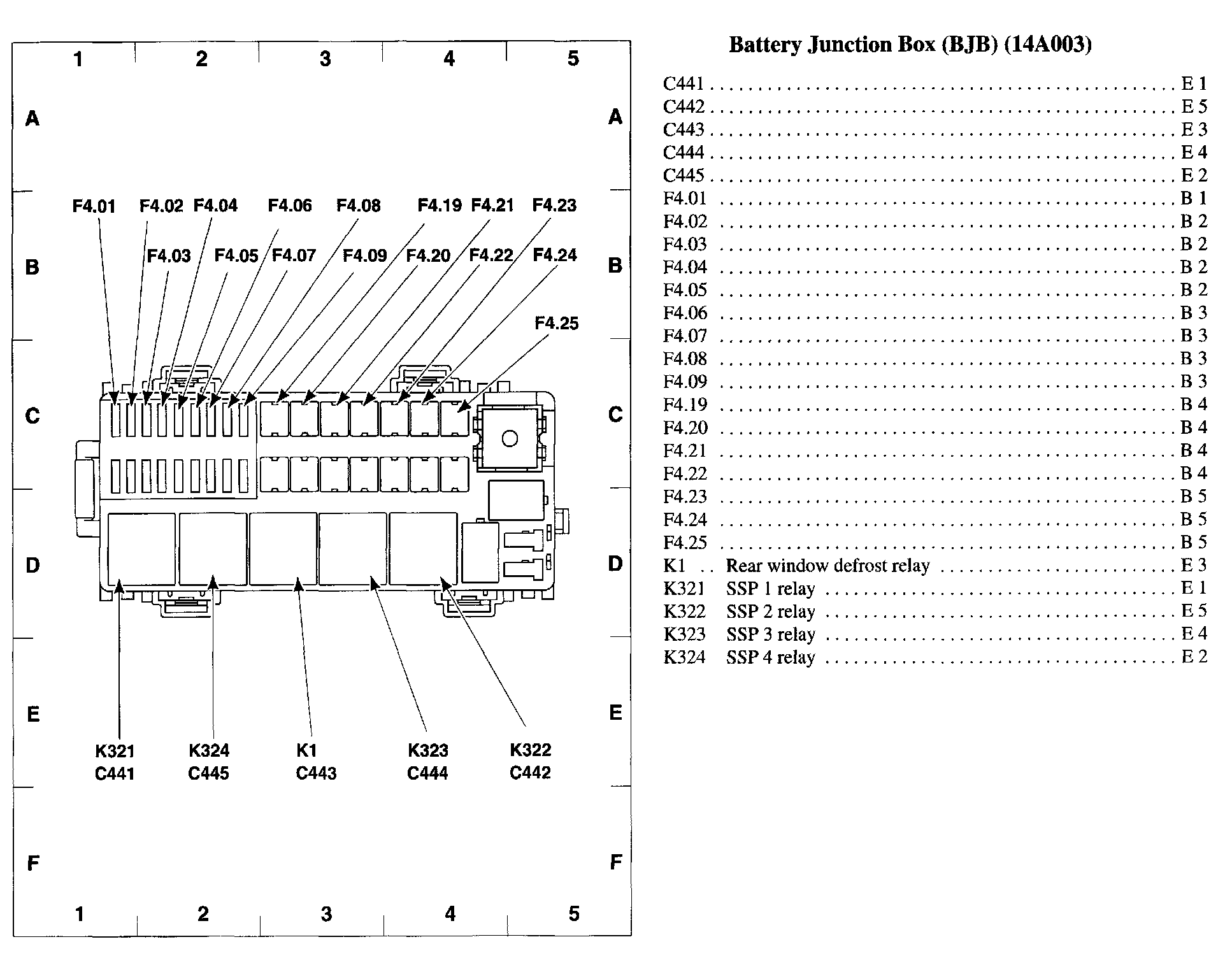

View 151-56:
