Antilock Control, Traction Control and Stability Assist

Anti-Lock Brake System (ABS) Module - Stability Assist

Removal

CAUTION: Before the module is removed, it is necessary to upload the module configuration information to the New Generation STAR (NGS) tester.

1. Disconnect the battery ground cable.

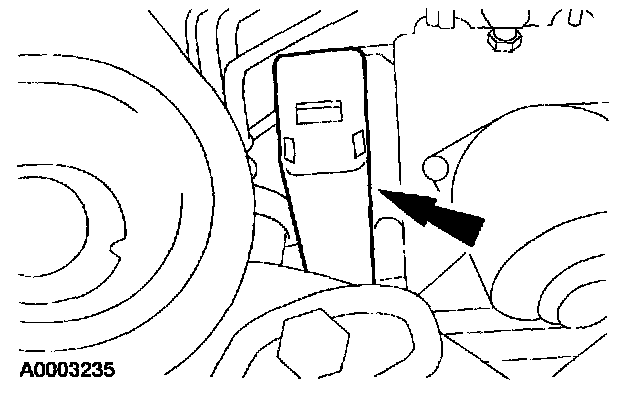

2. Disconnect the anti-lock brake control module electrical connector by lifting up on the release tab.

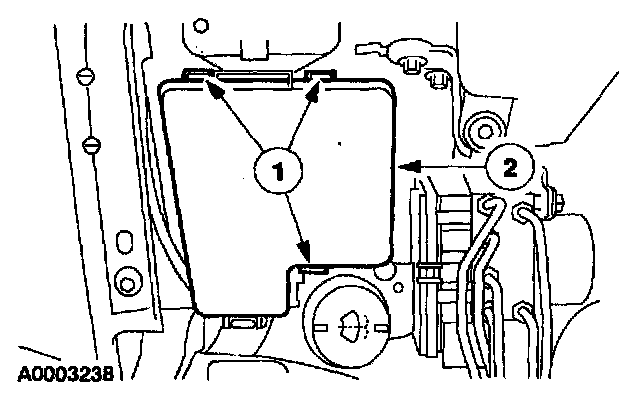

3. Position aside the underhood Auxiliary Junction Box (AJB).
1 Release the underhood AJB clips.
2 Position the underhood AJB aside.

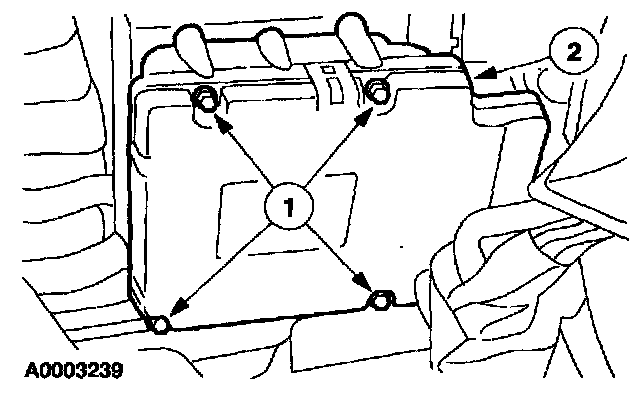

4. Remove the stability assist control module.
1 Remove the bolts.
2 Remove the control module.

Installation

CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the New Generation STAR (NGS) Tester into the module.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.





1. To install, reverse the removal procedure.
