With Manufacturer's Scan Tool (NGS Tester)

On-Board Diagnostics with NGS





Part 1 of 2





Part 2 of 2

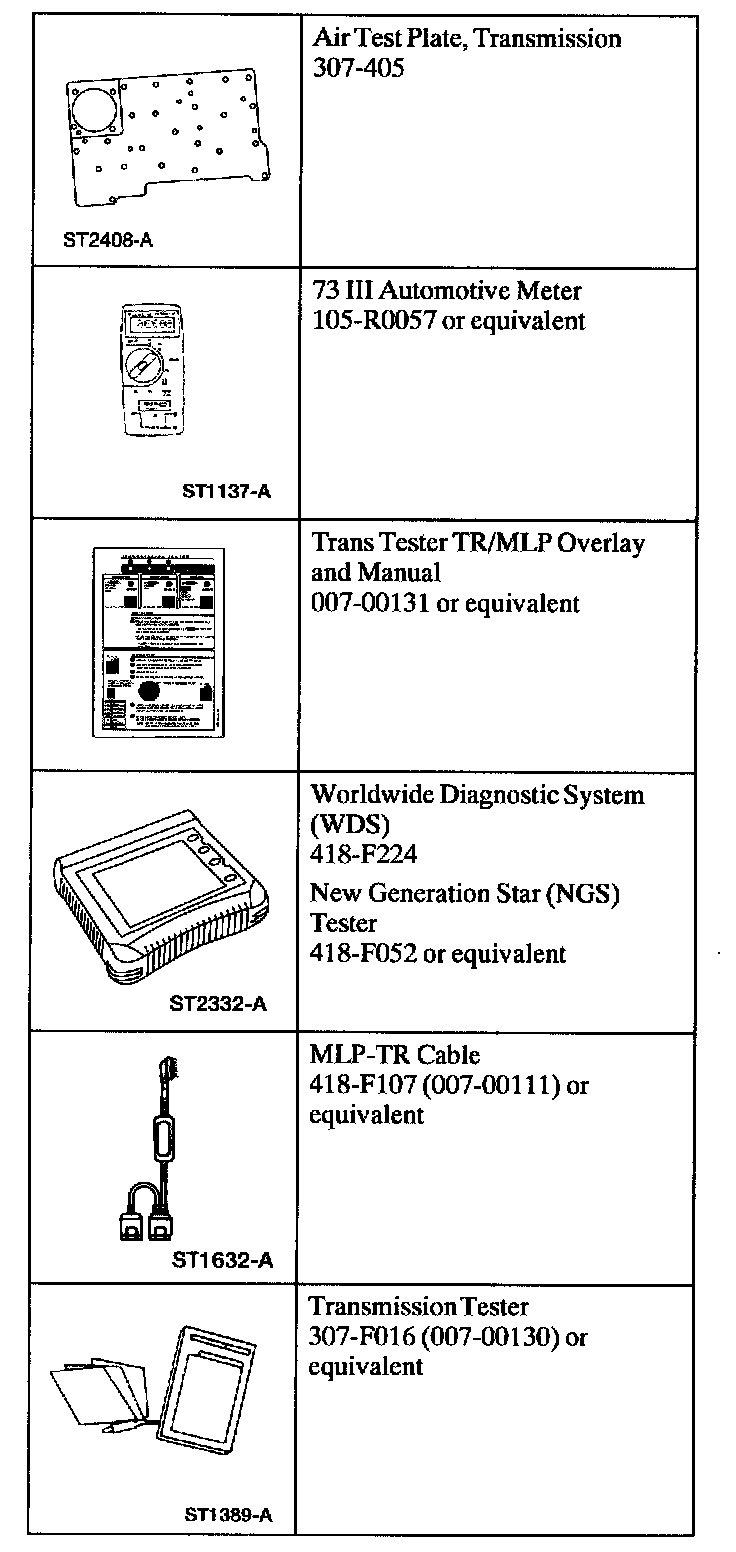

Special Tool(s)

Diagnosing electronically controlled automatic transmissions is simplified using the following procedures. It is important to remember that there is a definite procedure to follow. DO NOT TAKE SHORTCUTS OR ASSUME THAT CRITICAL CHECKS OR ADJUSTMENTS HAVE ALREADY BEEN MADE. Follow the procedures as written to avoid missing critical components or steps. By following the diagnostic sequence, the technician will be able to diagnose and repair the concern the first time.

On-Board Diagnostics with NGS

NOTE: For detailed instruction and other diagnostic methods using the NGS, refer to the NGS tester.

These quick tests should be used to diagnose the powertrain control module and should be carried out in order.
- Quick Test 1.0-Visual Inspection
- Quick Test 2.0-Set Up
- Quick Test 3.0-Key On, Engine Off
- Quick Test 4.0-Continuous Memory
- Quick Test 5.0-Key On, Engine Running
- Special Test Mode
- Wiggle Test Mode
- Output Test Mode
- PCM Reset Mode
- Clearing DTCs
- OBD-II Drive Cycle
- Other NGS Features
Other diagnostic methods include the following:
- Parameter Identification (PID) Access Mode
- Freeze Frame Data Access Mode
- Oxygen Sensor Monitor Mode
