Rear

REMOVAL

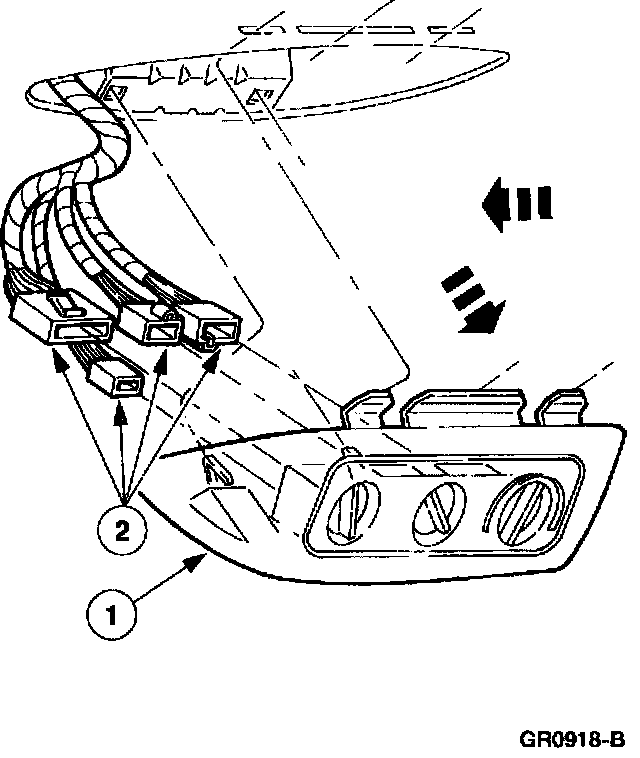

1. Remove the auxiliary climate control assembly.
1 Slide the assembly forward and downward.
2 Disconnect the electrical connectors.







2. Remove the auxiliary climate control assembly from the bezel.
1 Disconnect the electrical connectors.
2 Remove the screws.
3 Remove the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
