Torque

Torque Specifications

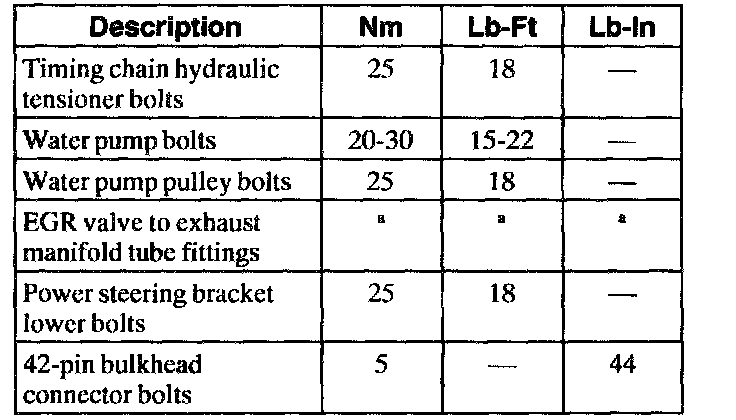

Part 1 of 4

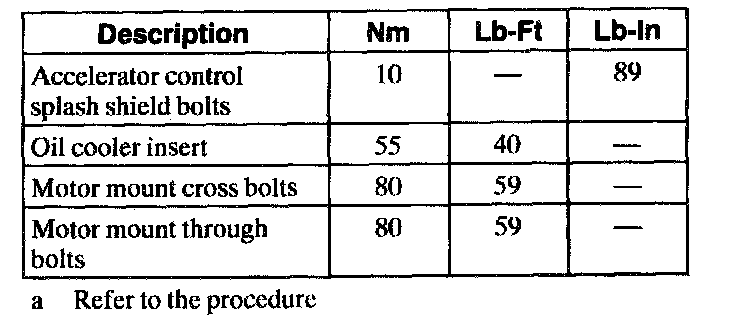

Part 2 of 4

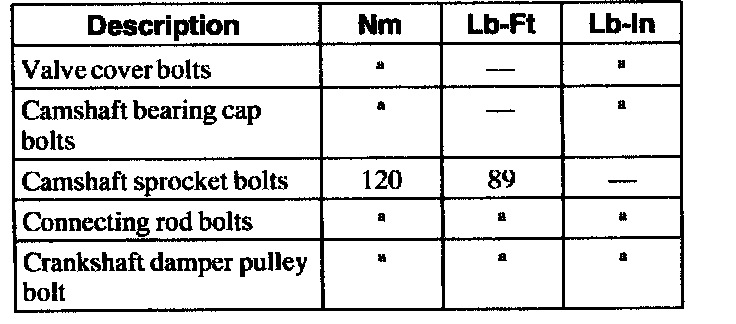

Part 3 of 4

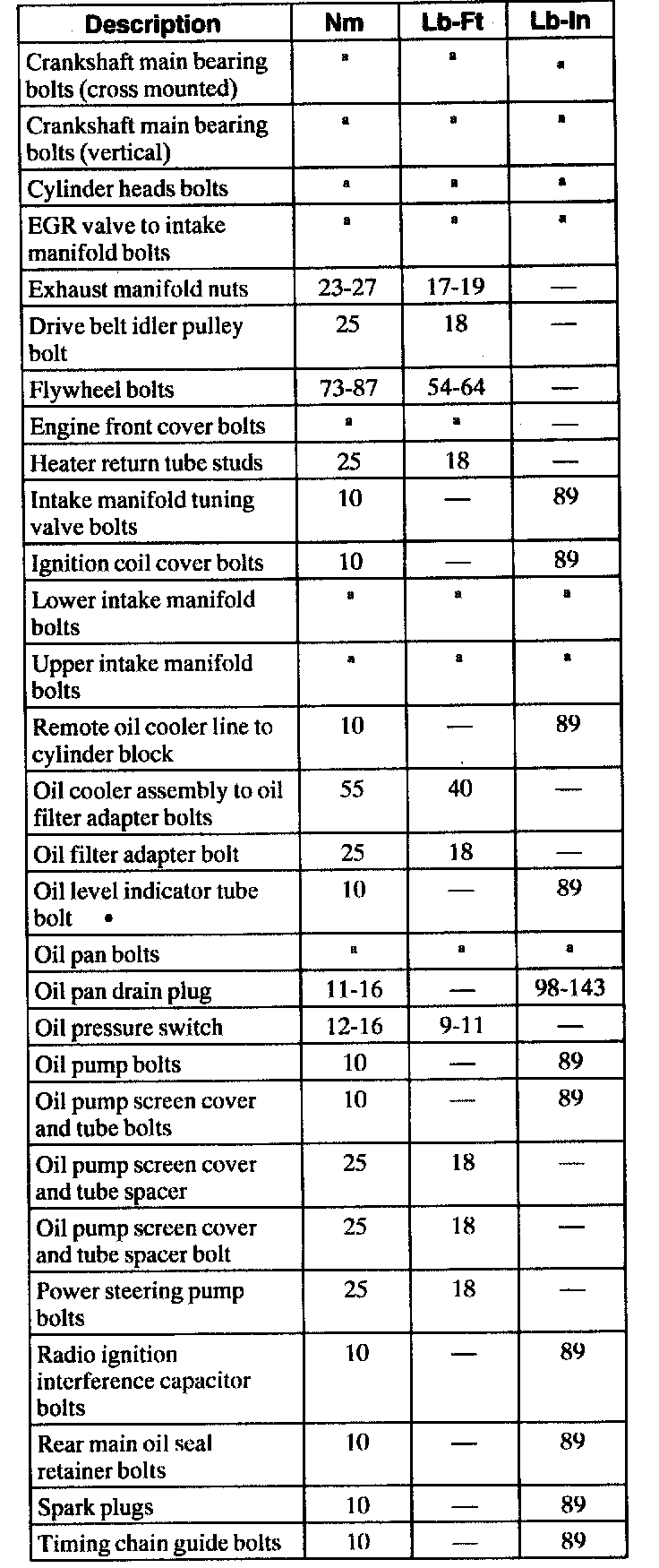

Part 4 of 4

Footnote:

a - Refer to the applicable service and repair procedure for available torque specification and/or tightening sequence for the specific components.
