D: Isolation Valve, Dump

DTCS C1194, C1196, C1198, C1200, C1202, C1204, C1206, C1208, C1210, C1212, C1214, C1216-Isolation Valve, Dump

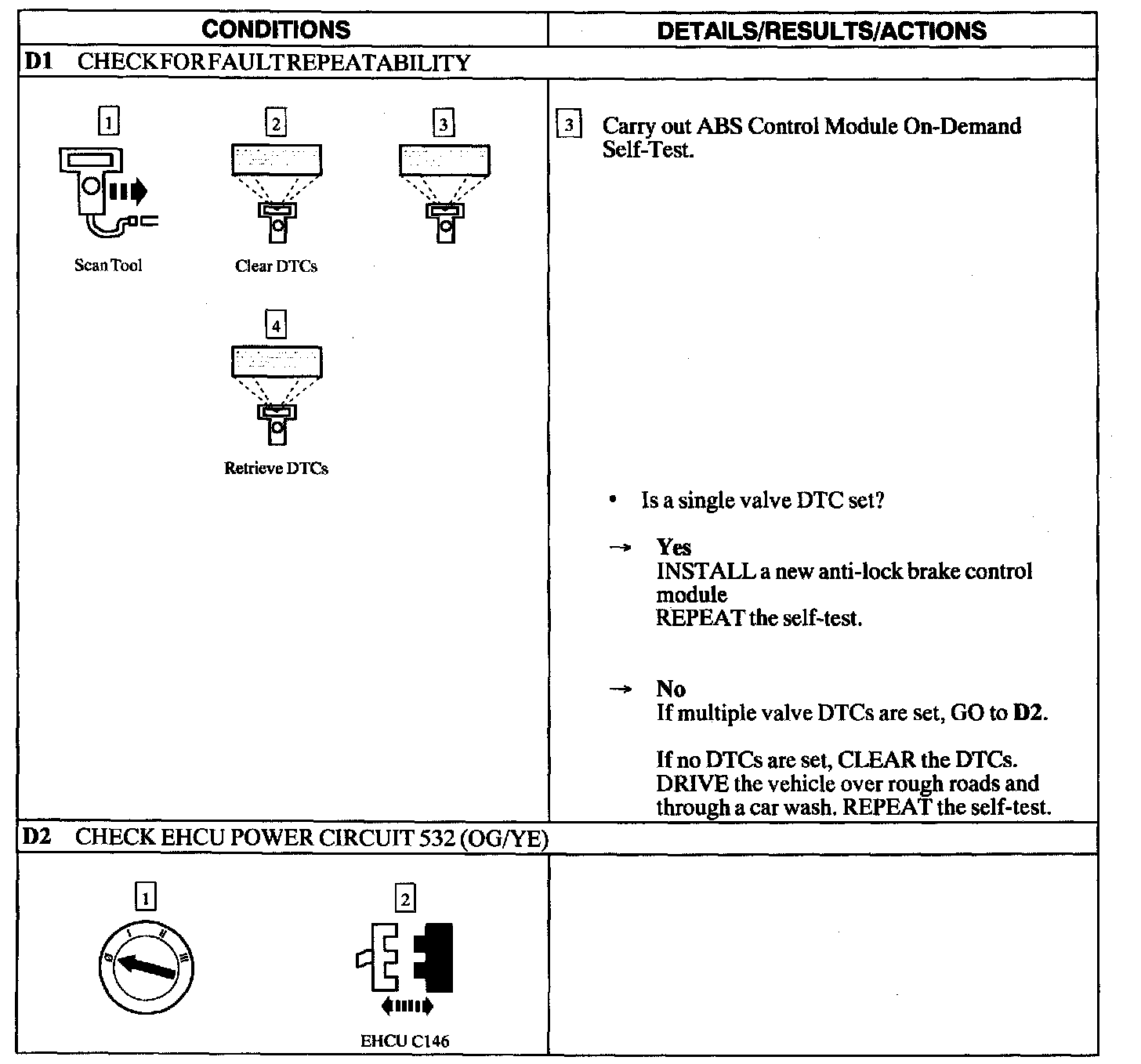

Test D1-D2:

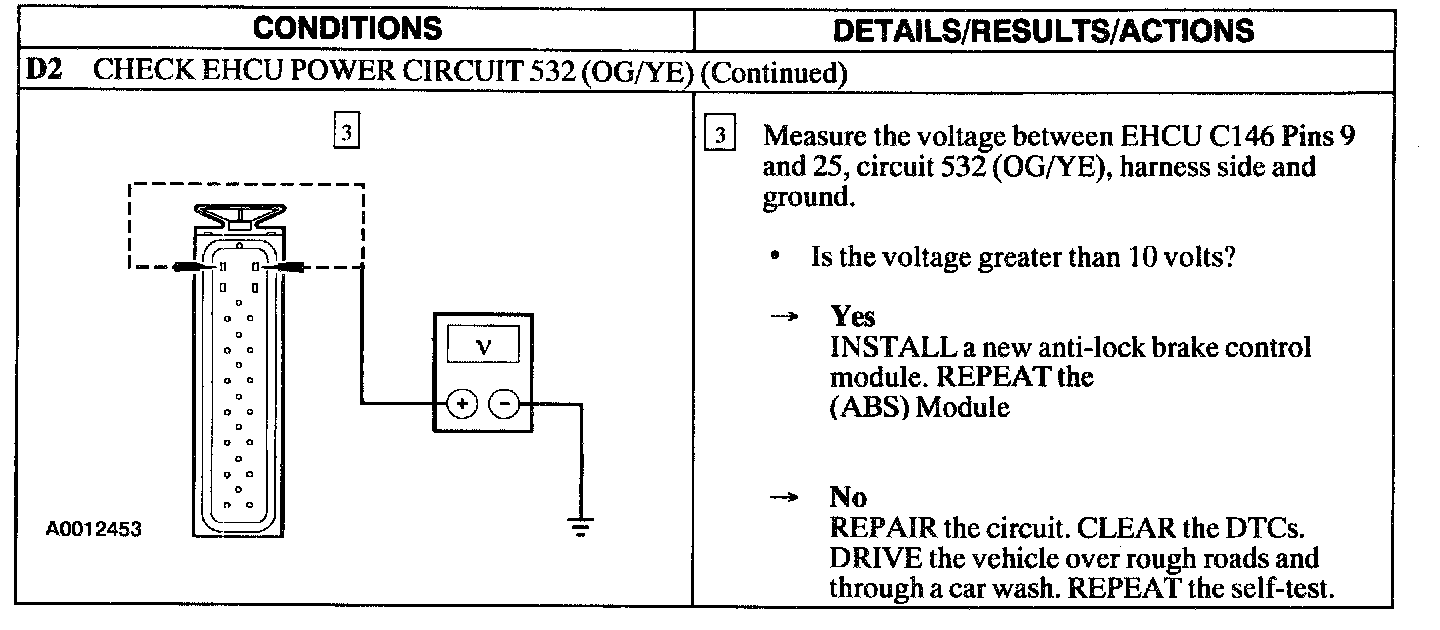

Test D2 Continued:
