Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal-With Retainer Plate

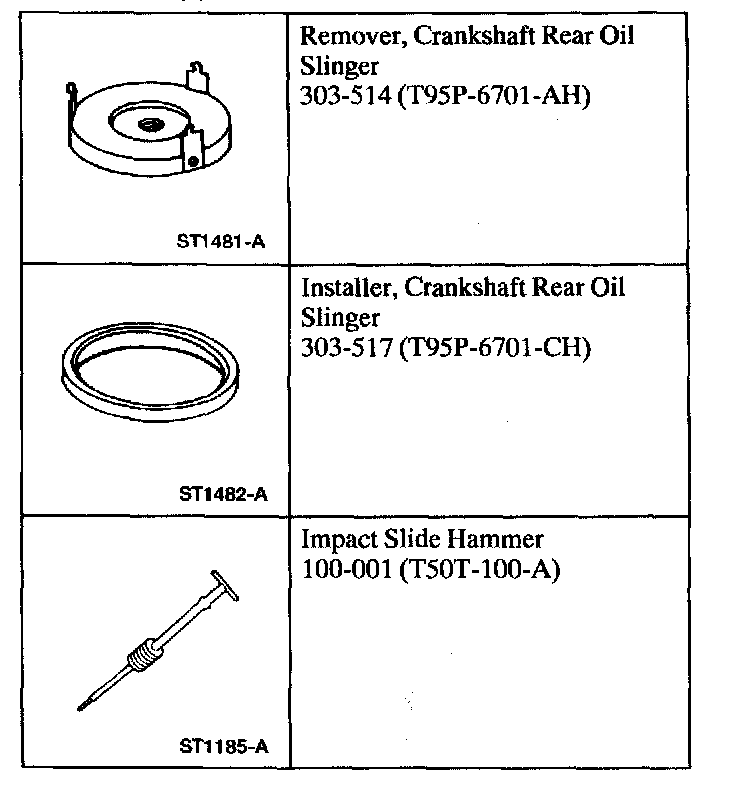

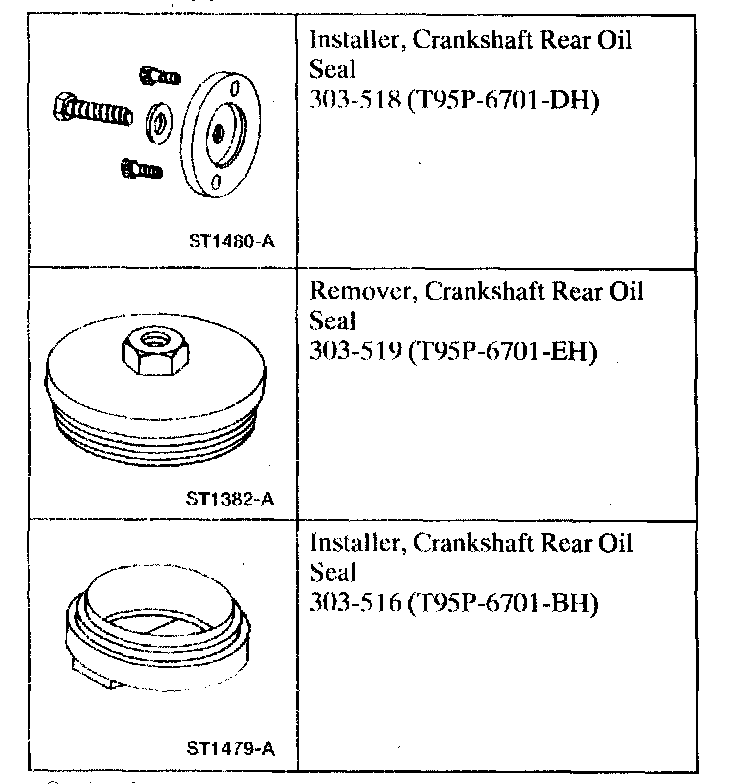

Special Tool(s)

Removal

1. Remove the flywheel.





2. Using the special tools, remove the crankshaft oil slinger.

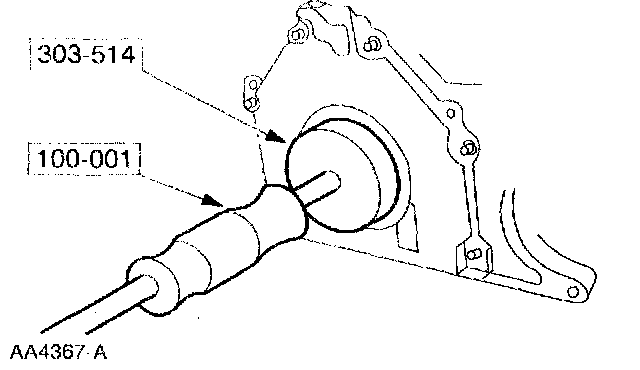

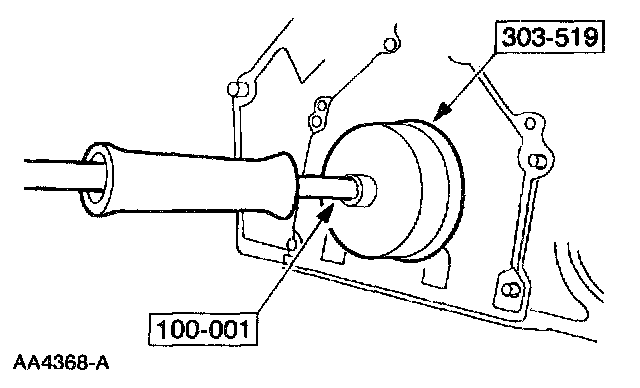

3. Using the special tools, remove the crankshaft rear oil seal.

Installation





1. Using the special tool, install the crankshaft rear oil seal.

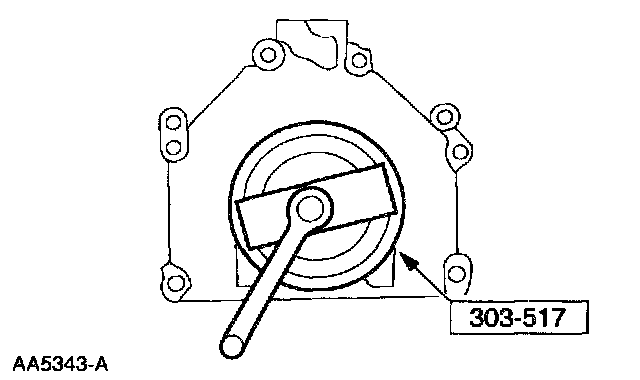

2. Using the special tools, install the crankshaft oil slinger.
3. Install the flywheel.
