Trunk/Liftgate Sensor/Switch (For Alarm): Service and Repair

LIFTGATE DISARM SWITCH

REMOVAL
1. Remove the liftgate trim panel.
2. Position the watershield aside.

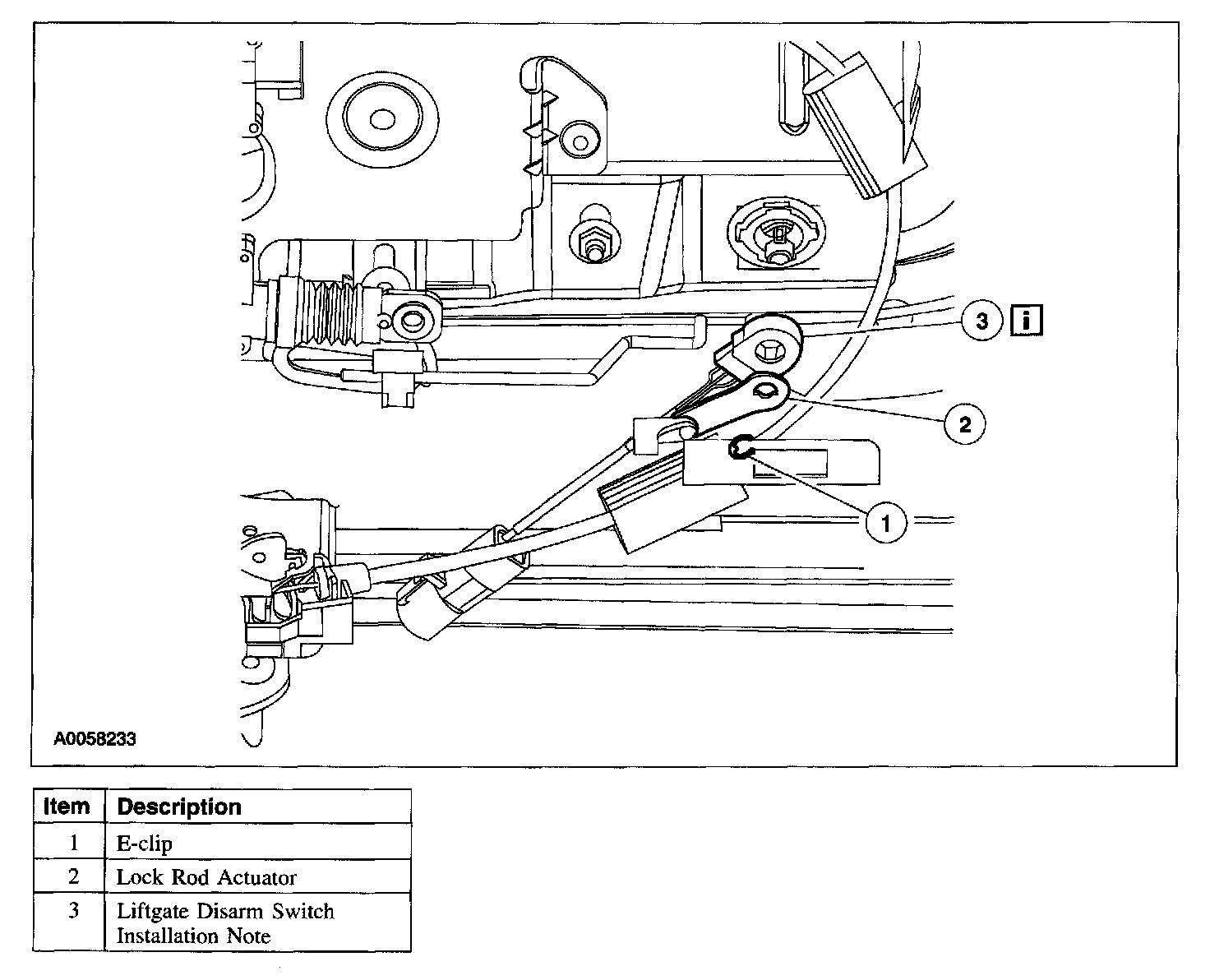

3. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.

Item 3: Liftgate Disarm Switch Installation Note
1. The door disarm switch mark must be positioned towards the harness side of the switch prior to installation.
