Test F

PINPOINT TEST F: NAVIGATION SYSTEM DOES NOT OPERATE CORRECTLY - THE DISPLAY SCREEN IS INOPERATIVE

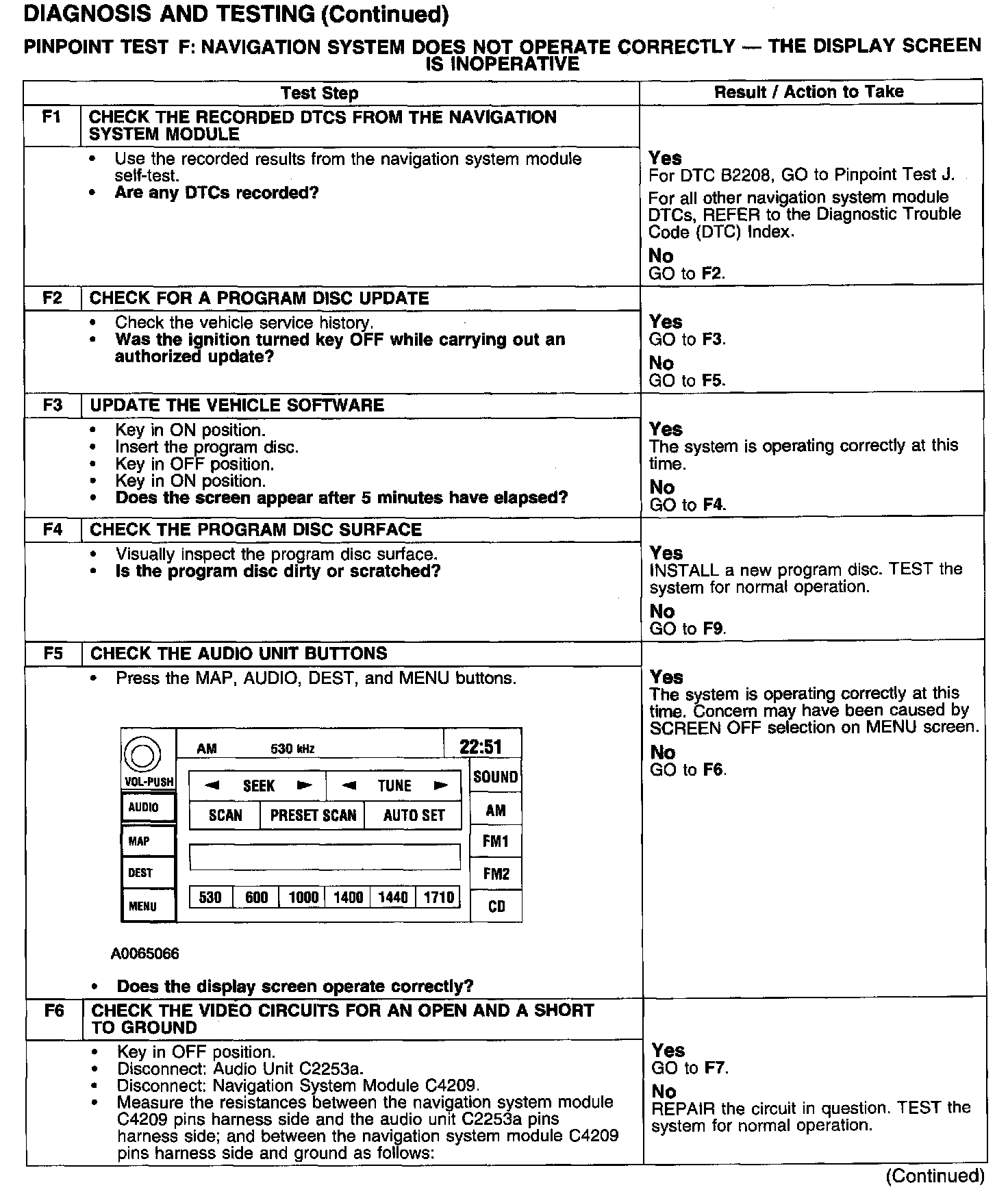

Test F1-F6:

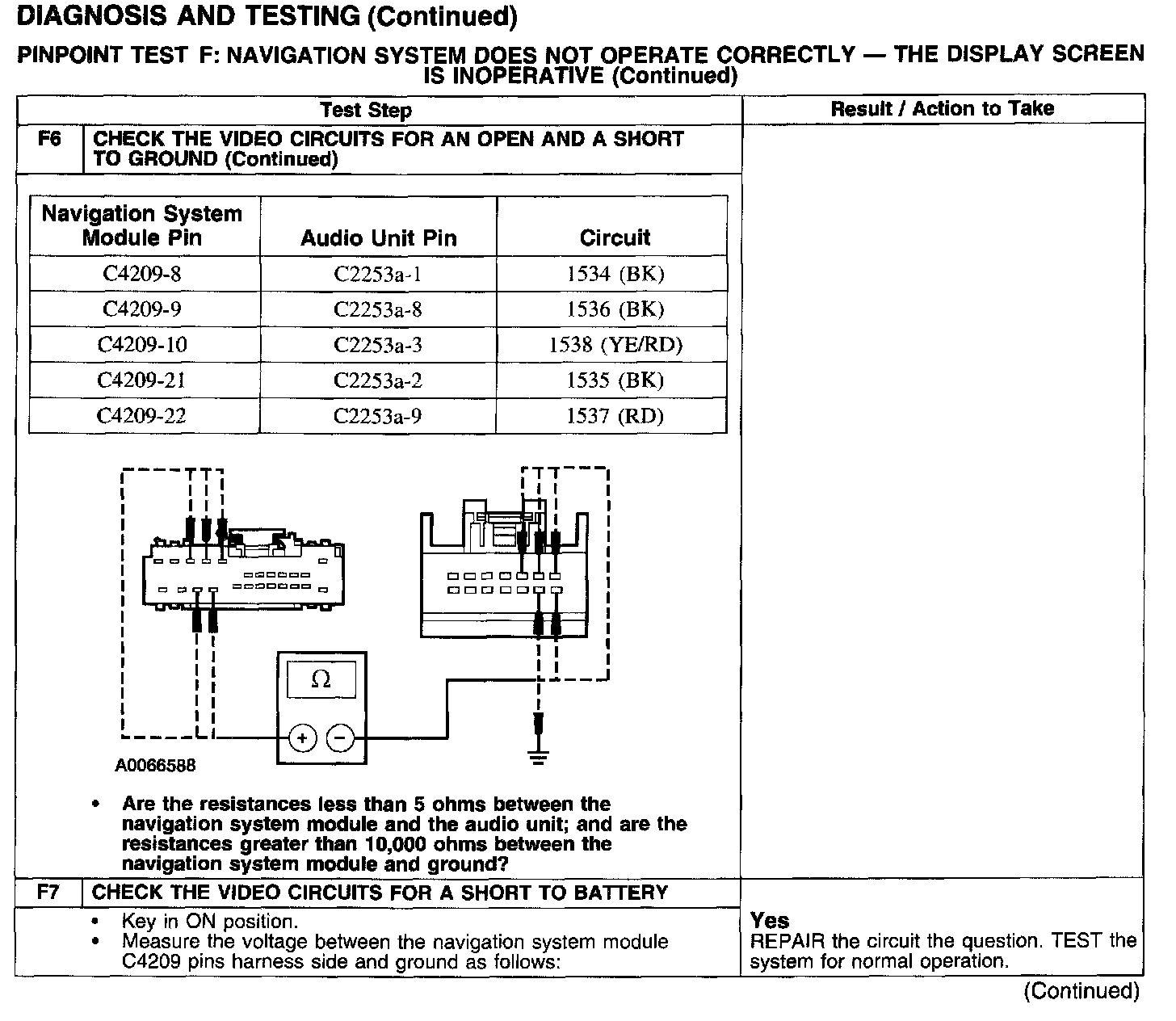

Test F6-F7:

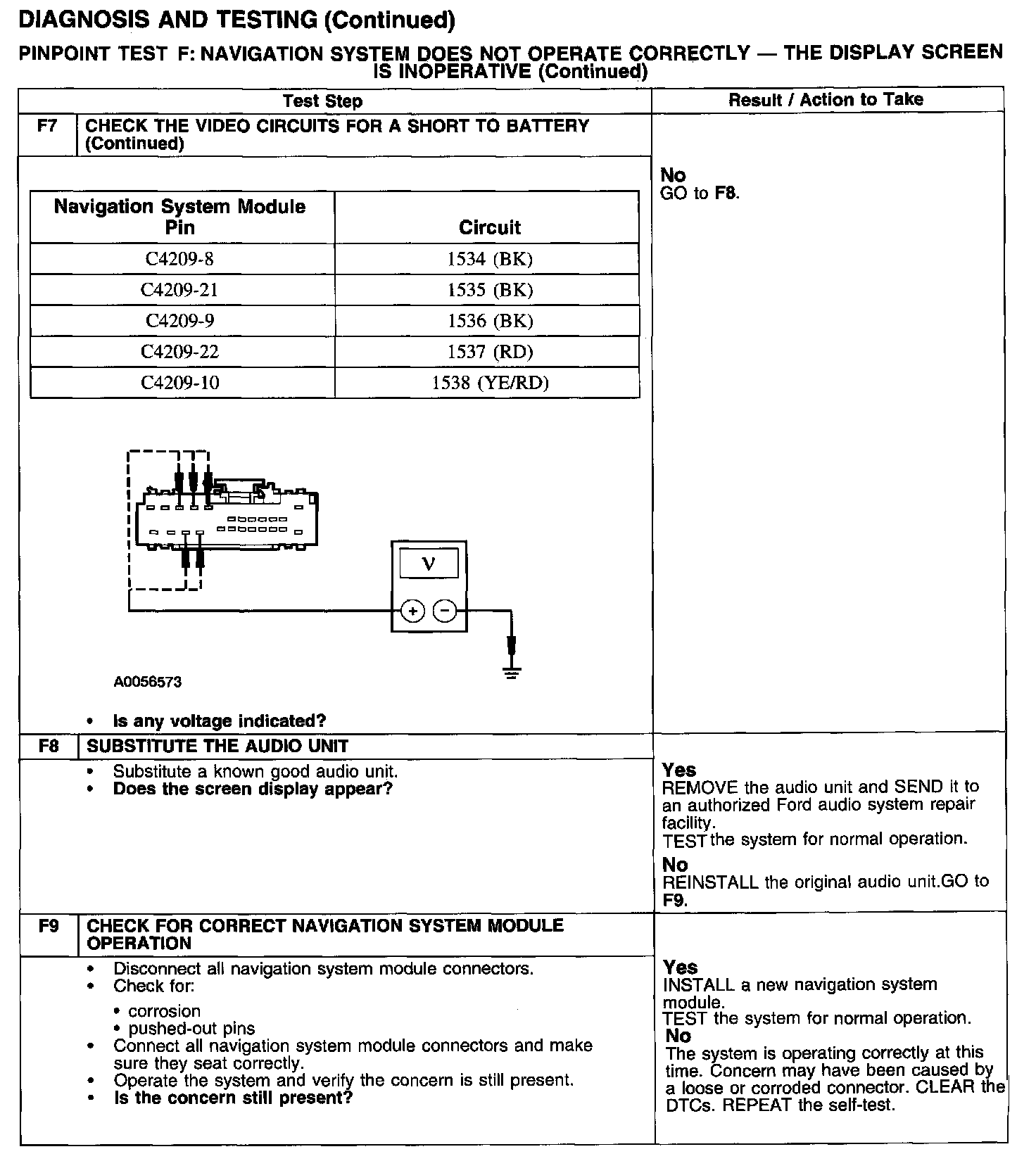

Test F7-F9:






Normal Operation
The audio unit display is controlled by the navigation system module. Video color is provided through circuits 1534 (BK), 1535 (BK), and 1536 (BK). Circuit 1537 (RD) provides the color synchronization and circuit 1538 (YE/RD) is the video signal return.

Possible Causes
- circuit 1534 (BK) open or shorted
- circuit 1535 (BK) open or shorted
- circuit 1536 (BK) open or shorted
- circuit 1537 (RD) open or shorted
- circuit 1538 (YE/RD) open or shorted
- navigation system module
- audio unit
