Front Fender: Service and Repair

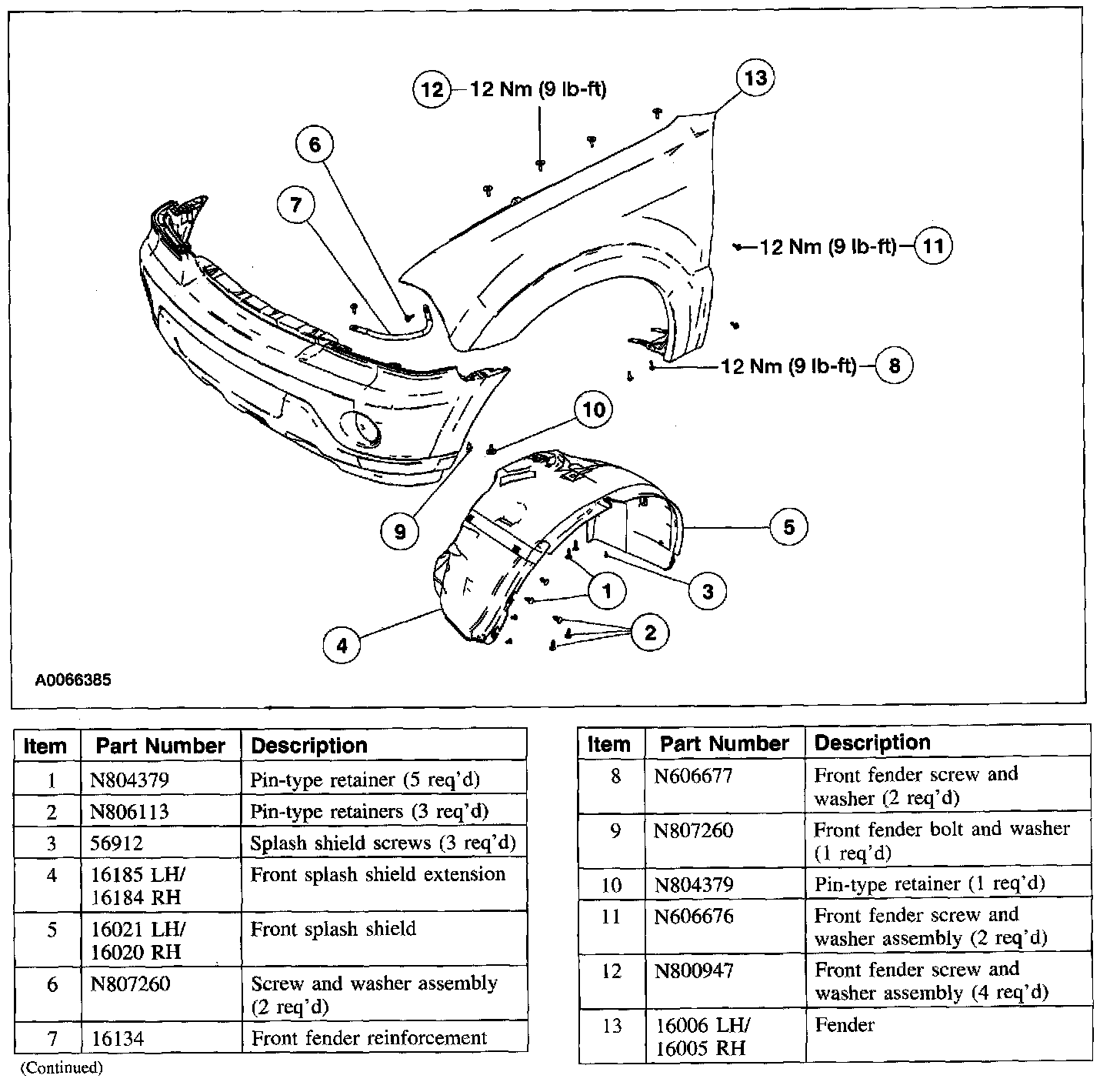

FENDERNOTE: LH side shown. RH side similar.
1.
Remove the headlamp assembly.
2.
Remove the components in the order indicated in the illustration and table. To remove individual components, only carry out the listed steps.
3.
NOTE: Transfer components as necessary.
To install, reverse the removal procedure.
