Test I

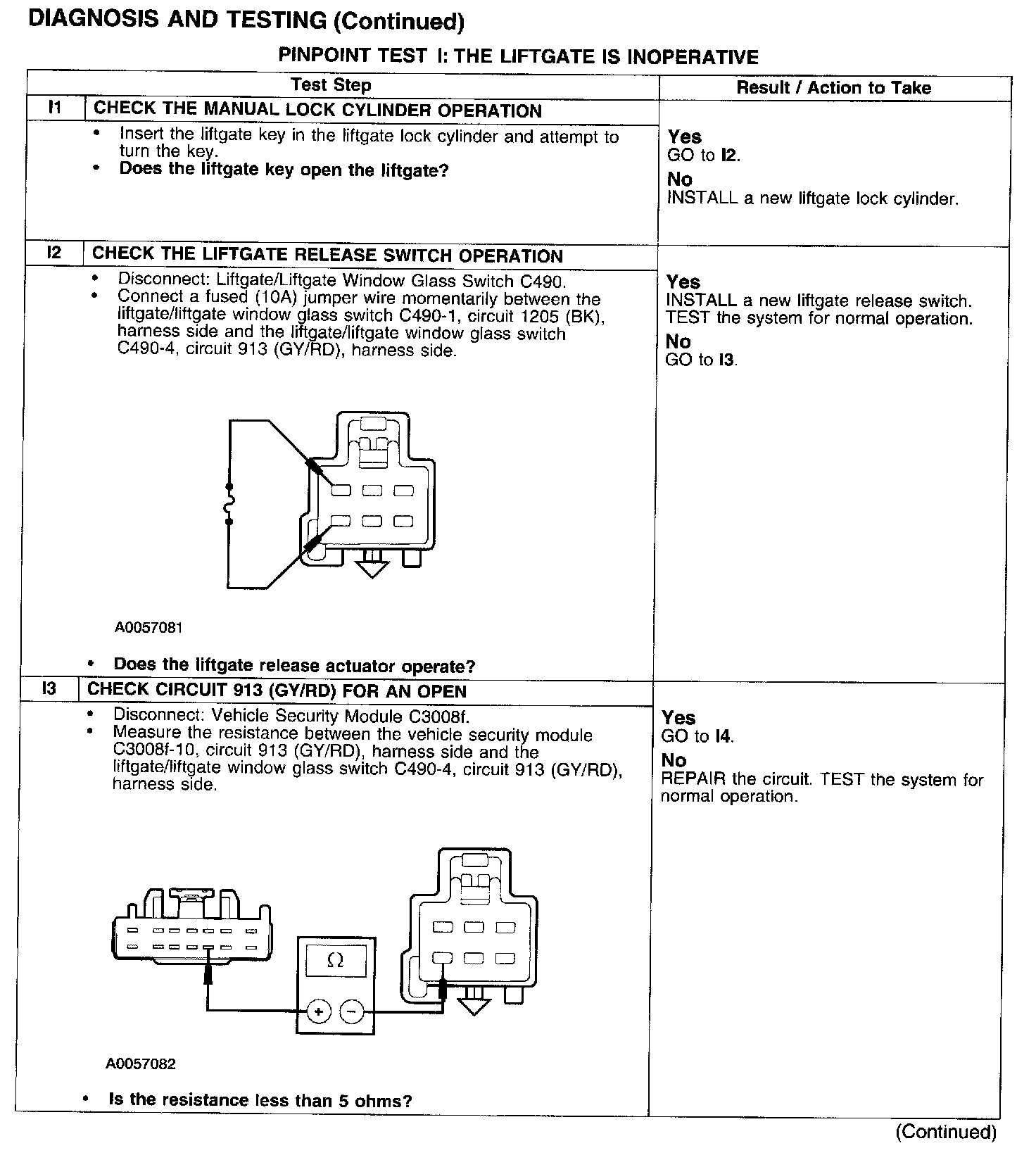

PINPOINT TEST I: THE LIFTGATE IS INOPERATIVETest I1-I3:
Test I4-I6:

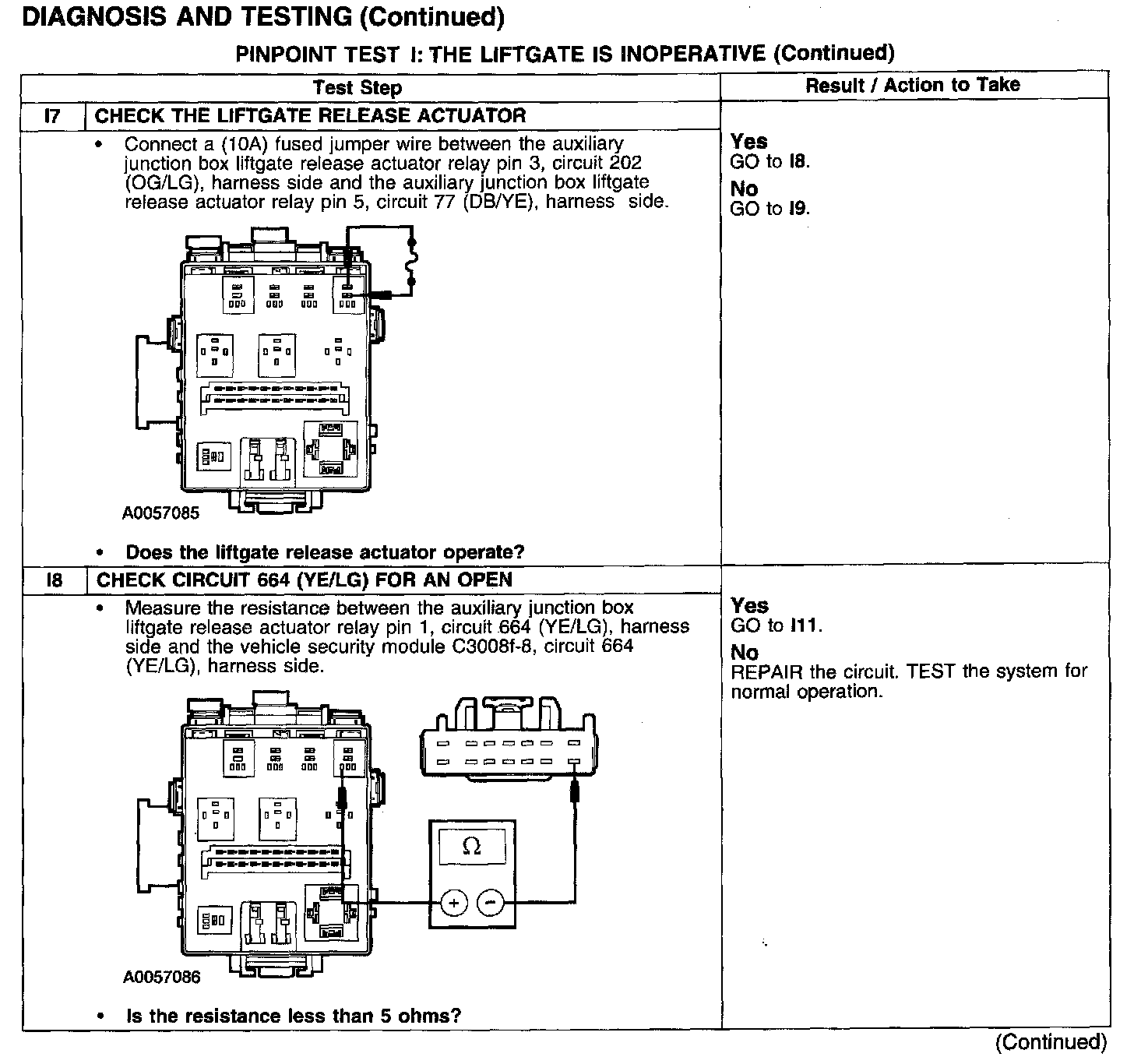

Test I7-I8:

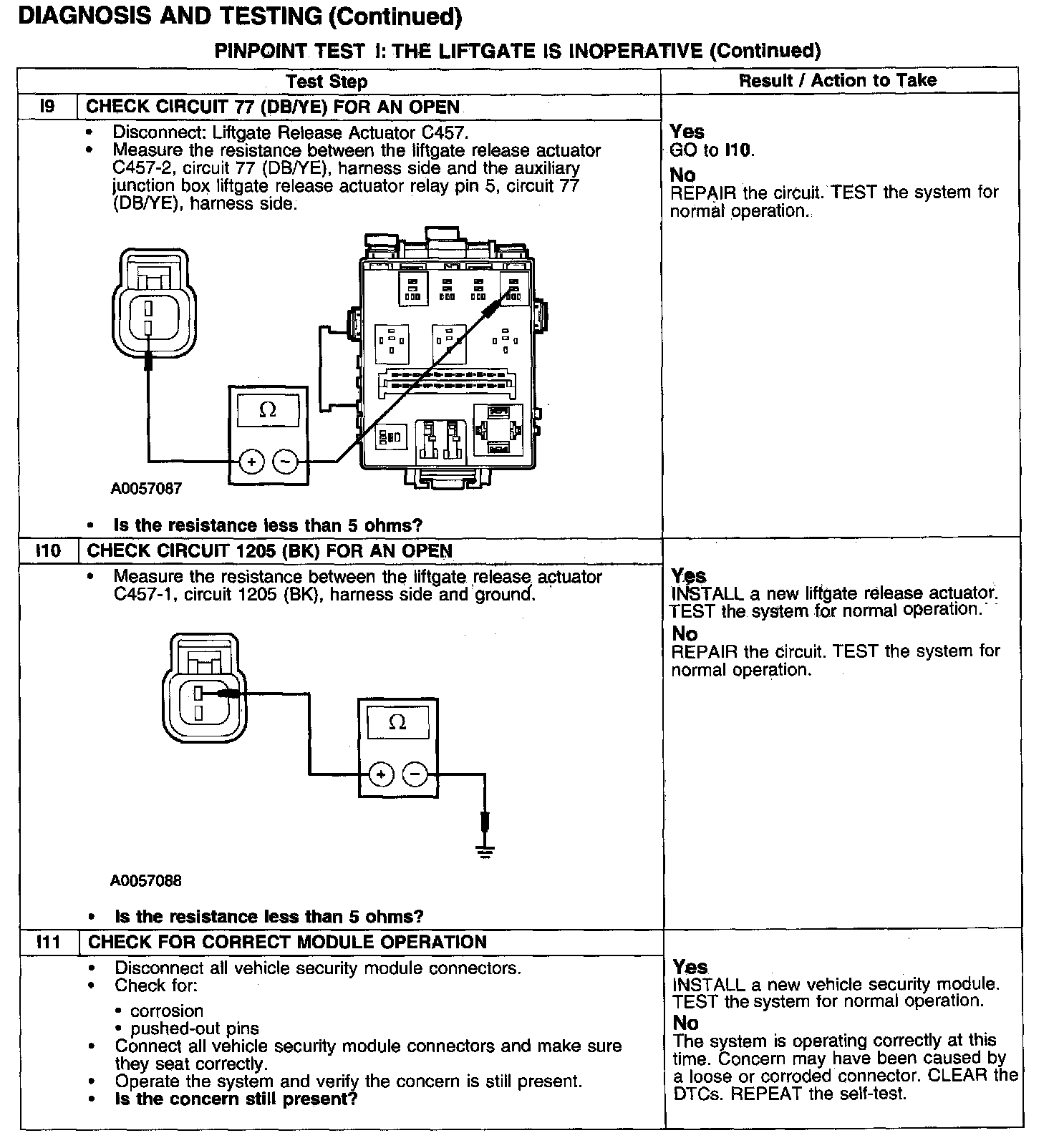

Test I9-I11:
Normal Operation
If all of the doors are unlocked, the button on the liftgate may be pressed to activate the liftgate release actuator. The liftgate needs to be manually lifted until the liftgate struts can assist in opening the liftgate to the full-open position. The key may be inserted and turned in the liftgate cylinder, with all of the doors unlocked, to activate the liftgate release actuator. Again, the liftgate needs to be manually lifted until the liftgate struts can assist in opening the liftgate to the full-open position.
Possible Causes
- circuit 1205 (BK) open
- circuit 913 (GY/RD) open
- circuit 202 (OG/LG) open
- circuit 77 (DB/YE) open
- circuit 664 (YE/LG) open
- liftgate release switch
- liftgate release actuator
- liftgate release actuator relay
- vehicle security module
