Test D

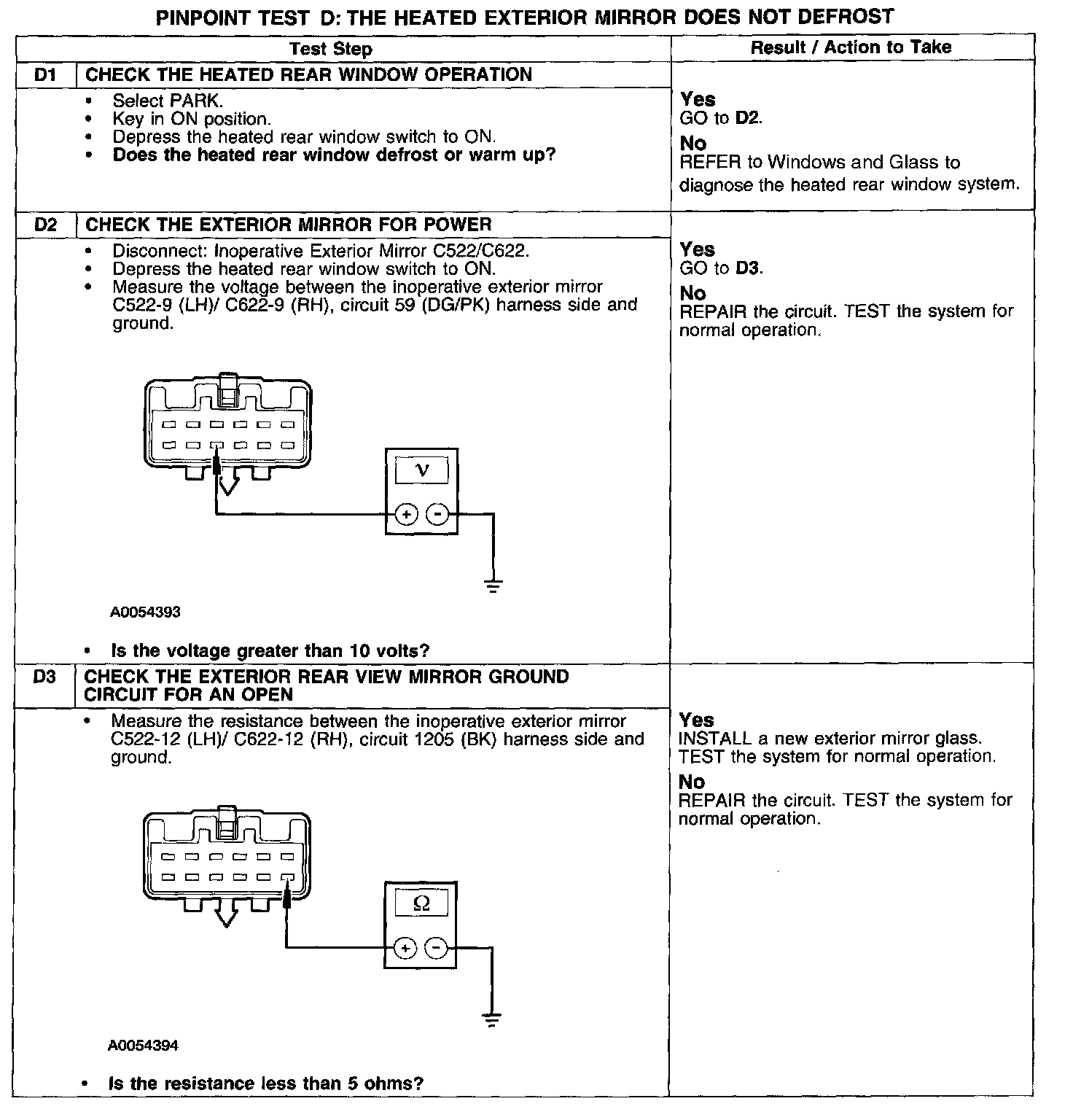

PINPOINT TEST D: THE HEATED EXTERIOR MIRROR DOES NOT DEFROSTTest D1-D3:
Normal Operation Under normal operation when the rear window defrost is ON the exterior
mirrors receive power from the heated grid relay through circuit 59 (DG/PK) and ground through circuit 1205 (BK).
Possible Causes -
Open in circuit 1205 (BK).
-
Open in circuit 59 (DG/PK).
