Test A

PINPOINT TEST A: THE POWER SEAT IS INOPERATIVE - PASSENGER

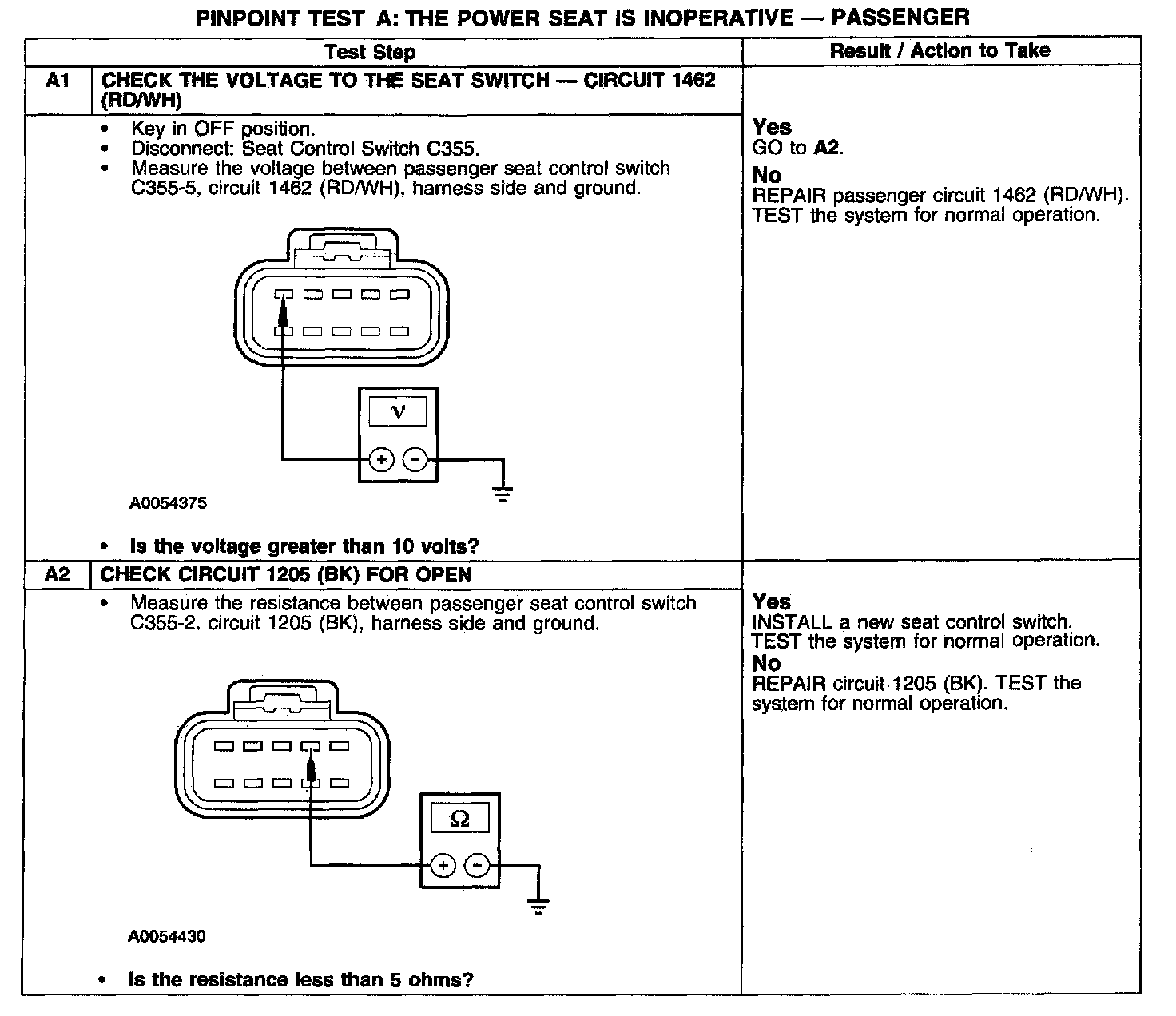

Test A1-A2:






Normal Operation
The passenger power seat switch is powered by battery voltage on circuit 1462 (RD/WH) and is supplied ground on circuit 1205 (BK).

Possible Causes
An inoperative power passenger seat can be caused by:
- fuse.
- wiring, terminals, or connectors.
- a faulty passenger power seat switch.
