Sensor, Front

Front Wheel Speed Sensor and Sensor Ring

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the front wheel and tire assembly.

Part 1 Of 2:




Part 2 Of 2:

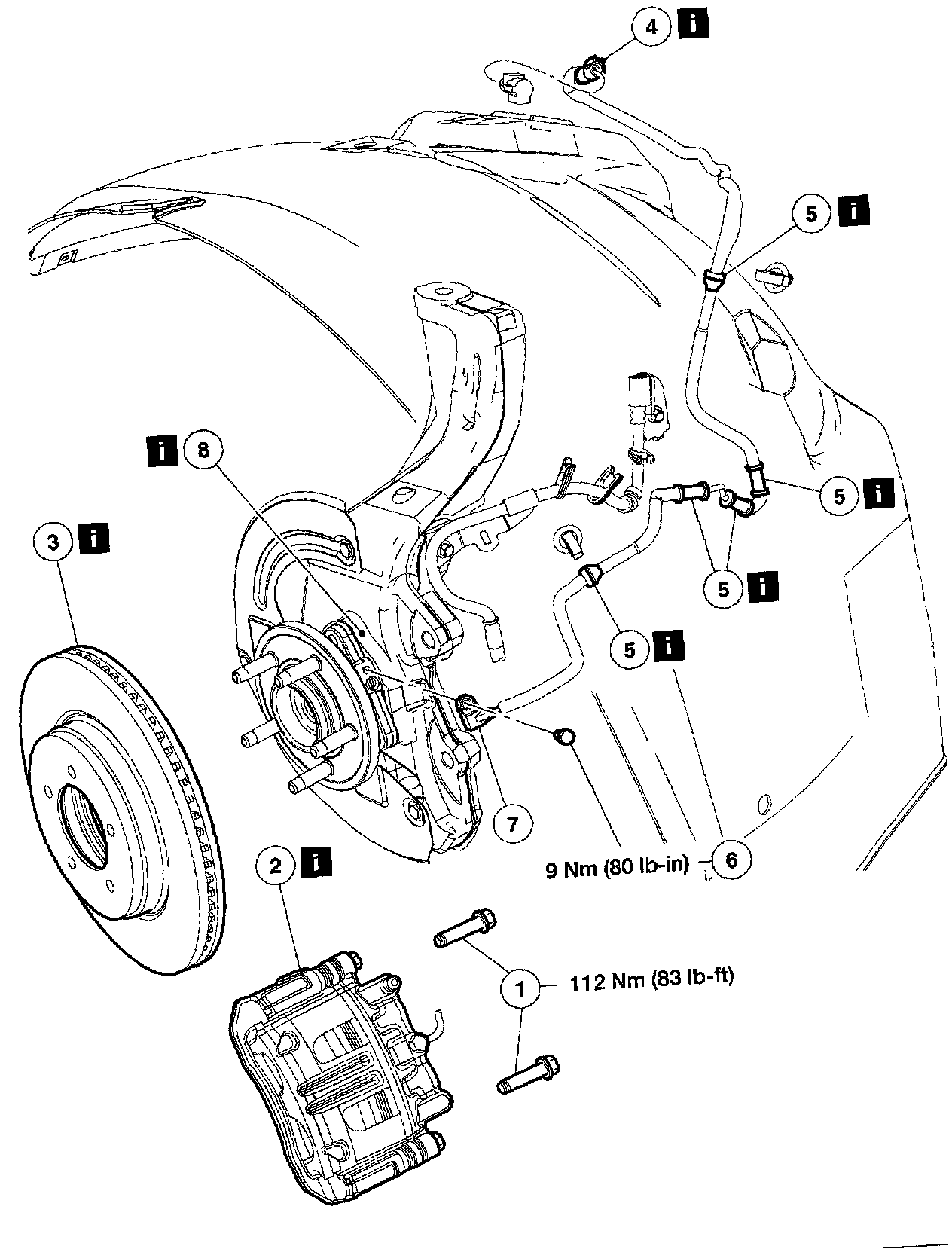

3. Remove the components in the order indicated in the illustration and table.
4. To install, reverse the removal procedure.

Item 2: Front Disc Brake Caliper Anchor Plate, Caliper, and Pads Removal Note

1. CAUTION: When removing the front disc brake components, never allow them to hang from the brake hose.

Using mechanic's wire, secure the front brake components.

Item 3: Front Disc Removal Note
1. Match mark the front disc and front wheel hub flange before removing the front disc.

Item 4: Harness Connector Removal Note

1. NOTE: The harness connector is located in the engine compartment secured to the fender apron.

Lower the vehicle.

Item 5: Harness Retainers Removal Note
1. Raise the vehicle on a hoist.

Item 8: Sensor Ring Removal Note
1. The sensor ring is integral to the front wheel hub and bearing assembly and cannot be serviced.
