Test C

PINPOINT TEST C: PINPOINT TEST C: THE ADJUSTABLE PEDAL MEMORY FUNCTION DOES NOT OPERATE - MANUAL SWITCH COMMANDS FUNCTIONAL

Test C1:

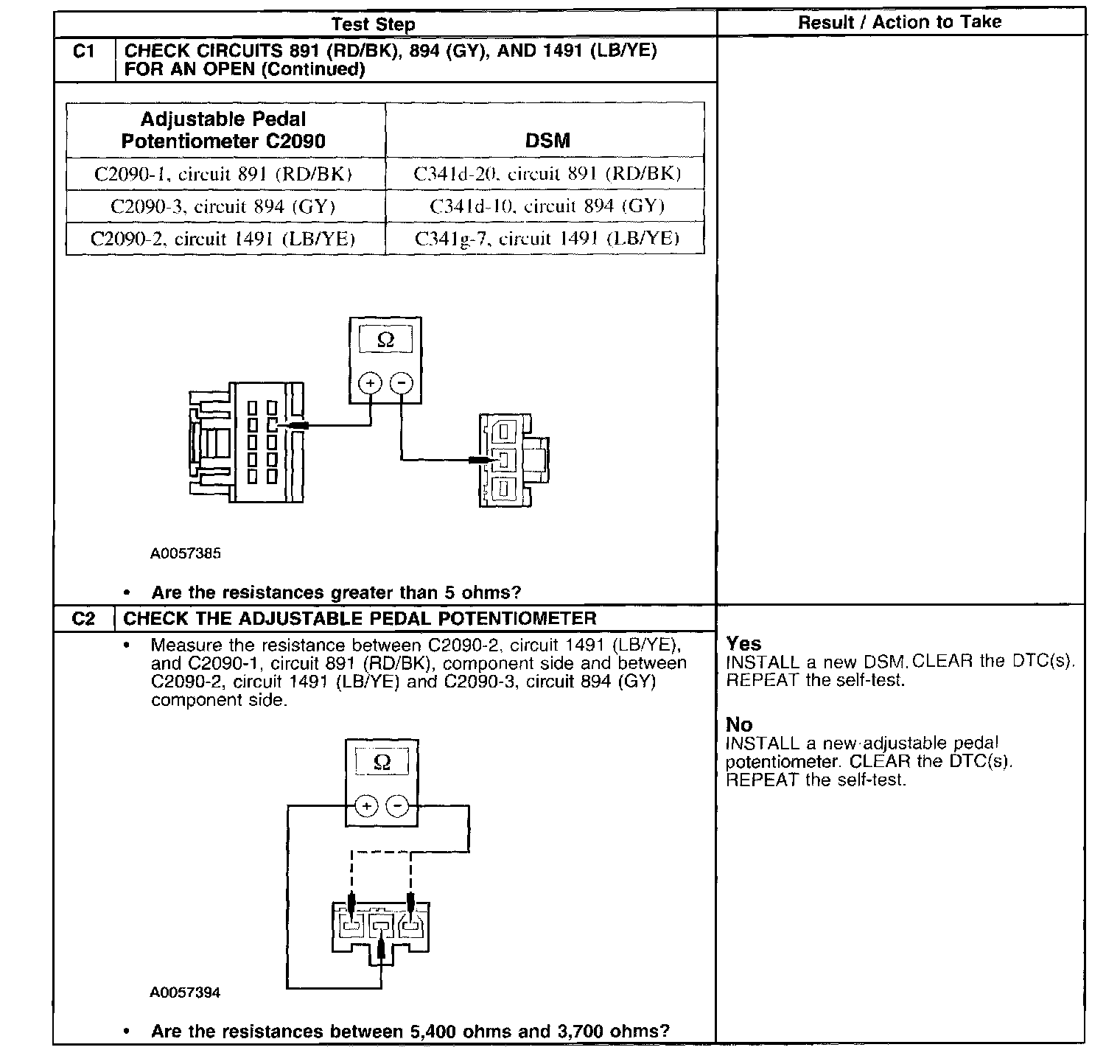

Test C1-C2:

Normal Operation
The adjustable brake and accelerator pedal memory function utilizes a variable resistor as an adjustable pedal potentiometer. The Driver Seat Module (DSM), applies a reference voltage to the potentiometer. The output voltage to the DSM locates a specific pedal position. When the driver sets a pedal position in the DSM, the potentiometer output voltage is stored in memory. When the driver requests a return to a pedal position in memory, the DSM will operate the adjustable pedal motor until the adjustable pedal potentiometer output matches the voltage stored in memory.

Possible Causes
^ Adjustable pedal potentiometer
^ Open in circuits 891 (RD/BK), 894 (GY), or 1491 (LB/YE)
^ Driver Seat Module DSM
