Lower Intake Manifold
Lower Intake Manifold
Special Tool(s)
1. Remove the upper intake manifold.

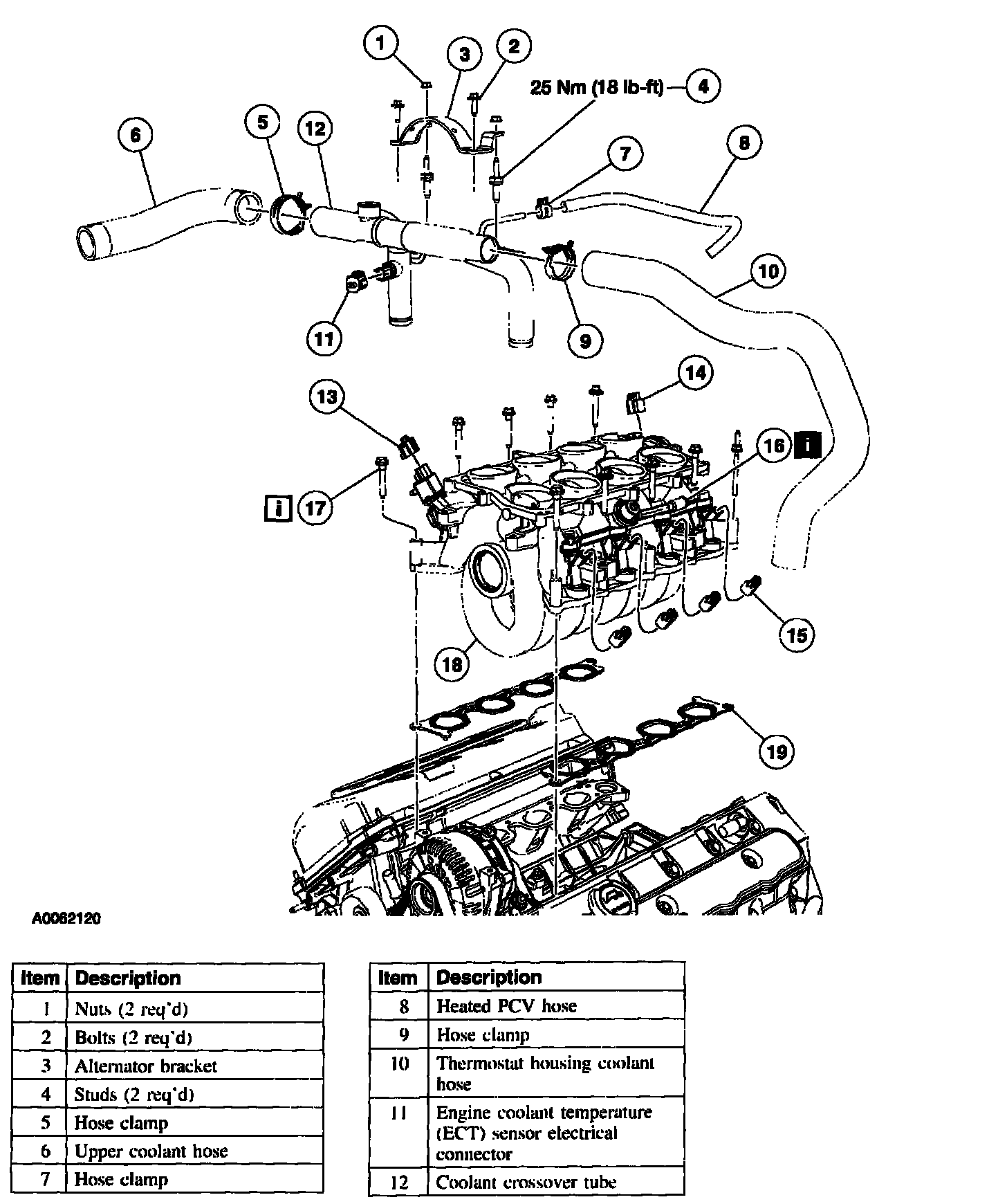

2. Remove the components in the order indicated in the illustration and table.
3. To install, reverse the removal procedure.
Item 16: Fuel Hose Spring Lock Coupling Removal Note
1. Install the special tool.
2. Press the special tool into the open end of the cage.
3. Separate the coupling.
Item 17: Lower Intake Manifold Bolts Installation Note
1. Hand-start all fasteners.
2. Torque all fasteners in the sequence shown in the illustration to 10 Nm (89 inch lbs.).
