Air Duct: Service and Repair

AIR DISTRIBUTION DUCTS

REMOVAL

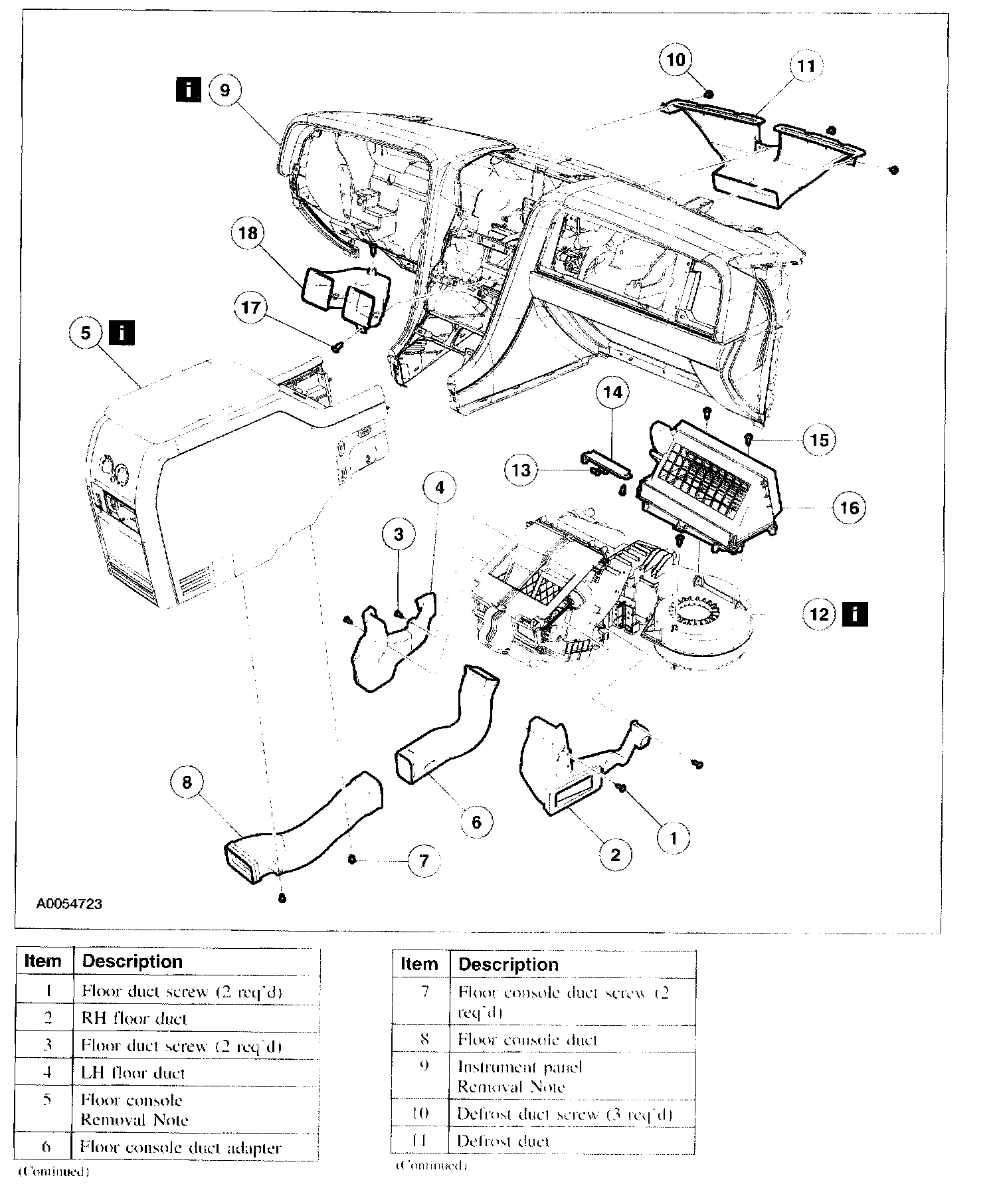

1. Remove the components in the order indicated in the illustration and table. If removing individual components, only carry out the given steps.

Item 5: Floor Console Removal Note
1. Remove the front floor console.

Item 9: Instrument Panel Removal Note
1. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

Item 12: Heater Core and Evaporator Core Housing Removal Note
1. Remove the heater core and evaporator core housing. Refer to: Heating and Air Conditioning, Housing Assembly HVAC, Service and Repair, Service and Repair

INSTALLATION
1. To install, reverse the removal procedure.
