Plenum Chamber
PLENUM CHAMBER, ASSEMBLY AND COMPONENTSREMOVAL 1.
Remove the defroster duct.
2.
Remove the climate control assembly.
3.

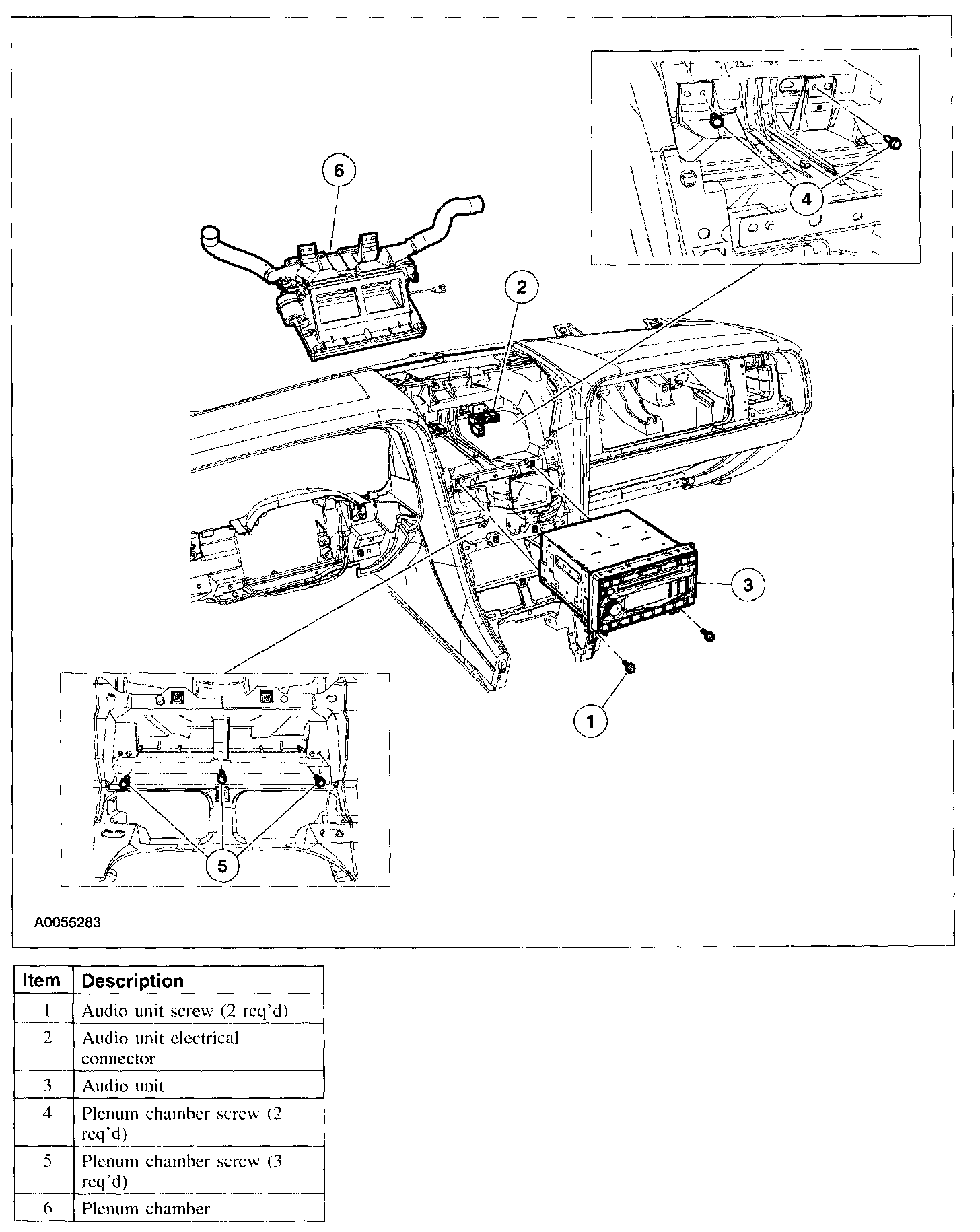

Remove the components in the order indicated in the illustration and table.
INSTALLATION 1.
To install, reverse the removal procedure.
