Positive Crankcase Ventilation: Service and Repair
Positive Crankcase Ventilation (PCV) Valve 1.
Remove the engine cover.
2.

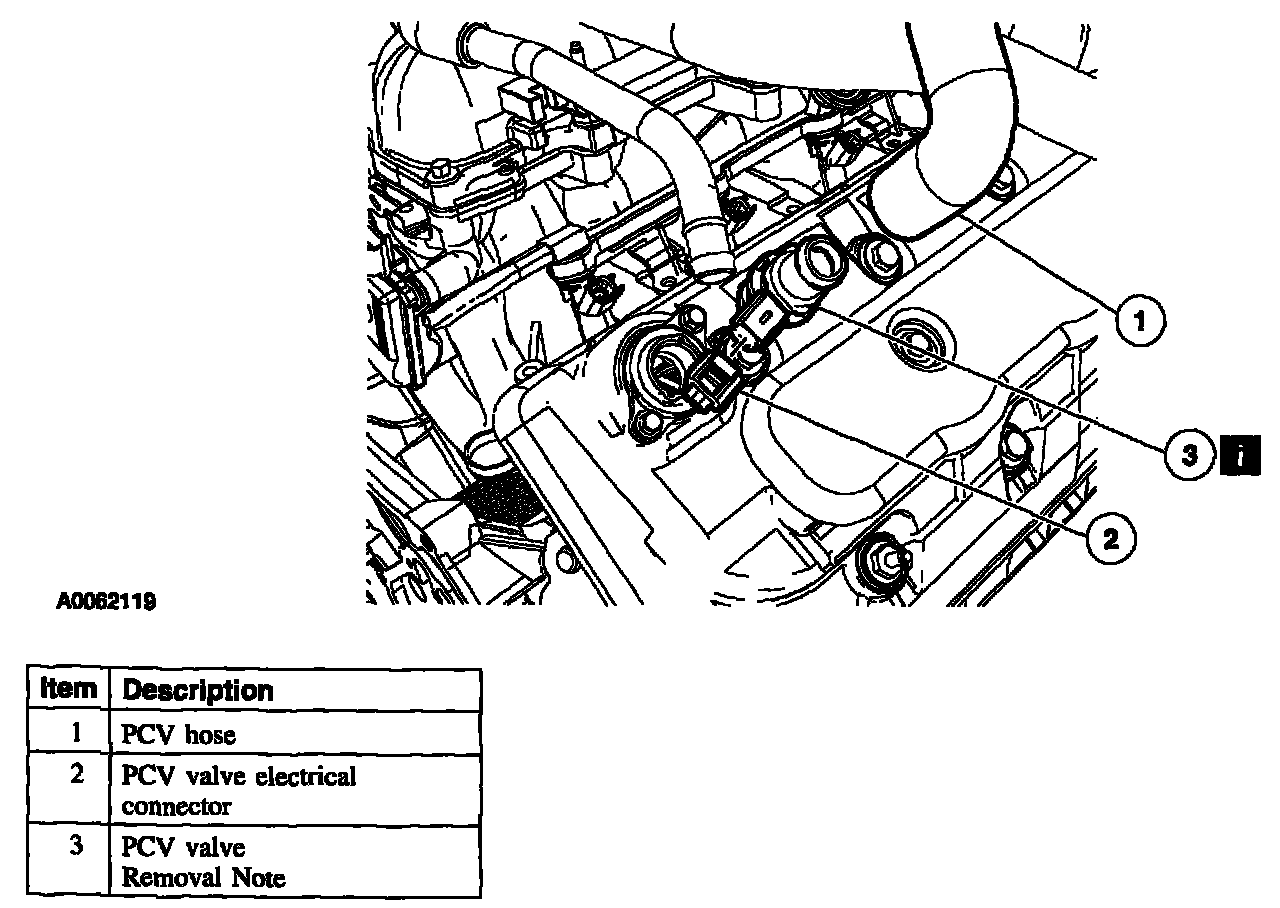

Remove the components in the order indicated in the illustration and table.
3.
To install, reverse the removal procedure.
Item 3: PCV Valve Removal Note 1.
Twist the PCV valve counterclockwise to remove from valve cover.
