Removal and Installation

BATTERY

REMOVAL
1. Disconnect the battery.

2. To remove individual components, only carry out the listed steps.

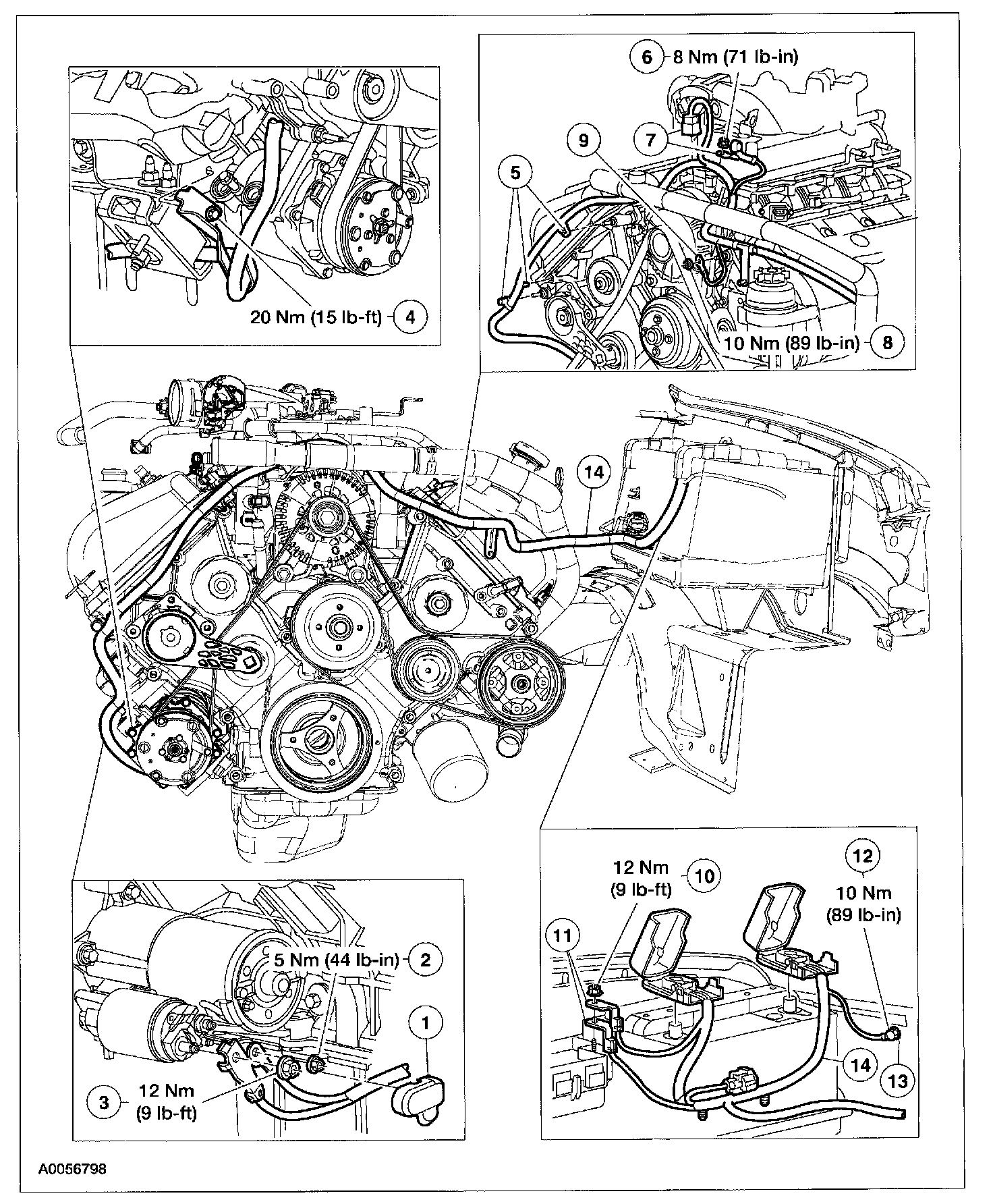

Illustration 1 Of 2, Part 1:

Illustration 1 Of 2, Part 2:

3. View 1 of 2. Remove the components in the order indicated in the illustration and table.

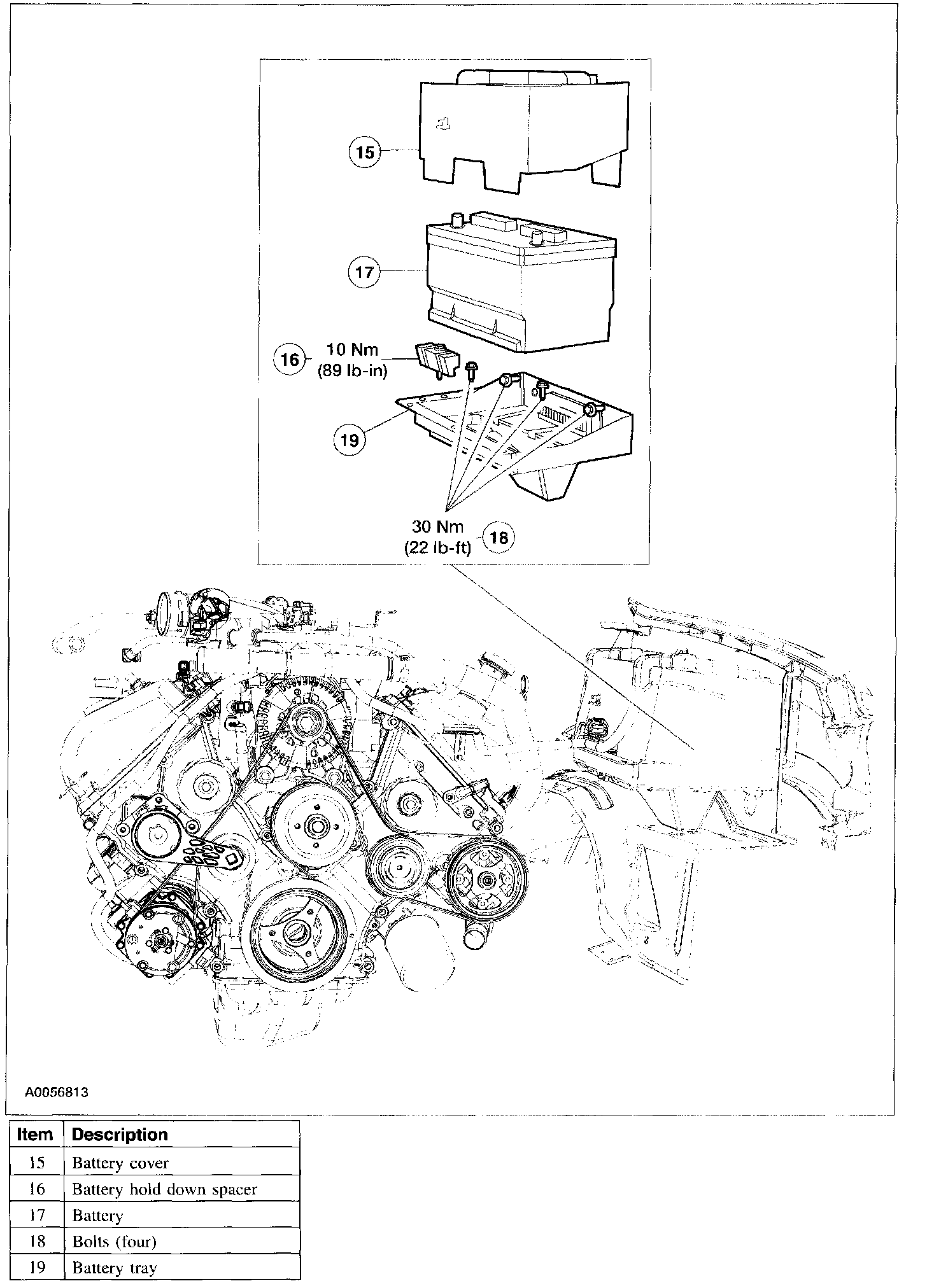

Illustration 2 Of 2:

4. View 2 of 2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
