Extension Housing: Service and Repair
Extension Housing Gasket - 4x21. Remove the driveshaft.
2. Support the transmission with a suitable jack.
3. Remove the rear transmission support insulator.

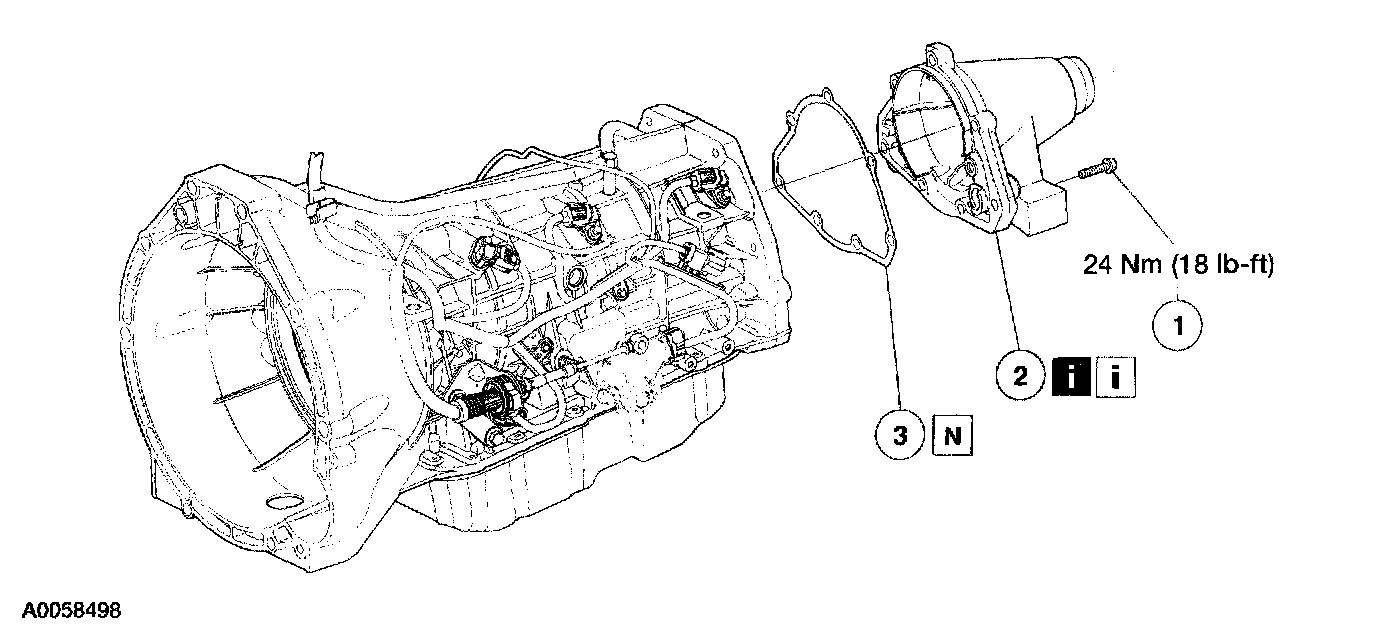

4. Remove the components in the order indicated in the following illustration and table.
Part 1 Of 2:
Part 2 Of 2:
5. To install, reverse the removal procedure.
6. Carry out fluid level check.
Item 2: Extension Housing Removal Note
1. CAUTION: The parking pawl, parking pawl return spring and parking pawl shaft could fall out during removal of the extension housing.
Remove the extension housing.
Item 2: Extension Housing Installation Note
1. CAUTION: Make sure the parking lever actuating rod is correctly seated into the case parking rod guide cup.
Install the extension housing.
