Shift Cable: Service and Repair
Transmission Selector Cable 1.
With the vehicle in PARK, position on a hoist.
2.

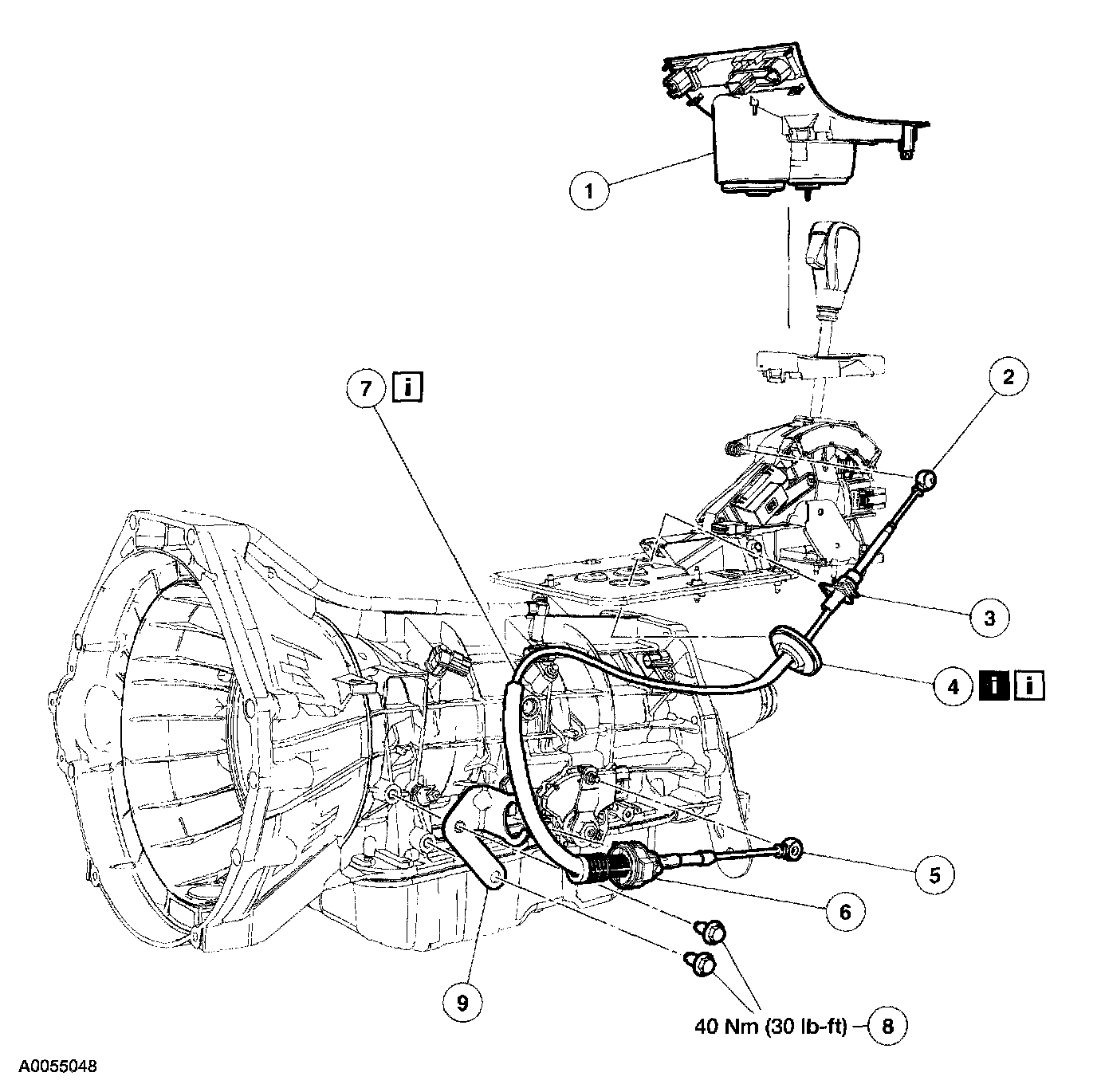

Remove the components in the order indicated in the following illustration and table.
Part 1 Of 4:
Part 2 Of 4:
Part 3 Of 4:
Part 4 Of 4:
3.
To install, reverse the removal procedure.
Item 4: Transmission Selector Lever Cable Grommet Removal Note 1.
Push the cable grommet through the floor pan.
